DCPSR2

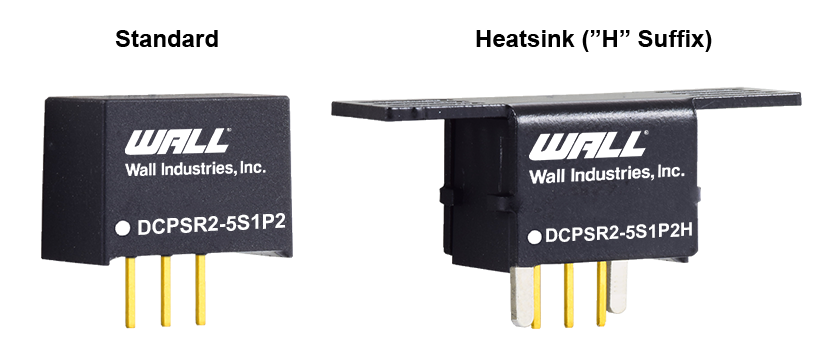

The DCPSR2 series of non-isolated DC/DC converters offers up to 30 watts of output power in an ultra-compact package with an optional heatsink. This series consists of single output models with wide input voltage ranges and low standby power. Each model in this series has over load, short circuit, and over temperature protection, is RoHS & REACH compliant, and has UL60950-1, EN60950-1, and IEC60950-1 safety approvals.
• 3.0~5.5VDC & 4.6~36VDC Wide Input Ranges
• RoHS & REACH Compliant
• Small Size and Low Profile
• No Minimum Load Required
• Low Standby Power
• CE Marked
• Optional Heatsink for Cooling
• Pin Out Compatible with LM78XX Linear Regulators
• Over Load, Short Circuit, and Over Temperature Protection
• UL60950-1, EN60950-1, and IEC60950-1 Safety Approvals
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DCPSR2-5S1P2 | Input Voltage: 5 | Output Voltage: 1.2 | Output Current: 2A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 0.55" x 0.3" x 0.4" | Get a Quote |
| DCPSR2-5S1P5 | Input Voltage: 5 | Output Voltage: 1.5 | Output Current: 2A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 0.55" x 0.3" x 0.4" | Get a Quote |
| DCPSR2-5S1P8 | Input Voltage: 5 | Output Voltage: 1.8 | Output Current: 2A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 0.55" x 0.3" x 0.4" | Get a Quote |
| DCPSR2-5S2P5 | Input Voltage: 5 | Output Voltage: 2.5 | Output Current: 2A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 0.55" x 0.3" x 0.4" | Get a Quote |
| DCPSR2-12S1P2 | Input Voltage: 12 | Output Voltage: 1.2 | Output Current: 2A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 0.55" x 0.3" x 0.4" | Get a Quote |
| DCPSR2-12S1P5 | Input Voltage: 12 | Output Voltage: 1.5 | Output Current: 2A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 0.55" x 0.3" x 0.4" | Get a Quote |
| DCPSR2-12S1P8 | Input Voltage: 12 | Output Voltage: 1.8 | Output Current: 2A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 0.55" x 0.3" x 0.4" | Get a Quote |
| DCPSR2-12S2P5 | Input Voltage: 12 | Output Voltage: 2.5 | Output Current: 2A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 0.55" x 0.3" x 0.4" | Get a Quote |
| DCPSR2-12S3P3 | Input Voltage: 12 | Output Voltage: 3.3 | Output Current: 2A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 0.55" x 0.3" x 0.4" | Get a Quote |
| DCPSR2-12S5 | Input Voltage: 12 | Output Voltage: 5 | Output Current: 2A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 0.55" x 0.3" x 0.4" | Get a Quote |
| DCPSR2-12S6P5 | Input Voltage: 12 | Output Voltage: 6.5 | Output Current: 2A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 0.55" x 0.3" x 0.4" | Get a Quote |
| DCPSR2-24S9 | Input Voltage: 24 | Output Voltage: 9 | Output Current: 2A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 0.55" x 0.3" x 0.4" | Get a Quote |
| DCPSR2-24S12 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 2A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 0.55" x 0.3" x 0.4" | Get a Quote |
| DCPSR2-24S15 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 2A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 0.55" x 0.3" x 0.4" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 5, 12, 24 |
| Input Voltage Range: | 3.0~5.5, 3.8~5.5, 4.6~36, 4.75~36, 6.5~36, 9.0~36, 12~36, 15~36, 18~36 |
| Input Filter: | Capacitor Type |
| Output | |
| Output Voltage: | 1.2, 1.5, 1.8, 2.5, 3.3, 5, 6.5, 9, 12, 15 |
| Voltage Accuracy: | ±2% |
| Output Current: | 2A |
| Output Power (Watts): | 30 |
| Short Circuit Protection: | Continuous, Automatic Recovery |
| Thermal Protection: | 150ºC |
| General | |
| Efficiency: | Up to 96% |
| Environmental | |
| Operating Temperature: | -40 to +100ºC |
| Storage Temperature: | -55 to +125ºC |
| Physical | |
| Weight: | 0.092oz (2.6g) |
| Dimensions: | 0.55in x 0.30in x 0.40in (14mm x 7.5mm x 10.1mm) |
| Case Material: | Non-Conductive Black Plastic |
| Notes & safety | |
| Notes: | 1. Heatsink is available for all models. To indicate heatsink option add “H” to the end of model number. Ex DCPSR2-5S1P2H -Due to high output power of DCPSR2-24SXX heatsink is able to be operated at least 50ºC ambient temperature without derating when applied input voltage does not exceed 30V. Other models can meet this condition without heatsink. Heatsink can be installed for higher operating ambient temperature as well. For more information, please contact factory. 2. For DCPSR2-12SXX and DCPSR3-24SXX the input should install an external 22µF/50V E/C only if the input will be switched electromechanically. 3. This product is Listed to applicable standards and requirements by UL. CAUTION: This power module is not internally fused. An input fuse must always be used. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL60950-1, EN60950-1, IEC60905-1 |
| RoHS Compliance: | Yes |
