DCNSR
The DCNSR series consists of high performance non-isolated DC/DC converters that can deliver 1A of output current in a small 0.46” x 0.40” x 0.30” 3-Pin SIP package. This series features a wide operating temperature range of -40°C to +100°C, efficiency up to 95.5%, and low ripple and noise. These converters are also protected against over current, over temperature, and short circuit conditions. These converters can also be used to convert a positive voltage into a negative voltage. The DCNSR series is RoHS and REACH compliant and has IEC/EN/UL62368-1 safety approvals. These converters are suitable for use in automation, datacom, telecom, IPC, industrial, and measurement applications. The DCNSR series also has two pin types available.
Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
---|---|---|---|---|---|---|---|---|
DCNSR-12S1.5 | Input Voltage: 12 | Output Voltage: -1.5 | Output Current: -0.6A | Output Power (W): 0.9 | No. Outputs: S | Case: Through Hole | Size: 0.46" x 0.4" x 0.3" | Get a Quote |
DCNSR-12S1.8 | Input Voltage: 12 | Output Voltage: -1.8 | Output Current: -0.6A | Output Power (W): 1.1 | No. Outputs: S | Case: Through Hole | Size: 0.46" x 0.4" x 0.3" | Get a Quote |
DCNSR-12S1.2 | Input Voltage: 12 | Output Voltage: -1.2 | Output Current: -0.6A | Output Power (W): 1.2 | No. Outputs: S | Case: Through Hole | Size: 0.46" x 0.40" x 0.30" | Get a Quote |
DCNSR-12S2.5 | Input Voltage: 12 | Output Voltage: -2.5 | Output Current: -0.6A | Output Power (W): 1.5 | No. Outputs: S | Case: Through Hole | Size: 0.46" x 0.4" x 0.3" | Get a Quote |
DCNSR-12S3.0 | Input Voltage: 12 | Output Voltage: -3.0 | Output Current: -0.6A | Output Power (W): 1.8 | No. Outputs: S | Case: Through Hole | Size: 0.46" x 0.4" x 0.3" | Get a Quote |
DCNSR-12S6.5 | Input Voltage: 12 | Output Voltage: -6.5 | Output Current: -0.3A | Output Power (W): 1.95 | No. Outputs: S | Case: Through Hole | Size: 0.46" x 0.4" x 0.3" | Get a Quote |
DCNSR-12S3.3 | Input Voltage: 12 | Output Voltage: -3.3 | Output Current: -0.6A | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.46" x 0.4" x 0.3" | Get a Quote |
DCNSR-12S05 | Input Voltage: 12 | Output Voltage: -5 | Output Current: -0.4A | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.46" x 0.4" x 0.3" | Get a Quote |
DCNSR-12S09 | Input Voltage: 12 | Output Voltage: -9 | Output Current: -0.3A | Output Power (W): 2.7 | No. Outputs: S | Case: Through Hole | Size: 0.46" x 0.4" x 0.3" | Get a Quote |
DCNSR-24S15 | Input Voltage: 12 | Output Voltage: -15 | Output Current: -0.2A | Output Power (W): 3 | No. Outputs: S | Case: Through Hole | Size: 0.46" x 0.4" x 0.3" | Get a Quote |
DCNSR-24S12 | Input Voltage: 12 | Output Voltage: -12 | Output Current: -0.3A | Output Power (W): 3.6 | No. Outputs: S | Case: Through Hole | Size: 0.46" x 0.4" x 0.3" | Get a Quote |
Specification | Value |
---|---|
Input | |
Input Voltage (Nominal): | 12/24 |
Input Voltage Range: | 10.5-36, 13.5-36, 16.5-36, 4.6-31, 4.6-32, 4.6-36, 6.5-36, 7-21, 7-24, 7-27, 7-29, 8-36 |
Input Filter: | C Filter |
Input Frequency: | 0 Hz |
Output | |
Output Voltage: | 1.2, 1.5, 1.8, 2.5, 3.0, 3.3, 5, 6.5, 9, 12, 15 |
Voltage Accuracy: | ±2.0% |
Output Current: | 1A |
Output Power (Watts): | 1.2, 1.5, 1.8, 2.5, 3, 3.3, 5, 6.5, 9, 12, 15 |
Short Circuit Protection: | Continuous, Automatic Recovery |
Thermal Protection: | Yes |
General | |
Efficiency: | Up to 95.5% |
Environmental | |

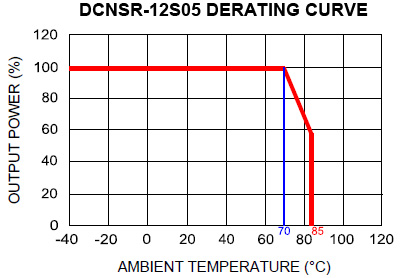

Operating Temperature: | -40 to 100°C |
Storage Temperature: | -55 to 125°C |
Physical | |
Weight: | 0.07 oz |

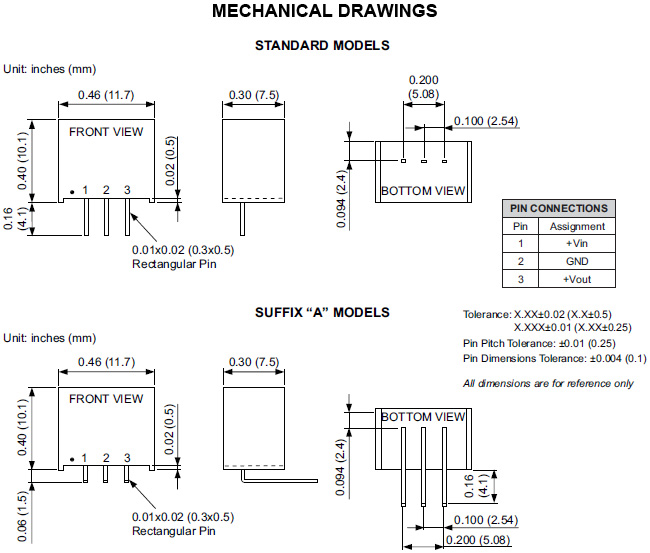

Dimensions: | 0.46 x 0.40 x 0.30 |
Case Material: | Non-conductive black plastic |
Notes & safety | |
Notes: | 1. This product is Listed to applicable standards and requirements by UL. *Due to advances in technology, specifications are subject to change without notice. |
Safety Approvals: | IEC/EN/UL62368-1 |
RoHS Compliance: | Yes |
