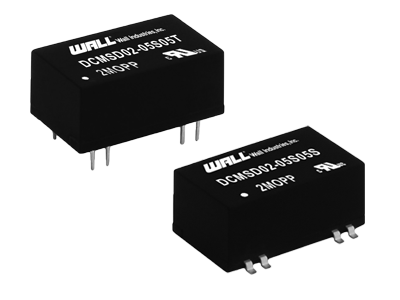

DCMSD02
The DCMSD02 series of medical DC/DC converters offers up to 2.01 watts of output power in a compact DIP or SMD package. This series consists of both single and dual output models with a 2:1 input voltage range. Features of this series include low leakage current, remote on/off, and 5000VAC reinforced insulation. The DCMSD02 series has protection against over voltage and short circuit conditions as well as IEC/EN/ANSI/AAMI ES 60601-1 and IEC/EN/UL 60950-1, 62368-1 safety approvals.
• 2:1 Input Voltage Range
• Low Leakage Current
• Through Hole or Surface Mount Package
• 5000VAC Reinforced Insulation
• RoHS & REACH Compliant
• Over Voltage and Short Circuit Protection
• Remote On/Off
• 2xMOPP
• IEC/EN/ANSI/AAMI ES 60601-1 and IEC/EN/UL 60950-1, 62368-1 Safety Approvals
Part Number Setup:
X: “T” for DIP package, “S” for SMD package.
X: “T” for DIP package, “S” for SMD package.
Example:
DCMSD02-05S03T = 5Vin, 3.3VDC Out, DIP Package
DCMSD02-05S03T = 5Vin, 3.3VDC Out, DIP Package
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DCMSD02-05S03x | Input Voltage: 5 | Output Voltage: 3.3 | Output Current: 600mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole, Surface Mount | Size: 0.95" x 0.57~0.71" x 0.4" | Get a Quote |
| DCMSD02-05S05x | Input Voltage: 5 | Output Voltage: 5 | Output Current: 400mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole, Surface Mount | Size: 0.95" x 0.57~0.71" x 0.4" | Get a Quote |
| DCMSD02-05S09x | Input Voltage: 5 | Output Voltage: 9 | Output Current: 222mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole, Surface Mount | Size: 0.95" x 0.57~0.71" x 0.4" | Get a Quote |
| DCMSD02-05S12x | Input Voltage: 5 | Output Voltage: 12 | Output Current: 167mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole, Surface Mount | Size: 0.95" x 0.57~0.71" x 0.4" | Get a Quote |
| DCMSD02-05S15X | Input Voltage: 5 | Output Voltage: 15 | Output Current: 134mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole, Surface Mount | Size: 0.95" x 0.57~0.71" x 0.4" | Get a Quote |
| DCMSD02-05S24x | Input Voltage: 5 | Output Voltage: 24 | Output Current: 83mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole, Surface Mount | Size: 0.95" x 0.57~0.71" x 0.4" | Get a Quote |
| DCMSD02-12S03x | Input Voltage: 12 | Output Voltage: 3.3 | Output Current: 600mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole, Surface Mount | Size: 0.95" x 0.57~0.71" x 0.4" | Get a Quote |
| DCMSD02-12S05x | Input Voltage: 12 | Output Voltage: 5 | Output Current: 400mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole, Surface Mount | Size: 0.95" x 0.57~0.71" x 0.4" | Get a Quote |
| DCMSD02-12S15x | Input Voltage: 12 | Output Voltage: 15 | Output Current: 134mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole, Surface Mount | Size: 0.95" x 0.57~0.71" x 0.4" | Get a Quote |
| DCMSD02-12S24x | Input Voltage: 12 | Output Voltage: 24 | Output Current: 83mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole, Surface Mount | Size: 0.95" x 0.57~0.71" x 0.4" | Get a Quote |
| DCMSD02-24S03x | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 600mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole, Surface Mount | Size: 0.95" x 0.57~0.71" x 0.4" | Get a Quote |
| DCMSD02-24S05x | Input Voltage: 24 | Output Voltage: 5 | Output Current: 400mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole, Surface Mount | Size: 0.95" x 0.57~0.71" x 0.4" | Get a Quote |
| DCMSD02-12S09x | Input Voltage: 12 | Output Voltage: 9 | Output Current: 222mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole, Surface Mount | Size: 0.95" x 0.57~0.71" x 0.4" | Get a Quote |
| DCMSD02-24S12 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 167mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole, Surface Mount | Size: 0.95" x 0.57~0.71" x 0.4" | Get a Quote |
| DCMSD02-24S15x | Input Voltage: 24 | Output Voltage: 15 | Output Current: 134mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole, Surface Mount | Size: 0.95" x 0.57~0.71" x 0.4" | Get a Quote |
| DCMSD02-24S24x | Input Voltage: 24 | Output Voltage: 24 | Output Current: 83mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole, Surface Mount | Size: 0.95" x 0.57~0.71" x 0.4" | Get a Quote |
| DCMSD02-48S03x | Input Voltage: 48 | Output Voltage: 3.3 | Output Current: 600mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole, Surface Mount | Size: 0.95" x 0.57~0.71" x 0.4" | Get a Quote |
| DCMSD02-48S05x | Input Voltage: 48 | Output Voltage: 5 | Output Current: 400mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole, Surface Mount | Size: 0.95" x 0.57~0.71" x 0.4" | Get a Quote |
| DCMSD02-48S09x | Input Voltage: 48 | Output Voltage: 9 | Output Current: 222mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole, Surface Mount | Size: 0.95" x 0.57~0.71" x 0.4" | Get a Quote |
| DCMSD02-48S12x | Input Voltage: 48 | Output Voltage: 12 | Output Current: 167mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole, Surface Mount | Size: 0.95" x 0.57~0.71" x 0.4" | Get a Quote |
| DCMSD02-48S15x | Input Voltage: 48 | Output Voltage: 15 | Output Current: 134mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole, Surface Mount | Size: 0.95" x 0.57~0.71" x 0.4" | Get a Quote |
| DCMSD02-48S24x | Input Voltage: 48 | Output Voltage: 24 | Output Current: 83mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole, Surface Mount | Size: 0.95" x 0.57~0.71" x 0.4" | Get a Quote |
| DCMSD02-05D12x | Input Voltage: 5 | Output Voltage: 12, -12 | Output Current: ±83mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole, Surface Mount | Size: 0.95" x 0.57~0.71" x 0.4" | Get a Quote |
| DCMSD02-05D15x | Input Voltage: 5 | Output Voltage: 15, -15 | Output Current: ±67mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole, Surface Mount | Size: 0.95" x 0.57~0.71" x 0.4" | Get a Quote |
| DCMSD02-12D12x | Input Voltage: 12 | Output Voltage: 12, -12 | Output Current: ±83mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole, Surface Mount | Size: 0.95" x 0.57~0.71" x 0.4" | Get a Quote |
| DCMSD02-12D15x | Input Voltage: 12 | Output Voltage: 15, -15 | Output Current: ±67mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole, Surface Mount | Size: 0.95" x 0.57~0.71" x 0.4" | Get a Quote |
| DCMSD02-24D12x | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±83mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole, Surface Mount | Size: 0.95" x 0.57~0.71" x 0.4" | Get a Quote |
| DCMSD02-24D15x | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±67mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole, Surface Mount | Size: 0.95" x 0.57~0.71" x 0.4" | Get a Quote |
| DCMSD02-48D12x | Input Voltage: 48 | Output Voltage: 12, -12 | Output Current: ±83mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole, Surface Mount | Size: 0.95" x 0.57~0.71" x 0.4" | Get a Quote |
| DCMSD02-48D15x | Input Voltage: 48 | Output Voltage: 15, -15 | Output Current: ±67mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole, Surface Mount | Size: 0.95" x 0.57~0.71" x 0.4" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 5, 12, 24, 48 |
| Input Voltage Range: | 4.2~12, 9~18, 18~36, 36~75 |
| Input Filter: | Capacitor Type |
| Remote ON/OFF: | Yes |
| Output | |
| Output Voltage: | -15, -12, 3.3, 5, 9, 12, 15, 24 |
| Voltage Accuracy: | ±1.0% |
| Output Current: | ±67mA, ±83mA, 83mA, 134mA, 167mA, 222mA, 400mA, 600mA |
| Output Power (Watts): | 2 |
| Short Circuit Protection: | Continuous, Automatic Recovery |
| Over Voltage Protection: | Yes |
| General | |
| Efficiency: | Up to 82% |
| Isolation: | 5000VAC |
| Environmental | |
| Operating Temperature: | -40 to 105°C |
| Storage Temperature: | -55 to 125°C |
| Physical | |
| Weight: | 0.24oz (7.0g) |

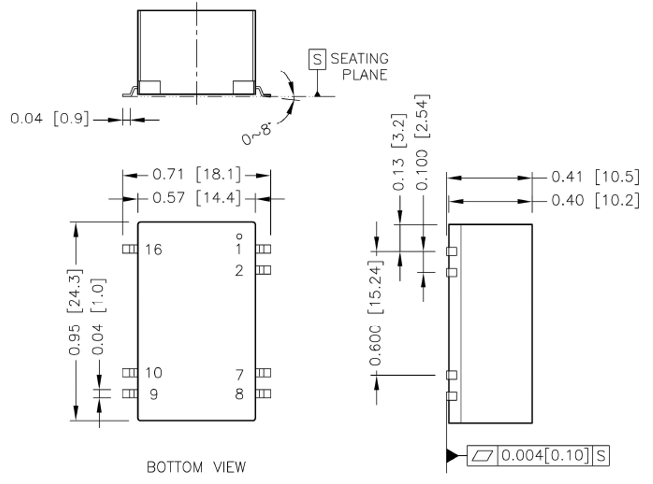

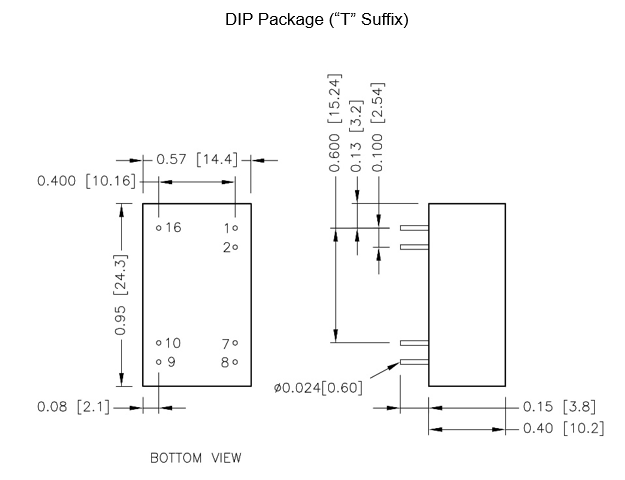

| Dimensions: | DIP Package: 0.95in x 0.57in x 0.40in (24.3mm x 14.4mm x 10.2mm) SMD Package: 0.95in x 0.71in x 0.41in (24.3mm x 18.1mm x 10.5mm) |
| Case Material: | Non-Conductive Black Plastic |
| Notes & safety | |
| Notes: | 1. “X” in model number stands for case type. “X” can either be “T” for DIP package, or “S” for SMD package. 2. This product is listed to applicable standards and requirements by UL. CAUTION: This power module is not internally fused. An input line fuse must always be used. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | IEC/EN/ANSI/AAMI ES 60601-1, IEC/EN/UL 62368-1 |
| RoHS Compliance: | Yes |
