DCMSAU2

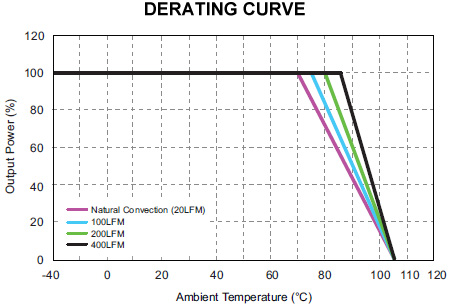

The DCMSAU2 series of DC/DC converters provides 2 Watts of output power in a miniature SMT package. These converters operate over input voltage ranges of 4.5~5.5VDC, 10.8~13.2VDC, and 21.6~26.4VDC. This series also has single and dual output voltages of 5V, 12V, ±5V, ±12V, and ±15VDC. The DCMSAU2 series’ impressive efficiencies enable these modules to deliver their fully rated output power from –40°C to +80°C without a heatsink or forced-air cooling. The very small footprint of these converters makes them an ideal solution for many applications where a voltage has to be isolated such as for noise reduction, ground loop elimination in digital interfaces, or where a converted voltage is required. These converters are also fully qualified for the higher temperature profile used in lead-free reflow solder processes. These converters can also be supplied in tape&reel packaging for use in automated SMD production lines.

• Up to 2 Watts Output Power • Single & Dual Outputs • 1000VDC I/O Isolation • High Accuracy of Pin Planarity • MTBF > 2,000,000 Hours • -40°C to +85°C Operating Temperature • SMT Package with Industry Standard Pin-out • Qualified for Lead-free Reflow Solder Processes According to IPC/JEDEC J-STD-020D • Tape & Reel Packaging Available
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
DCMSAU505-2 Input Voltage: 5 Output Voltage: 5 Output Current: 400mA Output Power (W): 2 No. Outputs: S Case: Surface Mount Get a Quote
DCMSAU512-2 Input Voltage: 5 Output Voltage: 12 Output Current: 165mA Output Power (W): 2 No. Outputs: S Case: Surface Mount Get a Quote
DCMSAU1205-2 Input Voltage: 12 Output Voltage: 5 Output Current: 400mA Output Power (W): 2 No. Outputs: S Case: Surface Mount Get a Quote
DCMSAU1212-2 Input Voltage: 12 Output Voltage: 12 Output Current: 165mA Output Power (W): 2 No. Outputs: S Case: Surface Mount Get a Quote
DCMSAU2405-2 Input Voltage: 24 Output Voltage: 5 Output Current: 400mA Output Power (W): 2 No. Outputs: S Case: Surface Mount Get a Quote
DCMSAU2412-2 Input Voltage: 24 Output Voltage: 12 Output Current: 165mA Output Power (W): 2 No. Outputs: S Case: Surface Mount Get a Quote
DCMSAU505D-2 Input Voltage: 5 Output Voltage: 5, -5 Output Current: ±200mA Output Power (W): 2 No. Outputs: D Case: Surface Mount Get a Quote
DCMSAU512D-2 Input Voltage: 5 Output Voltage: 12, -12 Output Current: ±83mA Output Power (W): 2 No. Outputs: D Case: Surface Mount Get a Quote
DCMSAU515D-2 Input Voltage: 5 Output Voltage: 15, -15 Output Current: ±66mA Output Power (W): 2 No. Outputs: D Case: Surface Mount Get a Quote
DCMSAU1212D-2 Input Voltage: 12 Output Voltage: 12, -12 Output Current: ±83mA Output Power (W): 2 No. Outputs: D Case: Surface Mount Get a Quote
DCMSAU1215D-2 Input Voltage: 12 Output Voltage: 15, -15 Output Current: ±66mA Output Power (W): 2 No. Outputs: D Case: Surface Mount Get a Quote
DCMSAU2412D-2 Input Voltage: 24 Output Voltage: 12, -12 Output Current: ±83mA Output Power (W): 2 No. Outputs: D Case: Surface Mount Get a Quote
DCMSAU2415D-2 Input Voltage: 24 Output Voltage: 15, -15 Output Current: ±66mA Output Power (W): 2 No. Outputs: D Case: Surface Mount Get a Quote
Specification Value
Input
Input Voltage (Nominal): 5, 12, 24
Input Voltage Range: 10.8~13.2, 21.6~26.4, 4.5~5.5
Input Filter: Internal Capcitor
Input Frequency: 0 Hz
Output
Output Voltage: 5, 12, ±5, ±12, ±15
Voltage Accuracy: ±1.5% typ.
Output Current: 400mA, 165mA, ±200mA, ±83mA, ±66mA
Output Power (Watts): 2
Short Circuit Protection: 0.5S
General
Efficiency: Up to 82%
Isolation: 1000VDC min. (input to output)
Environmental
Operating Temperature: -40 to 85°C
Storage Temperature: -50 to 125°C
Physical
Weight: 0.05 oz

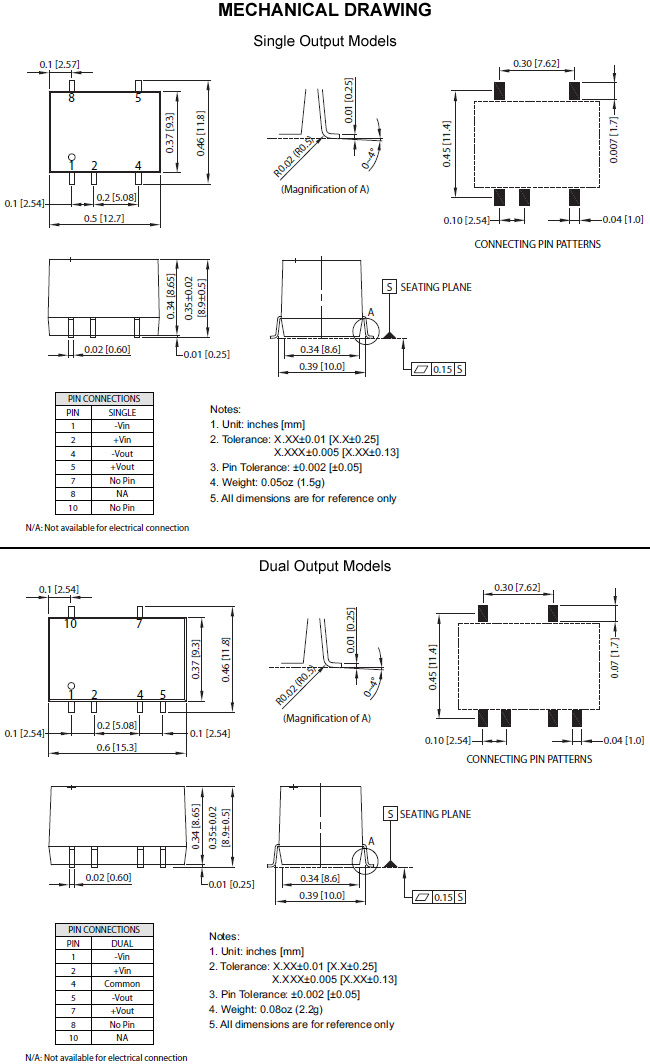

Dimensions: 0.50 x 0.37 x 0.34
Case Material: Molding
Notes & safety
Notes: 1. The DCMSAU2 series requires a minimum output loading to maintain specified regulations. Operation under no-load conditions will not damage these devices; however they may not meet all listed specifications.
2. All DC/DC converters should be externally fused at the front end for protection.
3. Other input and output voltages may be available, please contact factory.
Due to advances in technology, specifications are subject to change without notice.
RoHS Compliance: Yes
