DCMRH20

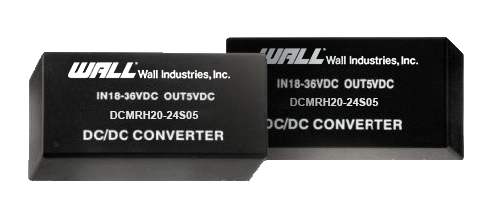

The DCMRH20 series of medical DC/DC converters offers up to 20 watts of output power in a very compact 2” x 1” x 0.47” package. This series consists of fully regulated single and dual output models with a wide 2:1 input voltage range. Each model in this series features low leakage current, no minimum load requirement, I/O isolation of 4200VAC, as well as protection against over load, over voltage, and short circuit conditions. This series is RoHS and REACH compliant and it also has ANSI/AAMI ES60601-1, CAN/CSA-C22.2 No. 60601-1 and IEC/EN 60601-1 3rd edition 2xMOPP safety standards.
• Wide 2:1 Input Voltage Range
• Fully Regulated Output Voltage
• Low Leakage Current
• No Minimum Load Requirement
• I/O Isolation of 4200VAC
• 3 Year Warranty
• RoHS & REACH Compliant
• Over Load, Over Voltage, and Short Circuit Protection
• ANSI/AAMI ES60601-1, CAN/CSA-C22.2 No. 60601-1 and IEC/EN 60601-1 3rd Edition 2xMOPP Safety Standards
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DCMRH20-12S05 | Input Voltage: 12 | Output Voltage: 5 | Output Current: 4000mA | Output Power (W): 20 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.47" | Get a Quote |
| DCMRH20-12S051 | Input Voltage: 12 | Output Voltage: 5.1 | Output Current: 4000mA | Output Power (W): 20 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.47" | Get a Quote |
| DCMRH20-12S12 | Input Voltage: 12 | Output Voltage: 12 | Output Current: 1670mA | Output Power (W): 20 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.47" | Get a Quote |
| DCMRH20-12S15 | Input Voltage: 12 | Output Voltage: 15 | Output Current: 1333mA | Output Power (W): 20 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.47" | Get a Quote |
| DCMRH20-12S24 | Input Voltage: 12 | Output Voltage: 24 | Output Current: 840mA | Output Power (W): 20 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.47" | Get a Quote |
| DCMRH20-24S05 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 4000mA | Output Power (W): 20 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.47" | Get a Quote |
| DCMRH20-24S051 | Input Voltage: 24 | Output Voltage: 5.1 | Output Current: 4000mA | Output Power (W): 20 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.47" | Get a Quote |
| DCMRH20-24S12 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 1670mA | Output Power (W): 20 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.47" | Get a Quote |
| DCMRH20-24S15 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 1333mA | Output Power (W): 20 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.47" | Get a Quote |
| DCMRH20-24S24 | Input Voltage: 24 | Output Voltage: 24 | Output Current: 840mA | Output Power (W): 20 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.47" | Get a Quote |
| DCMRH20-48S05 | Input Voltage: 48 | Output Voltage: 5 | Output Current: 4000mA | Output Power (W): 20 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.47" | Get a Quote |
| DCMRH20-48S051 | Input Voltage: 48 | Output Voltage: 5.1 | Output Current: 4000mA | Output Power (W): 20 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.47" | Get a Quote |
| DCMRH20-48S12 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 1670mA | Output Power (W): 20 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.47" | Get a Quote |
| DCMRH20-48S15 | Input Voltage: 48 | Output Voltage: 15 | Output Current: 1333mA | Output Power (W): 20 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.47" | Get a Quote |
| DCMRH20-48S24 | Input Voltage: 48 | Output Voltage: 24 | Output Current: 840mA | Output Power (W): 20 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.47" | Get a Quote |
| DCMRH20-12D12 | Input Voltage: 12 | Output Voltage: 12, -12 | Output Current: ±840mA | Output Power (W): 20 | No. Outputs: D | Case: Through Hole | Size: 2" x 1" x 0.47" | Get a Quote |
| DCMRH20-12D15 | Input Voltage: 12 | Output Voltage: 15, -15 | Output Current: ±670mA | Output Power (W): 20 | No. Outputs: D | Case: Through Hole | Size: 2" x 1" x 0.47" | Get a Quote |
| DCMRH20-24D12 | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±840mA | Output Power (W): 20 | No. Outputs: D | Case: Through Hole | Size: 2" x 1" x 0.47" | Get a Quote |
| DCMRH20-24D15 | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±670mA | Output Power (W): 20 | No. Outputs: D | Case: Through Hole | Size: 2" x 1" x 0.47" | Get a Quote |
| DCMRH20-48D12 | Input Voltage: 48 | Output Voltage: 12, -12 | Output Current: ±840mA | Output Power (W): 20 | No. Outputs: D | Case: Through Hole | Size: 2" x 1" x 0.47" | Get a Quote |
| DCMRH20-48D15 | Input Voltage: 48 | Output Voltage: 15, -15 | Output Current: ±670mA | Output Power (W): 20 | No. Outputs: D | Case: Through Hole | Size: 2" x 1" x 0.47" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 12, 24, 48 |
| Input Voltage Range: | 9~18, 18~36, 36~75 |
| Input Filter: | Internal Pi Type |
| UVLO: | 12VDC Nominal Input Voltage Models: 7.5VDC 24VDC Nominal Input Voltage Models: 15VDC 48VDC Nominal Input Voltage Models: 33VDC |
| Output | |
| Output Voltage: | 5, 5.1, 12, 15, 24, ±12, ±15 |
| Voltage Accuracy: | ±0.5% |
| Output Current: | 840mA, 1333mA, 1670mA, 4000mA, ±670mA, ±840mA |
| Output Power (Watts): | 20 |
| Short Circuit Protection: | Hiccup Mode 0.7Hz typ., Automatic Recovery |
| Over Voltage Protection: | 5VDC & 5.1VDC Output Models: 6.2VDC 12VDC Output Models: 15VDC 15VDC Output Models: 18VDC 24VDC Output Models: 27VDC ±12VDC Output Models: ±15VDC ±15VDC Output Models: ±18VDC |
| General | |
| Efficiency: | Up to 90% |
| Isolation: | 60 Seconds, Reinforced Isolation, Rated for 300Vrms Working Voltage: 4200VACrms |
| Environmental | |
| Operating Temperature: | See Data Sheet |
| Storage Temperature: | -50 to +125ºC |
| Physical | |
| Weight: | 1.06oz (30g) |

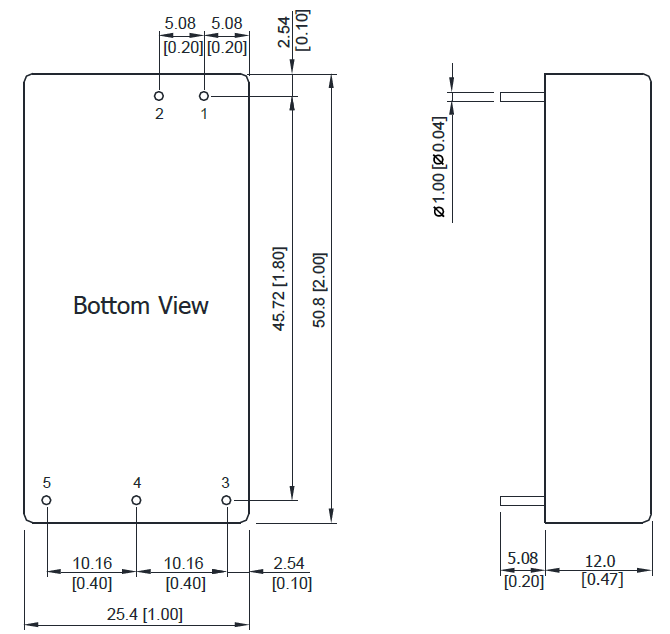

| Dimensions: | 2in x 1in x 0.47in (50.8mm x 25.4mm x 12mm) |
| Case Material: | Non-Conductive Black Plastic (Flammability to UL 94V-0 rated) |
| Notes & safety | |
| Notes: | 1. To meet EN61000-4-4 & EN61000-4-5 an external capacitor across the input pins is required. Suggested capacitor: 330µF/100V. 2. It is recommended to protect the converter by a slow blow fuse in the input supply line. 3. Other inputs and outputs may be available, please contact factory. 7. This product is Listed to applicable standards and requirements by UL. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | ANSI/AAMI ES60601-1, CAN/CSA-C22.2 No. 60601-1, IEC/EN 60601-1 3rd Edition 2xMOPP |
| RoHS Compliance: | Yes |
