DCMQB60

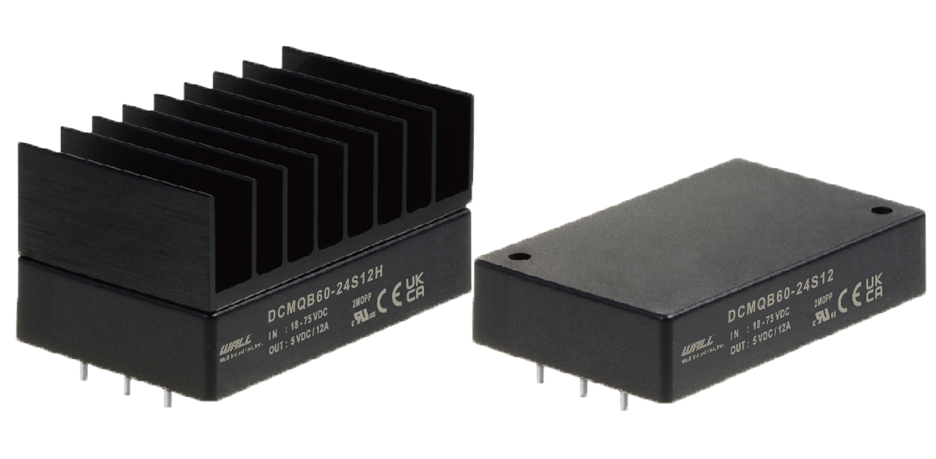

The DCMQB60 series of quarter-brick DC/DC converters offers up to 60 watts of output power in a compact 1.45” x 2.28” x 0.50” package with optional heatsink. This series consists of single and dual output models with a wide 4:1 input voltage range. Each model in this series features low standby power, no minimum load requirement, remote on/off, and 5000VAC reinforced insulation. This series also has over voltage, over load, over temperature, and short circuit protection as well IEC/EN/ANSI/AAMI ES 60601-1 and IEC/EN/UL 62368-1 safety approvals.
• Wide 4:1 Input Voltage Range
• Suitable for Medical and Industrial Applications
• 5000VAC Reinforced Insulation
• No Minimum Load Requirement
• Low Standby Power
• Remote On/Off
• 2xMOPP
• High Efficiency
• Optional Heatsink
• Over Voltage, Over Load, Over Temperature, and Short Circuit Protection
• IEC/EN/ANSI/AAMI ES 60601-1 and IEC/EN/UL 62368-1 Safety Approvals
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DCMQB60-24S05 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 12A | Output Power (W): 60 | No. Outputs: S | Case: Through Hole | Size: 1.45" x 2.28" x 0.50" | Get a Quote |
| DCMQB60-24S51 | Input Voltage: 24 | Output Voltage: 5.1 | Output Current: 12A | Output Power (W): 60 | No. Outputs: S | Case: Through Hole | Size: 1.45" x 2.28" x 0.50" | Get a Quote |
| DCMQB60-24S12 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 5A | Output Power (W): 60 | No. Outputs: S | Case: Through Hole | Size: 1.45" x 2.28" x 0.50" | Get a Quote |
| DCMQB60-24S15 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 4A | Output Power (W): 60 | No. Outputs: S | Case: Through Hole | Size: 1.45" x 2.28" x 0.50" | Get a Quote |
| DCMQB60-24S24 | Input Voltage: 24 | Output Voltage: 24 | Output Current: 2.5A | Output Power (W): 60 | No. Outputs: S | Case: Through Hole | Size: 1.45" x 2.28" x 0.50" | Get a Quote |
| DCMQB60-48S05 | Input Voltage: 48 | Output Voltage: 5 | Output Current: 12A | Output Power (W): 60 | No. Outputs: S | Case: Through Hole | Size: 1.45" x 2.28" x 0.50" | Get a Quote |
| DCMQB60-48S51 | Input Voltage: 48 | Output Voltage: 5.1 | Output Current: 12A | Output Power (W): 60 | No. Outputs: S | Case: Through Hole | Size: 1.45" x 2.28" x 0.50" | Get a Quote |
| DCMQB60-48S12 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 5A | Output Power (W): 60 | No. Outputs: S | Case: Through Hole | Size: 1.45" x 2.28" x 0.50" | Get a Quote |
| DCMQB60-48S15 | Input Voltage: 48 | Output Voltage: 15 | Output Current: 4A | Output Power (W): 60 | No. Outputs: S | Case: Through Hole | Size: 1.45" x 2.28" x 0.50" | Get a Quote |
| DCMQB60-48S24 | Input Voltage: 48 | Output Voltage: 24 | Output Current: 2.5A | Output Power (W): 60 | No. Outputs: S | Case: Through Hole | Size: 1.45" x 2.28" x 0.50" | Get a Quote |
| DCMQB60-24D12 | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±2.5A | Output Power (W): 60 | No. Outputs: D | Case: Through Hole | Size: 1.45" x 2.28" x 0.50" | Get a Quote |
| DCMQB60-24D15 | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±2A | Output Power (W): 60 | No. Outputs: D | Case: Through Hole | Size: 1.45" x 2.28" x 0.50" | Get a Quote |
| DCMQB60-48D12 | Input Voltage: 48 | Output Voltage: 12, -12 | Output Current: ±2.5A | Output Power (W): 60 | No. Outputs: D | Case: Through Hole | Size: 1.45" x 2.28" x 0.50" | Get a Quote |
| DCMQB60-48D15 | Input Voltage: 48 | Output Voltage: 15, -15 | Output Current: ±2A | Output Power (W): 60 | No. Outputs: D | Case: Through Hole | Size: 1.45" x 2.28" x 0.50" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 24, 48 |
| Input Voltage Range: | 9~36, 18~75 |
| Input Filter: | Pi Type |
| Remote ON/OFF: | Yes |
| Output | |
| Output Voltage: | 5, 5.1, 12, 15, 24, ±12VDC, ±15VDC |
| Voltage Accuracy: | ±1% |
| Output Current: | 12A, 12A, 5A, 4A, 2.5A |
| Output Power (Watts): | 60 |
| Output Trim/Adjustability: | 5Vout, 5.1Vout, 12Vout: ±10% 15Vout, 24Vout: -10% to 20% |
| Short Circuit Protection: | Continuous, Automatic Recovery |
| Over Voltage Protection: | See Data Sheet |
| Thermal Protection: | 115ºC |
| General | |
| Efficiency: | Up to 92.5% |
| Isolation: | 5000VAC |
| Environmental | |
| Operating Temperature: | -40 to 105°C |
| Storage Temperature: | -55 to 125°C |
| Physical | |
| Weight: | 1.80oz (51g) |

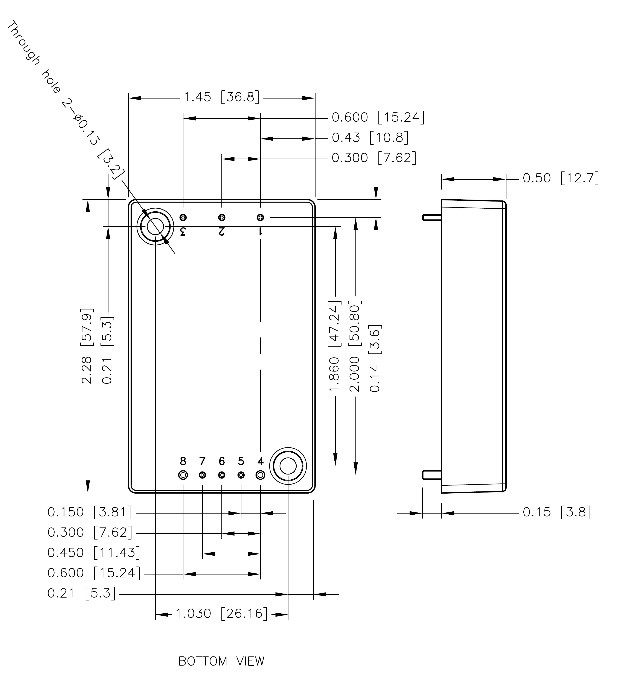

| Dimensions: | Standard Package: 1.45in x 2.28in x 0.50in (36.8mm x 57.9mm x 12.7mm) Heatsink Option (“H” Suffix): 1.45in x 2.28in x 1.19in (36.8mm x 57.9mm x 30.2mm) |
| Case Material: | Non-Conductive Black Plastic |
| Notes & safety | |
| Notes: | 1. Add “H” to model number to indicate product with heatsink. 2. If remote sense is not being used, SENSE pins should be connected to corresponding polarity OUTPUT pins. 3. This product is Listed to applicable standards and requirements by UL. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | IEC/EN/ANSI/AAMI ES 60601-1, IEC/EN/UL 62368-1 |
| RoHS Compliance: | Yes |
