DCMPPW03

The DCMPPW03 series of medical DC/DC power converters provides 3 Watts of output power in a 1.25” x 0.80” x 0.40” DIP package. This series consists of single and dual output models with 4:1 wide input voltage ranges of 9-36VDC and 18-75VDC. Some features include high efficiency up to 87%, 5000VAC I/O (2 MOPP) isolation, and low stand-by power consumption. These converters are also protected against under voltage, short circuit, over voltage, and over load conditions. All models are RoHS compliant and have ANSI/AAMI ES60601-1, EN60601-1, and IEC60601-1 safety approvals. Remote ON/OFF and Trim functions are also available for this series. 2:1 input voltage models are also available (see the DCMPP03 series).

• 2µA Patient Leakage Current • Single & Dual Outputs • Under Voltage Protection • High Efficiency up to 87% • 4:1 Wide Input Voltage Ranges • Built-in EMI Class A Filter • Low Stand-by Power Consumption • 3 Watts Output Power • Reinforced Insulation for 250VAC Working Voltage • Clearance and Creepage Distance: 8.0mm/2MOPP • 5000VAC Input to Output 2MOPP Isolation • Short Circuit, Over Voltage, and Over Load Protection • CE Marked • Compliant to RoHS II & REACH • ANSI/AAMI ES60601-1, EN60601-1, IEC60601-1 3rd Edition, UL60950-1, EN60950-1, & IEC60950-1 Safety Approvals • Optional Remote ON/OFF Control and Trim Pin
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
DCMPPW03-24S05B Input Voltage: 24 Output Voltage: 5 Output Current: 600mA Output Power (W): 3 No. Outputs: S Case: Through Hole Get a Quote
DCMPPW03-24S05A Input Voltage: 24 Output Voltage: 5 Output Current: 600mA Output Power (W): 3 No. Outputs: S Case: Through Hole Get a Quote
DCMPPW03-24D05B Input Voltage: 24 Output Voltage: 5, -5 Output Current: ±300mA Output Power (W): 3 No. Outputs: D Case: Through Hole Get a Quote
DCMPPW03-24D05A Input Voltage: 24 Output Voltage: 5, -5 Output Current: ±300mA Output Power (W): 3 No. Outputs: D Case: Through Hole Get a Quote
DCMPPW03-24S12B Input Voltage: 24 Output Voltage: 12 Output Current: 250mA Output Power (W): 3 No. Outputs: S Case: Through Hole Get a Quote
DCMPPW03-24S12A Input Voltage: 24 Output Voltage: 12 Output Current: 250mA Output Power (W): 3 No. Outputs: S Case: Through Hole Get a Quote
DCMPPW03-24D12B Input Voltage: 24 Output Voltage: 12, -12 Output Current: ±125mA Output Power (W): 3 No. Outputs: D Case: Through Hole Get a Quote
DCMPPW03-24D12A Input Voltage: 24 Output Voltage: 12, -12 Output Current: ±125mA Output Power (W): 3 No. Outputs: D Case: Through Hole Get a Quote
DCMPPW03-24S15A Input Voltage: 24 Output Voltage: 15 Output Current: 200mA Output Power (W): 3 No. Outputs: S Case: Through Hole Get a Quote
DCMPPW03-24S15B Input Voltage: 24 Output Voltage: 15 Output Current: 200mA Output Power (W): 3 No. Outputs: S Case: Through Hole Get a Quote
DCMPPW03-24D15B Input Voltage: 24 Output Voltage: 15, -15 Output Current: ±100mA Output Power (W): 3 No. Outputs: D Case: Through Hole Get a Quote
DCMPPW03-24D15A Input Voltage: 24 Output Voltage: 15, -15 Output Current: ±100mA Output Power (W): 3 No. Outputs: D Case: Through Hole Get a Quote
DCMPPW03-24S24A Input Voltage: 24 Output Voltage: 24 Output Current: 125mA Output Power (W): 3 No. Outputs: S Case: Through Hole Get a Quote
DCMPPW03-24S24B Input Voltage: 24 Output Voltage: 24 Output Current: 125mA Output Power (W): 3 No. Outputs: S Case: Through Hole Get a Quote
DCMPPW03-48S05B Input Voltage: 48 Output Voltage: 5 Output Current: 600mA Output Power (W): 3 No. Outputs: S Case: Through Hole Get a Quote
DCMPPW03-48S05A Input Voltage: 48 Output Voltage: 5 Output Current: 600mA Output Power (W): 3 No. Outputs: S Case: Through Hole Get a Quote
DCMPPW03-48D05B Input Voltage: 48 Output Voltage: 5, -5 Output Current: ±300mA Output Power (W): 3 No. Outputs: D Case: Through Hole Get a Quote
DCMPPW03-48D05A Input Voltage: 48 Output Voltage: 5, -5 Output Current: ±300mA Output Power (W): 3 No. Outputs: D Case: Through Hole Get a Quote
DCMPPW03-48S12A Input Voltage: 48 Output Voltage: 12 Output Current: 250mA Output Power (W): 3 No. Outputs: S Case: Through Hole Get a Quote
DCMPPW03-48S12B Input Voltage: 48 Output Voltage: 12 Output Current: 250mA Output Power (W): 3 No. Outputs: S Case: Through Hole Get a Quote
DCMPPW03-48D12B Input Voltage: 48 Output Voltage: 12, -12 Output Current: ±125mA Output Power (W): 3 No. Outputs: D Case: Through Hole Get a Quote
DCMPPW03-48D12A Input Voltage: 48 Output Voltage: 12, -12 Output Current: ±125mA Output Power (W): 3 No. Outputs: D Case: Through Hole Get a Quote
DCMPPW03-48S15B Input Voltage: 48 Output Voltage: 15 Output Current: 200mA Output Power (W): 3 No. Outputs: S Case: Through Hole Get a Quote
DCMPPW03-48S15A Input Voltage: 48 Output Voltage: 15 Output Current: 200mA Output Power (W): 3 No. Outputs: S Case: Through Hole Get a Quote
DCMPPW03-48D15B Input Voltage: 48 Output Voltage: 15, -15 Output Current: ±100mA Output Power (W): 3 No. Outputs: D Case: Through Hole Get a Quote
DCMPPW03-48D15A Input Voltage: 48 Output Voltage: 15, -15 Output Current: ±100mA Output Power (W): 3 No. Outputs: D Case: Through Hole Get a Quote
DCMPPW03-48S24B Input Voltage: 48 Output Voltage: 24 Output Current: 125mA Output Power (W): 3 No. Outputs: S Case: Through Hole Get a Quote
DCMPPW03-48S24A Input Voltage: 48 Output Voltage: 24 Output Current: 125mA Output Power (W): 3 No. Outputs: S Case: Through Hole Get a Quote
DCMPPW03-24S33A Input Voltage: 24 Output Voltage: 3.3 Output Current: 1000mA Output Power (W): 3.3 No. Outputs: S Case: Through Hole Get a Quote
DCMPPW03-24S33B Input Voltage: 24 Output Voltage: 3.3 Output Current: 1000mA Output Power (W): 3.3 No. Outputs: S Case: Through Hole Get a Quote
DCMPPW03-48S33B Input Voltage: 48 Output Voltage: 3.3 Output Current: 1000mA Output Power (W): 3.3 No. Outputs: S Case: Through Hole Get a Quote
DCMPPW03-48S33A Input Voltage: 48 Output Voltage: 3.3 Output Current: 1000mA Output Power (W): 3.3 No. Outputs: S Case: Through Hole Get a Quote
Specification Value
Input
Input Voltage (Nominal): 24, 48
Input Voltage Range: 18~75, 9~36
Input Filter: Pi Type
Remote ON/OFF: Optional
UVLO: Yes
Input Frequency: 0 Hz
Output
Output Voltage: 3.3, 5, 12, 15, 24, ±5, ±12, ±15
Voltage Accuracy: ±1%
Output Current: 1000mA, 600mA, 250mA, 200mA, 125mA, ±300mA, ±125mA, ±100mA
Output Power (Watts): 3
Output Trim/Adjustability: Optional for "B" type
Short Circuit Protection: Continuous, Automatic Recovery
Over Voltage Protection: Yes
General
Efficiency: Up to 87.5%
Isolation: Input to Output: 5000VAC (2MOPP)
Environmental

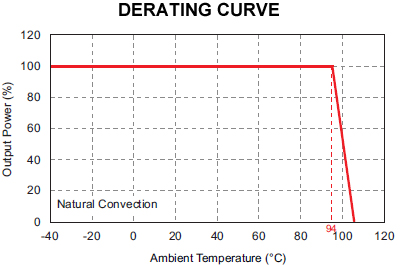

Operating Temperature: -40 to 105°C (with derating)
Storage Temperature: -55 to 125°C
Physical
Weight: 0.48 oz
Dimensions: 1.25" x 0.80" x 0.40"
Case Material: Non-conductive black plastic
Notes & safety

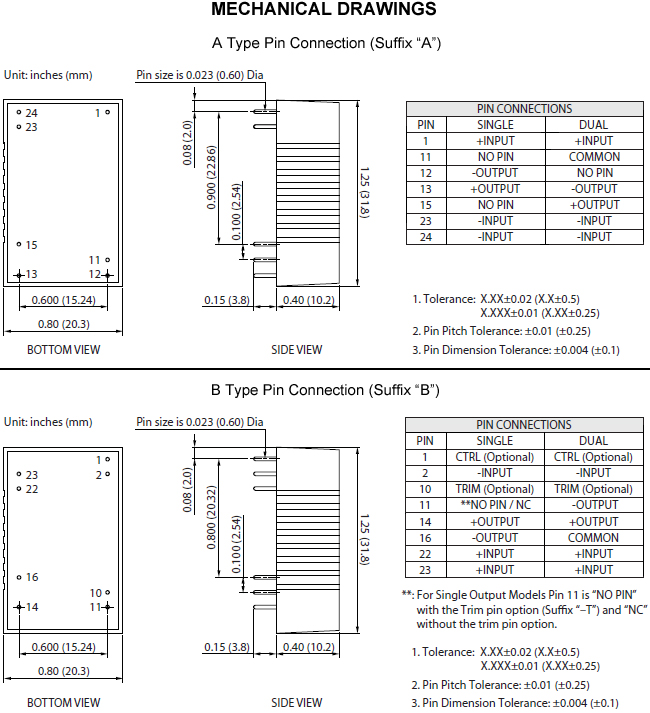

Notes: 1. The “x” in the model number represents the Pin Connection type. It can be “A” for pin connection type A or “B” for pin connection type B. See mechanical drawings on page 4 for more information.
2. The DCMPPW03 series meets EMI Class A without an external filter added. This series can only meet EMI Class B with external components added. Please contact factory for more information.
3. An external input filter capacitor is required if the module has to meet EN61000-4-4, EN61000-4-5.
• For 24VDC nominal input models we recommend connecting an aluminum electrolytic capacitor (Nippon Chemi-con KY series, 470µF/50V) in parallel.
• For 48VDC nominal input models we recommend connecting an aluminum electrolytic capacitor (Nippon Chemi-con KY series, 330µF/100V) in parallel.
4. Remote ON/OFF control is optional and is only available for “B” type pin connection models. To order the converter with remote ON/OFF add the suffix “-P” to the model number (Ex: DCMPPW03-48S12B-P).
5. Trim function is optional and is only available for “B” type pin connection models. To order the converter with Trim pin add the suffix “-T” to the model number (Ex: DCMPPW03-48S12B-T).
CAUTION: This power module is not internally fused. An input line fuse must always be used.
Due to advances in technology, specifications subject to change without notice.
Safety Approvals: ANSI/AAMI ES60601-1, EN60601-1, IEC60601-1 3rd Edition, UL60950-1, EN60950-1, IEC60950-1
RoHS Compliance: Yes
