DCMJW10
The DCMJW10 series of DC/DC converters offers up to 10 watts of output power in a 1” x 1” x 0.40” shielded metal case. This series consists of fully regulated single and dual output models with a wide 2:1 input voltage range. Each model in this series has low no load power consumption, over load and short circuit protection, and has optional remote on/off and heatsink. This series has UL/cUL.IEC/EN 60950-1 safety approvals and an I/O isolation of 1500VDC. Please call factory for ordering details.
• Wide 2:1 Input Voltage Range
• Fully Regulated Output Voltages
• No Minimum Load Requirement
• Optional Remote On/Off Control

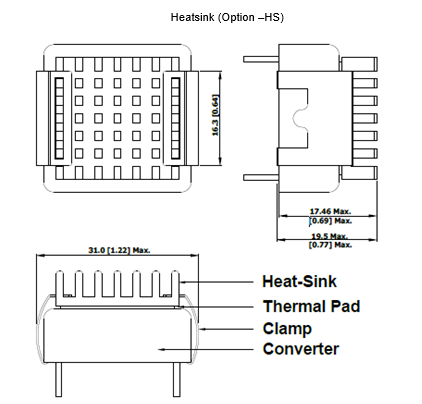

• Optional Heatsink
• RoHS & REACH Compliant
• Over Load and Short Circuit Protection
• Shielded Metal Case with Insulated Baseplate
• Low No Load Power Consumption
• I/O Isolation of 1500VDC
• UL/cUL/IEC/EN 60950-1 Safety Approvals
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DCMJW10-12S033 | Input Voltage: 12 | Output Voltage: 3.3 | Output Current: 2500mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 1" x 1" x 0.4" | Get a Quote |
| DCMJW10-12S05 | Input Voltage: 12 | Output Voltage: 5 | Output Current: 2000mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 1" x 1" x 0.4" | Get a Quote |
| DCMJW10-12S051 | Input Voltage: 12 | Output Voltage: 5.1 | Output Current: 2000mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 1" x 1" x 0.4" | Get a Quote |
| DCMJW10-12S12 | Input Voltage: 12 | Output Voltage: 12 | Output Current: 830mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 1" x 1" x 0.4" | Get a Quote |
| DCMJW10-12S15 | Input Voltage: 12 | Output Voltage: 15 | Output Current: 670mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 1" x 1" x 0.4" | Get a Quote |
| DCMJW10-24S033 | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 2500mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 1" x 1" x 0.4" | Get a Quote |
| DCMJW10-24S05 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 2000mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 1" x 1" x 0.4" | Get a Quote |
| DCMJW10-24S051 | Input Voltage: 24 | Output Voltage: 5.1 | Output Current: 2000mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 1" x 1" x 0.4" | Get a Quote |
| DCMJW10-24S12 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 830mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 1" x 1" x 0.4" | Get a Quote |
| DCMJW10-24S15 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 471mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 1" x 1" x 0.4" | Get a Quote |
| DCMJW10-48S033 | Input Voltage: 48 | Output Voltage: 3.3 | Output Current: 2500mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 1" x 1" x 0.4" | Get a Quote |
| DCMJW10-48S05 | Input Voltage: 48 | Output Voltage: 5 | Output Current: 2000mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 1" x 1" x 0.4" | Get a Quote |
| DCMJW10-48S051 | Input Voltage: 48 | Output Voltage: 5.1 | Output Current: 2000mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 1" x 1" x 0.4" | Get a Quote |
| DCMJW10-48S12 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 830mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 1" x 1" x 0.4" | Get a Quote |
| DCMJW10-48S15 | Input Voltage: 48 | Output Voltage: 15 | Output Current: 670mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 1" x 1" x 0.4" | Get a Quote |
| DCMJW10-12D05 | Input Voltage: 12 | Output Voltage: 5, -5 | Output Current: ±1000mA | Output Power (W): 10 | No. Outputs: D | Case: Through Hole | Size: 1" x 1" x 0.4" | Get a Quote |
| DCMJW10-10D12 | Input Voltage: 12 | Output Voltage: 12, -12 | Output Current: ±416mA | Output Power (W): 10 | No. Outputs: D | Case: Through Hole | Size: 1" x 1" x 0.4" | Get a Quote |
| DCMJW10-12D15 | Input Voltage: 12 | Output Voltage: 15, -15 | Output Current: ±333mA | Output Power (W): 10 | No. Outputs: D | Case: Through Hole | Size: 1" x 1" x 0.4" | Get a Quote |
| DCMJW10-24D05 | Input Voltage: 24 | Output Voltage: 5, -5 | Output Current: ±1000mA | Output Power (W): 10 | No. Outputs: D | Case: Through Hole | Size: 1" x 1" x 0.4" | Get a Quote |
| DCMJW10-24D12 | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±416mA | Output Power (W): 10 | No. Outputs: D | Case: Through Hole | Size: 1" x 1" x 0.4" | Get a Quote |
| DCMJW10-24D15 | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±333mA | Output Power (W): 10 | No. Outputs: D | Case: Through Hole | Size: 1" x 1" x 0.4" | Get a Quote |
| DCMJW10-48D05 | Input Voltage: 48 | Output Voltage: 5, -5 | Output Current: ±1000mA | Output Power (W): 10 | No. Outputs: D | Case: Through Hole | Size: 1" x 1" x 0.4" | Get a Quote |
| DCMJW10-48D12 | Input Voltage: 48 | Output Voltage: 12, -12 | Output Current: ±416mA | Output Power (W): 10 | No. Outputs: D | Case: Through Hole | Size: 1" x 1" x 0.4" | Get a Quote |
| DCMJW10-48D15 | Input Voltage: 48 | Output Voltage: 15, -15 | Output Current: ±333mA | Output Power (W): 10 | No. Outputs: D | Case: Through Hole | Size: 1" x 1" x 0.4" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 12, 24, 48 |
| Input Voltage Range: | 9~18, 18~36, 36~75 |
| Input Filter: | Internal Pi Type |
| Remote ON/OFF: | Yes |
| Output | |
| Output Voltage: | -15, -12, -5, 3.3, 5, 5.1, 12, 15 |
| Voltage Accuracy: | ±2.0% |
| Output Current: | -1000mA, -416mA, -333mA, 333mA, 416mA, 670mA, 830mA, 1000mA, 2000mA, 2500mA |
| Output Power (Watts): | 10 |
| Short Circuit Protection: | Hiccup Mode, Automatic Recovery |
| General | |
| Efficiency: | 89% |
| Isolation: | 60 Seconds: 1500VDC 1 Second: 1800VDC |
| Environmental | |
| Operating Temperature: | -40 to +80ºC |
| Storage Temperature: | -50 to +125ºC |
| Physical | |
| Weight: | 0.53oz (15g) |

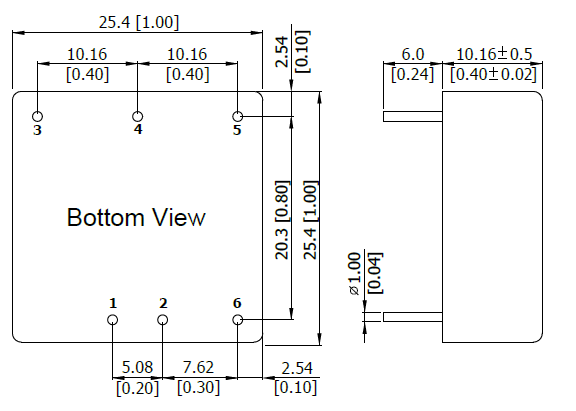

| Dimensions: | 1in x 1in x 0.4in |
| Case Material: | Aluminum Alloy, Black Anodized Coating |
| Shielding: | Six-Sided Shielded, Metal Case |
| Notes & safety | |
| Notes: | 1. Transient recovery time is measured to within 1% error band for a step change in output load of 75% to 100%. 2. It is recommended to protect the converter by a fast blow fuse in the input supply line. 3. Other input and output voltages may be available, please contact factory. 4. Natural Convection is about 20LFM but is not equal to still air (0 LFM). 5. To meet EN61000-4-4 & EN61000-4-5, an external capacitor across the input pins is required. Suggested capacitor: 330µF/80V 6. This product is Listed to applicable standards and requirements by UL. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL/cUL 60950-1 Recognition (CSA Certificate), IEC/EN 60950-1 (CB-Report) |
| RoHS Compliance: | Yes |
