DCMIW05

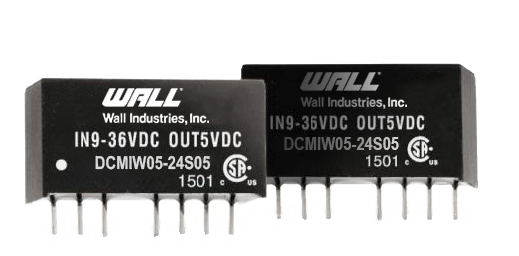

The DCMIW05 series of DC/DC converters offers 5 watts of output power in an ultra-compact 0.86” x 0.37” x 0.44” SIP-8 package. This series consists of fully regulated single and dual output models with an ultra-wide 4:1 input voltage range. Each model in this series has no minimum load requirement, over load and short circuit protection, and remote on/off control This series has UL/cUL/IEC/EN 60950-1 safety approvals and is RoHS & REACH compliant.
• Ultra-Wide 4:1 Input Voltage Range
• Fully Regulated Output Voltages
• Ultra-Compact SIP-8 Package
• No Min. Load Requirement
• Over Load and Short Circuit Protection
• Remote On/Off Control
• RoHS & REACH Compliant
• UL/cUL/IEC/EN 60950-1 Safety Approvals
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DCMIW05-12S033 | Input Voltage: 12 | Output Voltage: 3.3 | Output Current: 1075mA | Output Power (W): 5 | No. Outputs: S | Case: Through Hole | Size: 0.86" x 0.37" x 0.44" | Get a Quote |
| DCMIW05-12S05 | Input Voltage: 12 | Output Voltage: 5 | Output Current: 1000mA | Output Power (W): 5 | No. Outputs: S | Case: Through Hole | Size: 0.86" x 0.37" x 0.44" | Get a Quote |
| DCMIW05-12S12 | Input Voltage: 12 | Output Voltage: 12 | Output Current: 417mA | Output Power (W): 5 | No. Outputs: S | Case: Through Hole | Size: 0.86" x 0.37" x 0.44" | Get a Quote |
| DCMIW05-12S24 | Input Voltage: 12 | Output Voltage: 24 | Output Current: 209mA | Output Power (W): 5 | No. Outputs: S | Case: Through Hole | Size: 0.86" x 0.37" x 0.44" | Get a Quote |
| DCMIW05-12S15 | Input Voltage: 12 | Output Voltage: 15 | Output Current: 334mA | Output Power (W): 5 | No. Outputs: S | Case: Through Hole | Size: 0.86" x 0.37" x 0.44" | Get a Quote |
| DCMIW05-24S033 | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 1075mA | Output Power (W): 5 | No. Outputs: S | Case: Through Hole | Size: 0.86" x 0.37" x 0.44" | Get a Quote |
| DCMIW05-24S05 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 1000mA | Output Power (W): 5 | No. Outputs: S | Case: Through Hole | Size: 0.86" x 0.37" x 0.44" | Get a Quote |
| DCMIW05-24S12 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 417mA | Output Power (W): 5 | No. Outputs: S | Case: Through Hole | Size: 0.86" x 0.37" x 0.44" | Get a Quote |
| DCMIW05-24S15 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 334mA | Output Power (W): 5 | No. Outputs: S | Case: Through Hole | Size: 0.86" x 0.37" x 0.44" | Get a Quote |
| DCMIW05-24S24 | Input Voltage: 24 | Output Voltage: 24 | Output Current: 209mA | Output Power (W): 5 | No. Outputs: S | Case: Through Hole | Size: 0.86" x 0.37" x 0.44" | Get a Quote |
| DCMIW05-48S033 | Input Voltage: 48 | Output Voltage: 3.3 | Output Current: 1075mA | Output Power (W): 5 | No. Outputs: S | Case: Through Hole | Size: 0.86" x 0.37" x 0.44" | Get a Quote |
| DCMIW05-48S05 | Input Voltage: 48 | Output Voltage: 5 | Output Current: 1000mA | Output Power (W): 5 | No. Outputs: S | Case: Through Hole | Size: 0.86" x 0.37" x 0.44" | Get a Quote |
| DCMIW05-48S12 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 417mA | Output Power (W): 5 | No. Outputs: S | Case: Through Hole | Size: 0.86" x 0.37" x 0.44" | Get a Quote |
| DCMIW05-48S15 | Input Voltage: 48 | Output Voltage: 15 | Output Current: 334mA | Output Power (W): 5 | No. Outputs: S | Case: Through Hole | Size: 0.86" x 0.37" x 0.44" | Get a Quote |
| DCMIW05-48S24 | Input Voltage: 48 | Output Voltage: 24 | Output Current: 209mA | Output Power (W): 5 | No. Outputs: S | Case: Through Hole | Size: 0.86" x 0.37" x 0.44" | Get a Quote |
| DCMIW05-12D12 | Input Voltage: 12 | Output Voltage: 12, -12 | Output Current: ±209mA | Output Power (W): 5 | No. Outputs: D | Case: Through Hole | Size: 0.86" x 0.37" x 0.44" | Get a Quote |
| DCMIW05-12D15 | Input Voltage: 12 | Output Voltage: 15, -15 | Output Current: ±167mA | Output Power (W): 5 | No. Outputs: D | Case: Through Hole | Size: 0.86" x 0.37" x 0.44" | Get a Quote |
| DCMIW05-24D12 | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±209mA | Output Power (W): 5 | No. Outputs: D | Case: Through Hole | Size: 0.86" x 0.37" x 0.44" | Get a Quote |
| DCMIW05-24D15 | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±167mA | Output Power (W): 5 | No. Outputs: D | Case: Through Hole | Size: 0.86" x 0.37" x 0.44" | Get a Quote |
| DCMIW05-48D12 | Input Voltage: 48 | Output Voltage: 12, -12 | Output Current: ±209mA | Output Power (W): 5 | No. Outputs: D | Case: Through Hole | Size: 0.86" x 0.37" x 0.44" | Get a Quote |
| DCMIW05-48D15 | Input Voltage: 48 | Output Voltage: 15, -15 | Output Current: ±167mA | Output Power (W): 5 | No. Outputs: D | Case: Through Hole | Size: 0.86" x 0.37" x 0.44" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 12, 24, 48 |
| Input Voltage Range: | 4.5~18, 9~36, 18~75 |
| Input Filter: | Internal Capacitor |
| Remote ON/OFF: | Yes |
| Output | |
| Output Voltage: | -15, -12, 3.3, 5, 12, 15, 24 |
| Voltage Accuracy: | ±2.0 |
| Output Current: | -209mA, -167mA, 167mA, 209mA, 334mA, 417mA, 1000mA, 1075mA |
| Output Power (Watts): | 5 |
| Short Circuit Protection: | Continuous, Automatic Recovery |
| General | |
| Efficiency: | Up to 83% |
| Isolation: | 60 Seconds: 1500VDC 1 Second: 1800VDC |
| Environmental | |
| Operating Temperature: | -40 to +75ºC |
| Storage Temperature: | -55 to +125ºC |
| Physical | |
| Weight: | 0.17oz (4.8g) |
| Dimensions: | 0.86in x 0.37in x 0.44in (21.8mm x 9.3mm x 11.2mm) |
| Case Material: | Non-Conductive Black Plastic |
| Notes & safety | |
| Notes: | 1. Transient recovery time is measured to within 1% error band for a step change in output load of 75% to 100%. 2. It is recommended to protect the converter by a slow blow fuse in the input supply line. 3. Other input and output voltages may be available, please contact factory. 4. To meet EN55022 Class A an external filter, please contact factory 5. To meet EN61000-4-4 & EN61000-4-5 an external capacitor across the input pins is required. 6. Natural convection is 20LFM but is not equal to still air (0 LFM). 7. This product is Listed to applicable standards and requirements by UL. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL/cUL 60950-1 Recognition (CSA Certificate), IEC/EN 60950-1 (CB Report) |
| RoHS Compliance: | Yes |
