DCMID03

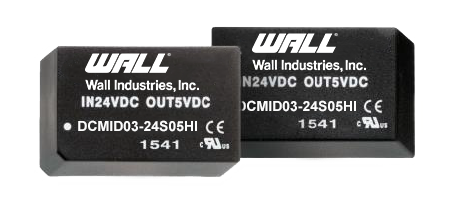

The DCMID03 series of DC/DC converters offers 3 watts of output power in a compact 1.25” x 0.80” x 0.40” DIP-24 package. This series consists of full regulated single and dual output voltages and wide input voltage range. Each model in this series has ultra-high I/O isolation, no minimum load requirement, and short circuit protection. This series has RoHS & REACH compliance and has UL/cUL/IEC/EN 60950-1 safety approvals as well as CE marking. Please contact factory for order details.
• Wide Input Voltage Range
• Full Regulated Output Voltage
• Industrial Standard DIP-24 Package
• No Min. Load Requirement
• Ultra-High I/O Isolation with Reinforced Insulation
• Qualified for IGBT and High Isolation Applications
• Short Circuit Protection
• RoHS & REACH Compliant
• UL/cUL/IEC/EN 60950-1 Safety Approval and CE Marking
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DCMID03-05S05HI | Input Voltage: 5 | Output Voltage: 5 | Output Current: 600mA | Output Power (W): 3 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.41 | Get a Quote |
| DCMID03-05S12HI | Input Voltage: 5 | Output Voltage: 12 | Output Current: 250mA | Output Power (W): 3 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.41 | Get a Quote |
| DCMID03-05S15HI | Input Voltage: 5 | Output Voltage: 15 | Output Current: 200mA | Output Power (W): 3 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.41 | Get a Quote |
| DCMID03-12S12HI | Input Voltage: 12 | Output Voltage: 12 | Output Current: 250mA | Output Power (W): 3 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.41 | Get a Quote |
| DCMID03-12S15HI | Input Voltage: 12 | Output Voltage: 15 | Output Current: 200mA | Output Power (W): 3 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.41 | Get a Quote |
| DCMID03-24S05HI | Input Voltage: 24 | Output Voltage: 5 | Output Current: 600mA | Output Power (W): 3 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.41 | Get a Quote |
| DCMID03-24S12HI | Input Voltage: 24 | Output Voltage: 12 | Output Current: 250mA | Output Power (W): 3 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.41 | Get a Quote |
| DCMID03-24S15HI | Input Voltage: 24 | Output Voltage: 15 | Output Current: 200mA | Output Power (W): 3 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.41 | Get a Quote |
| DCMID03-05D12HI | Input Voltage: 5 | Output Voltage: 12, -12 | Output Current: ±125mA | Output Power (W): 3 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.41 | Get a Quote |
| DCMID03-05D15HI | Input Voltage: 5 | Output Voltage: 15, -15 | Output Current: ±100mA | Output Power (W): 3 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.41 | Get a Quote |
| DCMID03-12D12HI | Input Voltage: 12 | Output Voltage: 12, -12 | Output Current: ±125mA | Output Power (W): 3 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.41 | Get a Quote |
| DCMID03-12D15HI | Input Voltage: 12 | Output Voltage: 15, -15 | Output Current: ±100mA | Output Power (W): 3 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.41 | Get a Quote |
| DCMID03-24D12HI | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±125mA | Output Power (W): 3 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.41 | Get a Quote |
| DCMID03-24D15HI | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±100mA | Output Power (W): 3 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.41 | Get a Quote |
| DCMID03-12S05HI | Input Voltage: 12 | Output Voltage: 5 | Output Current: 600mA | Output Power (W): 3 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.41 | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 5, 12, 24 |
| Input Voltage Range: | 4.5~5.5, 10.8~13.2, 21.6~26.4 |
| Input Filter: | Internal Filter |
| Output | |
| Output Voltage: | -15, -12, 5, 12, 15 |
| Voltage Accuracy: | ±4.0% |
| Output Current: | -125mA, -100mA, 100mA, 125mA, 200mA, 250mA, 600mA |
| Output Power (Watts): | 3 |
| Short Circuit Protection: | Continuous, Automatic Recovery |
| General | |
| Efficiency: | Up to 64% |
| Isolation: | 60 Seconds: 3000VAC 1 Second: 6000VDC |
| Environmental | |
| Operating Temperature: | -40 to +75ºC |
| Storage Temperature: | -50 to 125ºC |
| Physical | |
| Weight: | 0.44oz (12.4g) |

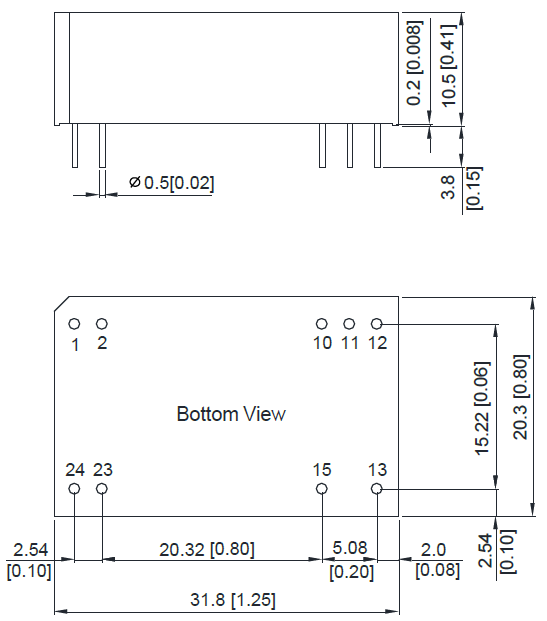

| Dimensions: | 1.25in x 0.80in x 0.41 (31.8mm x 20.mm x 10.5mm) |
| Case Material: | Non-Conductive Black Plastic |
| Notes & safety | |
| Notes: | 1. It is recommended to protect the converter by a slow blow fuse in the input supply line. 2. Other input and output voltages may be available, please contact factory. 3. Natural Convection is about 20LFM but is not equal to still air (0 LFM) 4. This product is Listed to applicable standards and requirements by UL. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL/cUL 60950-1 recognition (UL certificate) IEC/EN 6090-1 (CB-report) |
| RoHS Compliance: | Yes |
