DCMHP06

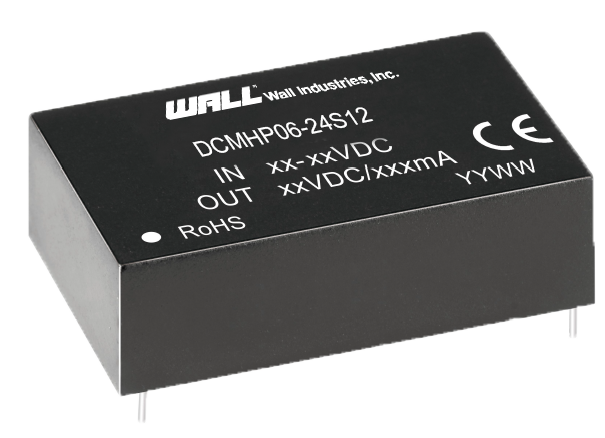

The DCMHP06 series of DC/DC converters offers 6 watt of output power in a compact DIP package. This series consists of regulated single output models wide 4:1 input voltage range. Each model features internal surface mounted design, reinforced isolation, and high efficiency. This series is also RoHS compliant, has 2xMOPP insulation protection grade, and is EN60601-1 (3rd Edition medical grade) approved.
• Ultra-Wide 4:1 Input Voltage
• High Efficiency
• Reinforced Isolation, I/O Isolation Test Voltage: 6KVDC and 2MOPP High Isolation
• Compact DIP Package
• Industry Standard Pin-Out
• Transformer Creepage Distance is 8mm, Transformer Clearance is 5mm
• No-Load Power Consumption as Low as 0.12W
• Leakage Current <5µA, Under 240VAC/60Hz Operating Conditions
• Input Under Voltage Protection
• Output Short Circuit, Over Current, and Over Voltage Protection
• Internal Surface Mounted Design
• International Standard Pin-Out
• RoHS Compliant
• EN60601-1 (3rd Edition Medical Grade) Approved, EN60601-1: 2006+A1: 2013
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DCMHP06-24S05 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 1200mA | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 1.24" x 0.80" x 0.40" | Get a Quote |
| DCMHP06-24S06 | Input Voltage: 24 | Output Voltage: 6 | Output Current: 1000mA | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 1.24" x 0.80" x 0.40" | Get a Quote |
| DCMHP06-24S09 | Input Voltage: 24 | Output Voltage: 9 | Output Current: 667mA | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 1.24" x 0.80" x 0.40" | Get a Quote |
| DCMHP06-24S12 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 500mA | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 1.24" x 0.80" x 0.40" | Get a Quote |
| DCMHP06-24S15 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 400mA | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 1.24" x 0.80" x 0.40" | Get a Quote |
| DCMHP06-24S18 | Input Voltage: 24 | Output Voltage: 18 | Output Current: 333mA | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 1.24" x 0.80" x 0.40" | Get a Quote |
| DCMHP06-24S24 | Input Voltage: 24 | Output Voltage: 24 | Output Current: 250mA | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 1.24" x 0.80" x 0.40" | Get a Quote |
| DCMHP06-48S05 | Input Voltage: 48 | Output Voltage: 5 | Output Current: 1200mA | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 1.24" x 0.80" x 0.40" | Get a Quote |
| DCMHP06-48S09 | Input Voltage: 48 | Output Voltage: 9 | Output Current: 667mA | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 1.24" x 0.80" x 0.40" | Get a Quote |
| DCMHP06-48S12 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 500mA | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 1.24" x 0.80" x 0.40" | Get a Quote |
| DCMHP06-48S15 | Input Voltage: 48 | Output Voltage: 15 | Output Current: 400mA | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 1.24" x 0.80" x 0.40" | Get a Quote |
| DCMHP06-48S24 | Input Voltage: 48 | Output Voltage: 24 | Output Current: 250mA | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 1.24" x 0.80" x 0.40" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 24, 48 |
| Input Voltage Range: | 9~36, 18~75 |
| Input Filter: | Pi Filter |
| Output | |
| Output Voltage: | 5, 6, 9, 12, 15, 18, 24 |
| Voltage Accuracy: | ±3% |
| Output Current: | 1200mA, 1000mA, 667mA, 500mA, 400mA, 333mA, 250mA |
| Output Power (Watts): | 6 |
| Short Circuit Protection: | Continuous, Self-Recovery |
| Over Voltage Protection: | 110-160%Vo |
| General | |
| Efficiency: | Up to 85% |
| Isolation: | 6000VDC |
| Environmental | |
| Operating Temperature: | -40 to 85°C |
| Storage Temperature: | -55 to 125°C |
| Physical | |
| Weight: | 0.46oz (13g) |

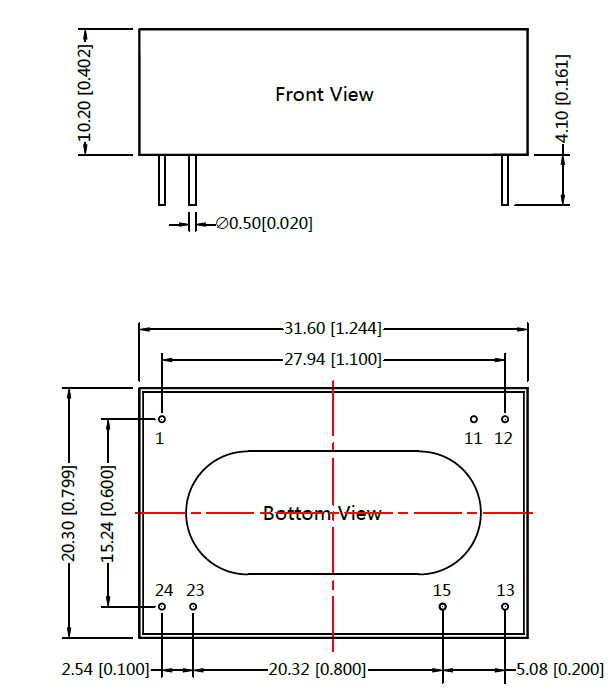

| Dimensions: | 1.24in x 0.80in x 0.40in (31.60mm x 20.30mm x 10.20mm) |
| Case Material: | Black Flame-Retardant and Heat-Resistant Plastic (UL94-V0) |
| Notes & safety | |
| Notes: | 1. Exceeding the maximum input voltage may cause permanent damage. 2. Load regulation for 0%-100% load is ±5% 3. Ripple & Noise at <5% load is 5%Vo max. The parallel cable method is used for Ripple and Noise test, oscilloscope using the 1X probe. Contact factory for more information. 4. Switching frequency is measured at full load. The module reduced the switching frequency for light load (below 50%) efficiency improvement. 5. Maximum capacitive load offered was tested at input voltage range and full load. 6. The performance indexes of the product models listed in this data sheet are as above, but some indexes of non-standard model products will exceed the above-mentioned requirements. Please contact factory for more information. 7. Product customization is available. Contact factory for more information. 8. Products should be classified according to ISO14001 and related environmental laws and regulations and should be handled by qualified units. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | EN60601-1: 2006+A1: 2013 |
| RoHS Compliance: | Yes |
