DCMD20W
The DCMD20W series of DC/DC converters offers up to 20 watts of output power in a 4in x 2.25in x 0.75in chassis mount, enclosed, din rail or enclosed din rail package. This series consists of single and dual output models with 4:1 ultra-wide input range. Each model has an internal output LED indicator, internal input fuse protection, screw terminals for input and output connectors, as well as remote control. This series also has over voltage, over load, and short circuit protection, RoHS II and REACH compliance, and UL60950-1, EN60950-1, and IEC60950-1 safety approvals. Please call factory for order details.
• 4:1 Ultra Wide Input Range
• No Minimum Load Required
• 1600VDC Input to Output Isolation
• Screw Terminals for Input and Output Connections
• Internal Input Fuse Protection
• Internal Output LED Indicator
• RoHS II and REACH Compliant
• Over Voltage, Over Load and Short Circuit Protection
• Remote Control
• CE Marked
• Meets EN55022 Class B
• Safety Meets UL60950-1, EN60950-1, and IEC60905-1
Part Number Setup:
X = “U” for Chassis Mount, “C” for Enclosed Mount, “D” for DIN Rail Mount, or “ED” for Enclosed & DIN Rail Mount
X = “U” for Chassis Mount, “C” for Enclosed Mount, “D” for DIN Rail Mount, or “ED” for Enclosed & DIN Rail Mount
Example:
DCMD20W-24S33C = 3.3VDC Model with Chassis Mount
DCMD20W-24S33C = 3.3VDC Model with Chassis Mount
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DCMD20W-24S33X | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 5500mA | Output Power (W): 20 | No. Outputs: S | Case: Chassis Mount, Enclosed Mount, DIN Rail Mount, Enclosed w. DIN Rail Mount | Size: 4" x 2.25" x 0.75" | Get a Quote |
| DCMD20W-24S05X | Input Voltage: 24 | Output Voltage: 5 | Output Current: 4000mA | Output Power (W): 20 | No. Outputs: S | Case: Chassis Mount, Enclosed Mount, DIN Rail Mount, Enclosed w. DIN Rail Mount | Size: 4" x 2.25" x 0.75" | Get a Quote |
| DCMD20W-24S12X | Input Voltage: 24 | Output Voltage: 12 | Output Current: 1670mA | Output Power (W): 20 | No. Outputs: S | Case: Chassis Mount, Enclosed Mount, DIN Rail Mount, Enclosed w. DIN Rail Mount | Size: 4" x 2.25" x 0.75" | Get a Quote |
| DCMD20W-24S15X | Input Voltage: 24 | Output Voltage: 15 | Output Current: 1330mA | Output Power (W): 20 | No. Outputs: S | Case: Chassis Mount, Enclosed Mount, DIN Rail Mount, Enclosed w. DIN Rail Mount | Size: 4" x 2.25" x 0.75" | Get a Quote |
| DCMD20W-48S33X | Input Voltage: 48 | Output Voltage: 3.3 | Output Current: 5500mA | Output Power (W): 20 | No. Outputs: S | Case: Chassis Mount, Enclosed Mount, DIN Rail Mount, Enclosed w. DIN Rail Mount | Size: 4" x 2.25" x 0.75" | Get a Quote |
| DCMD20W-48S05X | Input Voltage: 48 | Output Voltage: 5 | Output Current: 4000mA | Output Power (W): 20 | No. Outputs: S | Case: Chassis Mount, Enclosed Mount, DIN Rail Mount, Enclosed w. DIN Rail Mount | Size: 4" x 2.25" x 0.75" | Get a Quote |
| DCMD20W-48S12X | Input Voltage: 48 | Output Voltage: 12 | Output Current: 1670mA | Output Power (W): 20 | No. Outputs: S | Case: Chassis Mount, Enclosed Mount, DIN Rail Mount, Enclosed w. DIN Rail Mount | Size: 4" x 2.25" x 0.75" | Get a Quote |
| DCMD20W-48S15X | Input Voltage: 48 | Output Voltage: 15 | Output Current: 1330mA | Output Power (W): 20 | No. Outputs: S | Case: Chassis Mount, Enclosed Mount, DIN Rail Mount, Enclosed w. DIN Rail Mount | Size: 4" x 2.25" x 0.75" | Get a Quote |
| DCMD20W-24D05X | Input Voltage: 24 | Output Voltage: 5, -5 | Output Current: ±2000mA | Output Power (W): 20 | No. Outputs: D | Case: Chassis Mount, Enclosed Mount, DIN Rail Mount, Enclosed w. DIN Rail Mount | Size: 4" x 2.25" x 0.75" | Get a Quote |
| DCMD20W-24D12X | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±833mA | Output Power (W): 20 | No. Outputs: D | Case: Chassis Mount, Enclosed Mount, DIN Rail Mount, Enclosed w. DIN Rail Mount | Size: 4" x 2.25" x 0.75" | Get a Quote |
| DCMD20W-24D15X | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±667mA | Output Power (W): 20 | No. Outputs: D | Case: Chassis Mount, Enclosed Mount, DIN Rail Mount, Enclosed w. DIN Rail Mount | Size: 4" x 2.25" x 0.75" | Get a Quote |
| DCMD20W-48D05X | Input Voltage: 48 | Output Voltage: 5, -5 | Output Current: ±2000mA | Output Power (W): 20 | No. Outputs: D | Case: Chassis Mount, Enclosed Mount, DIN Rail Mount, Enclosed w. DIN Rail Mount | Size: 4" x 2.25" x 0.75" | Get a Quote |
| DCMD20W-48D12X | Input Voltage: 48 | Output Voltage: 12, -12 | Output Current: ±833mA | Output Power (W): 20 | No. Outputs: D | Case: Chassis Mount, Enclosed Mount, DIN Rail Mount, Enclosed w. DIN Rail Mount | Size: 4" x 2.25" x 0.75" | Get a Quote |
| DCMD20W-48D15X | Input Voltage: 48 | Output Voltage: 15, -15 | Output Current: ±667mA | Output Power (W): 20 | No. Outputs: D | Case: Chassis Mount, Enclosed Mount, DIN Rail Mount, Enclosed w. DIN Rail Mount | Size: 4" x 2.25" x 0.75" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 24, 48 |
| Input Voltage Range: | 9.5~36, 18~75 |
| Remote ON/OFF: | Yes |
| Output | |
| Output Voltage: | -15, -12, -5, 3.3, 5, 12, 15 |
| Voltage Accuracy: | 3.3 Vout: ±1.5% Others: ±1.0% |
| Output Current: | 1330mA, 1670mA, 4000mA, 5500mA, ±667mA, ±833mA, 2000mA |
| Output Power (Watts): | 20 |
| Output Trim/Adjustability: | Single Output: ±10% |
| Short Circuit Protection: | Continuous, Automatic Recovery |
| Over Voltage Protection: | 3.3 Vout: 3.9VDC 5Vout: 6.2VDC 15VDC 15Vout: 18VDC |
| General | |
| Isolation: | 1600VDC |
| Environmental | |
| Operating Temperature: | -40 to +75ºC |
| Storage Temperature: | -40 to +105ºC |
| Physical | |
| Weight: | 3.13oz (89g) |

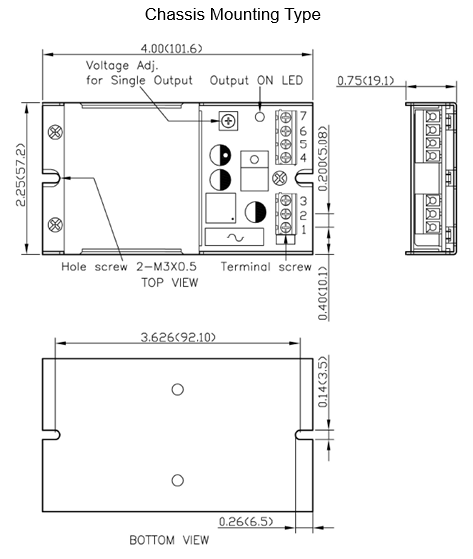

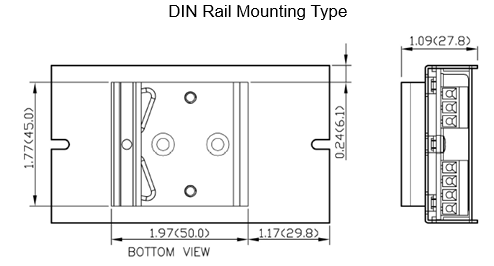

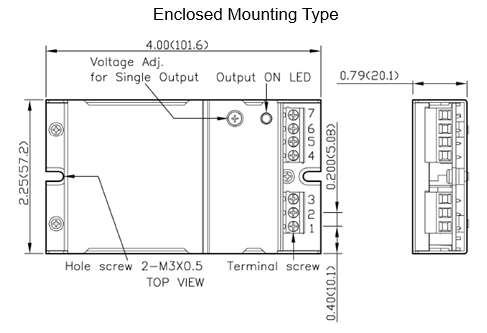

| Dimensions: | Chassis Mount: 4in x 2.25in x 0.75in (101.6mm x 57.2mm x 19.1mm) Enclosed Mount: 4in x 2.25in x 0.79in (101.6mm x 57.2mm x 20.1mm) DIN Rail Mount: 4in x 2.25in x 1.09in (101.6mm x 57.2mm x 27.8mm) |
| Notes & safety | |
| Notes: | 1. “X” in product name indicates assembly option types. “X” will be “U” for Chassis Mount, “C” for Enclosed Mount, “D” for DIN Rail Mount, or “ED” for Enclosed & DIN Rail Mount. 2. This product is Listed to applicable standards and requirements by UL. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL60950-, EN60950-1, IEC60950-1 |
| RoHS Compliance: | Yes |
