DCMCU2

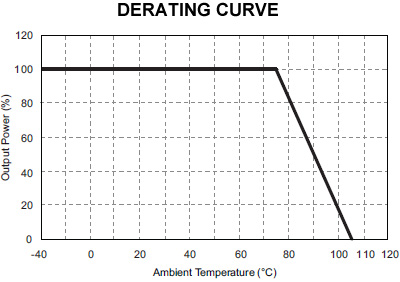

The DCMCU2 series of DC/DC power converters consists of fully regulated single and dual output models with 4:1 ultra wide input voltage ranges of 4.5-18 VDC, 9-36 VDC, and 18-75 VDC. These converters provide 2 Watts of output power in a very small SIP-8 package occupying only 0.32 square inches on the PCB. An excellent efficiency allows an operating temperature range up to +75°C at full load without derating. Further features include 1500VDC I/O isolation, remote on/off control, and short circuit protection. These converters are RoHS compliant and have CSA/UL/IEC/EN 60950-1 safety approvals. These converters’ very compact dimensions make them an ideal solution for many space critical applications in battery powered instrumentations.
• RoHS Compliant
• 2 Watts Output Power
• Remote On/Off Control
• 1500VDC I/O Isolation
• High Efficiency up to 82%
• High Power Density in SIP-8 Package
• Small Footprint: 0.86” x 0.37”
• Fully Regulated Single & Dual Outputs
• Ultra Wide 4:1 Input Voltage Ranges
• -40°C to +90°C Operating Temperature Range
• Short Circuit Protection
• CSA/UL/IEC/EN 60950-1 Safety Approvals (Pending)
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DCMCU2-12S33 | Input Voltage: 12 | Output Voltage: 3.3 | Output Current: 500mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.86" x 0.37" x 0.44" | Get a Quote |
| DCMCU2-12S05 | Input Voltage: 12 | Output Voltage: 5 | Output Current: 400mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.86" x 0.37" x 0.44" | Get a Quote |
| DCMCU2-12S12 | Input Voltage: 12 | Output Voltage: 12 | Output Current: 167mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.86" x 0.37" x 0.44" | Get a Quote |
| DCMCU2-12S15 | Input Voltage: 12 | Output Voltage: 15 | Output Current: 134mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.86" x 0.37" x 0.44" | Get a Quote |
| DCMCU2-24S33 | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 500mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.86" x 0.37" x 0.44" | Get a Quote |
| DCMCU2-24S05 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 400mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.86" x 0.37" x 0.44" | Get a Quote |
| DCMCU2-24S12 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 167mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.86" x 0.37" x 0.44" | Get a Quote |
| DCMCU2-24S15 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 134mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.86" x 0.37" x 0.44" | Get a Quote |
| DCMCU2-48S33 | Input Voltage: 48 | Output Voltage: 3.3 | Output Current: 500mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.86" x 0.37" x 0.44" | Get a Quote |
| DCMCU2-48S05 | Input Voltage: 48 | Output Voltage: 5 | Output Current: 400mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.86" x 0.37" x 0.44" | Get a Quote |
| DCMCU2-48S12 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 167mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.86" x 0.37" x 0.44" | Get a Quote |
| DCMCU2-48S15 | Input Voltage: 48 | Output Voltage: 15 | Output Current: 134mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.86" x 0.37" x 0.44" | Get a Quote |
| DCMCU2-12D05 | Input Voltage: 12 | Output Voltage: 5, -5 | Output Current: ±200mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.86" x 0.37" x 0.44" | Get a Quote |
| DCMCU2-12D12 | Input Voltage: 12 | Output Voltage: 12, -12 | Output Current: ±83mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.86" x 0.37" x 0.44" | Get a Quote |
| DCMCU2-12D15 | Input Voltage: 12 | Output Voltage: 15, -15 | Output Current: ±67mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.86" x 0.37" x 0.44" | Get a Quote |
| DCMCU2-24D05 | Input Voltage: 24 | Output Voltage: 5, -5 | Output Current: ±200mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.86" x 0.37" x 0.44" | Get a Quote |
| DCMCU2-24D12 | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±83mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.86" x 0.37" x 0.44" | Get a Quote |
| DCMCU2-24D15 | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±67mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.86" x 0.37" x 0.44" | Get a Quote |
| DCMCU2-48D05 | Input Voltage: 48 | Output Voltage: 5, -5 | Output Current: ±200mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.86" x 0.37" x 0.44" | Get a Quote |
| DCMCU2-48D12 | Input Voltage: 48 | Output Voltage: 12, -12 | Output Current: ±83mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.86" x 0.37" x 0.44" | Get a Quote |
| DCMCU2-48D15 | Input Voltage: 48 | Output Voltage: 15, -15 | Output Current: ±67mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.86" x 0.37" x 0.44" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 12, 24, 48 |
| Input Voltage Range: | 18~75, 4.5~18, 9~36 |
| Input Filter: | Capacitor Type |
| Remote ON/OFF: | Negative Logic |
| Input Frequency: | 0 Hz |
| Output | |
| Output Voltage: | 3.3, 5, -5, 12, -12, 15, -15 |
| Voltage Accuracy: | ±2% |
| Output Current: | 500mA, 400mA, 167mA, 134mA, ±200mA, ±83mA, ±67mA |
| Output Power (Watts): | 2 |
| Short Circuit Protection: | Continuous |
| General | |
| Efficiency: | Up to 82% |
| Isolation: | 1500VDC |
| Environmental | |
| Operating Temperature: | -40 to 90°C |
| Storage Temperature: | -55 to 125°C |
| Physical | |
| Weight: | 0.16 oz |

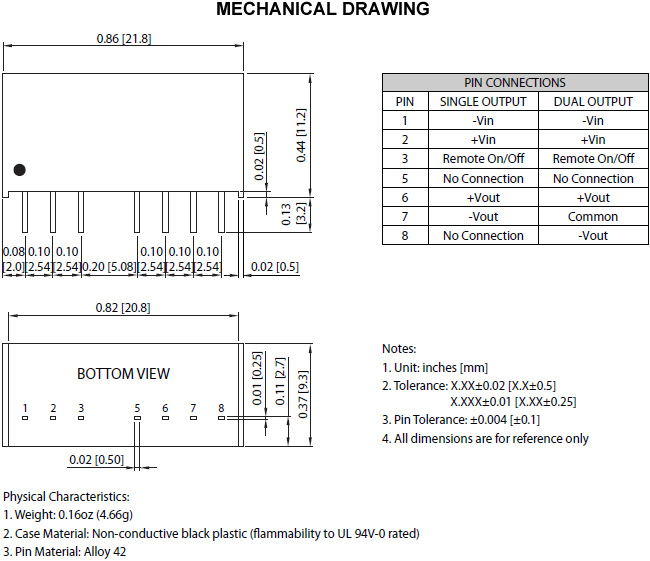

| Dimensions: | 0.86 x 0.37 x 0.44 |
| Case Material: | Non-conductive black plastic |
| Notes & safety | |
| Notes: | 1. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | CSA/UL/IEC/EN 60950-1 (Pending) |
| RoHS Compliance: | Yes |
