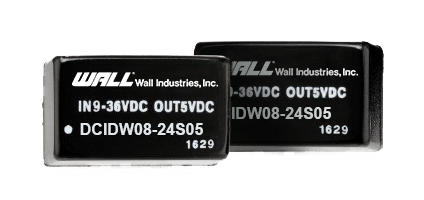

The DCIDW08 series of DC/DC converters offers up to 8 watts of output power in a compact 0.94” x 0.54” x 0.31” industrial DIP-16 package. This series consists of fully regulated single and dual output models with an ultra-wide 4:1 input voltage range. Each model in this series has over load and short circuit protection, is RoHS & REACH compliant, and features no minimum load requirement. This series has UL/cUL/IEC/EN 62368-1 (60950-1) safety approvals and is CE marked.
• Ultra-Wide 4:1 Input Voltage Range
• Industrial DIP-16 Package
• Fully Regulated Output Voltage
• No Minimum Load Requirement
• Over Load and Short Circuit Protection
• RoHS & REACH Compliant
• UL/cUL/IEC/EN 62368-1 (60950-1) Safety Approvals and CE Marking
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DCIDW08-24S33 | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 2000mA | Output Power (W): 8 | No. Outputs: S | Case: Through Hole | Size: 0.94" x 0.54" x 0.31" | Get a Quote |
| DCIDW08-24S05 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 1600mA | Output Power (W): 8 | No. Outputs: S | Case: Through Hole | Size: 0.94" x 0.54" x 0.31" | Get a Quote |
| DCIDW08-24S12 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 665mA | Output Power (W): 8 | No. Outputs: S | Case: Through Hole | Size: 0.94" x 0.54" x 0.31" | Get a Quote |
| DCIDW08-24S15 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 535mA | Output Power (W): 8 | No. Outputs: S | Case: Through Hole | Size: 0.94" x 0.54" x 0.31" | Get a Quote |
| DCIDW08-24S24 | Input Voltage: 24 | Output Voltage: 24 | Output Current: 335mA | Output Power (W): 8 | No. Outputs: S | Case: Through Hole | Size: 0.94" x 0.54" x 0.31" | Get a Quote |
| DCIDW08-48S33 | Input Voltage: 48 | Output Voltage: 3.3 | Output Current: 2000mA | Output Power (W): 8 | No. Outputs: S | Case: Through Hole | Size: 0.94" x 0.54" x 0.31" | Get a Quote |
| DCIDW08-48S05 | Input Voltage: 48 | Output Voltage: 5 | Output Current: 1600mA | Output Power (W): 8 | No. Outputs: S | Case: Through Hole | Size: 0.94" x 0.54" x 0.31" | Get a Quote |
| DCIDW08-48S12 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 665mA | Output Power (W): 8 | No. Outputs: S | Case: Through Hole | Size: 0.94" x 0.54" x 0.31" | Get a Quote |
| DCIDW08-48S15 | Input Voltage: 48 | Output Voltage: 15 | Output Current: 535mA | Output Power (W): 8 | No. Outputs: S | Case: Through Hole | Size: 0.94" x 0.54" x 0.31" | Get a Quote |
| DCIDW08-48S24 | Input Voltage: 48 | Output Voltage: 24 | Output Current: 335mA | Output Power (W): 8 | No. Outputs: S | Case: Through Hole | Size: 0.94" x 0.54" x 0.31" | Get a Quote |
| DCIDW08-24D12 | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±335mA | Output Power (W): 8 | No. Outputs: D | Case: Through Hole | Size: 0.94" x 0.54" x 0.31" | Get a Quote |
| DCIDW08-24D15 | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±265mA | Output Power (W): 8 | No. Outputs: D | Case: Through Hole | Size: 0.94" x 0.54" x 0.31" | Get a Quote |
| DCIDW08-48D12 | Input Voltage: 48 | Output Voltage: 12, -12 | Output Current: ±335mA | Output Power (W): 8 | No. Outputs: D | Case: Through Hole | Size: 0.94" x 0.54" x 0.31" | Get a Quote |
| DCIDW08-48D15 | Input Voltage: 48 | Output Voltage: 15, -15 | Output Current: ±265mA | Output Power (W): 8 | No. Outputs: D | Case: Through Hole | Size: 0.94" x 0.54" x 0.31" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 24, 48 |
| Input Voltage Range: | 9~36, 18~75 |
| Input Filter: | Internal Pi Type |
| Output | |
| Output Voltage: | -15, -12, 3.3, 5, 12, 15, 24 |
| Voltage Accuracy: | ±2.0 |
| Output Current: | -335mA, -265mA, 265mA, 335mA, 535mA, 665mA, 1600mA, 2000mA |
| Output Power (Watts): | 8 |
| Short Circuit Protection: | Yes |
| General | |
| Efficiency: | Up to 86% |
| Isolation: | 60 Seconds: 1500VDC 1 Second: 1800VDC |
| Environmental | |
| Operating Temperature: | -40 to +80ºC |
| Storage Temperature: | 50 to +125ºC |
| Physical | |
| Weight: | 0.035oz (6.1g) |

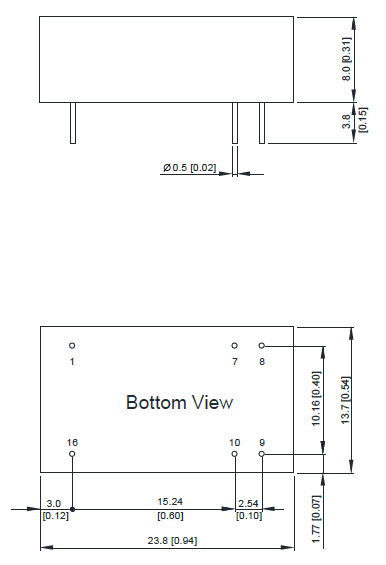

| Dimensions: | 0.94in x 0.54in x 0.31in (23.8mm x 13.7mm x 8mm) |
| Case Material: | Aluminum Alloy, Black Anodized Coating |
| Shielding: | Shielded Metal Case with Insulated Baseplate |
| Notes & safety | |
| Notes: | 1. Transient recovery time is measured to within 1% error band for a step change in output load of 75% to 100%. 2. “Natural Convection’ is about 20LFM but is not equal to still air (0 LFM). 3. To meet EN61000-4-4 & EN61000-4-5 an external capacitor across the input pins is required. Suggested capacitor: 220µF/100V. 4. Other input and output voltages may be available, please contact factory. 5. It is recommended to protect the converter by a slow blow fuse in the input supply line. 6. This product is Listed to applicable standards and requirements by UL. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL/cUL 60950-1 recognition (UL Certificate), IEC/EN 60950-1 (CB Report), UL/cUL 62368-1 Recognition (UL Certificate), IEC/EN 62368-1 (CB Report) |
| RoHS Compliance: | Yes |
