DCHUB10H

The DCHUB10H series of isolated DC/DC power converters provides 10 Watts of continuous output power in a 2.0” x 1.0” x 0.4” shielded metal case. This series consists of single and dual output models with 2:1 input voltage ranges of 9-18VDC, 18-36VDC, and 36~75VDC. Some features include high efficiency up to 87%, 3000VDC I/O isolation, remote on/off control, and -40°C to +85°C operating temperature range. The DCHUB10H series is RoHS compliant and has short circuit, over load, and over voltage protection. These converters are best suited for use in battery operated equipment, measurement equipment, telecom, wireless networks, industry control systems, and anywhere where isolated, tightly regulated voltages and compact size are required.

• Single and Dual Outputs • 10 Watts Output Power • Remote On/Off Control • 3000VDC I/O Isolation • High Efficiency up to 87% • Lead Free Design, RoHS Compliant • Free Air Convection • 6 Pin DIP Package with Industry-Standard Footprint • 2:1 Wide Input Voltage Ranges • Shielded Metal Case with Insulated Base-plate • -40°C to +85°C Operating Temperature Range • Industry Standard 2.0” x 1.0” x 0.4” DIP Package • Short Circuit, Over Voltage, & Over Load Protection • Custom Designs Available
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case Size
DCHUB10-12S33H Input Voltage: 12 Output Voltage: 3.3 Output Current: 3000mA Output Power (W): 10 No. Outputs: S Case: Through Hole Size: 2" x 1.0" x 0.4" Get a Quote
DCHUB10-12S05H Input Voltage: 12 Output Voltage: 5 Output Current: 2000mA Output Power (W): 10 No. Outputs: S Case: Through Hole Size: 2" x 1.0" x 0.4" Get a Quote
DCHUB10-12S12H Input Voltage: 12 Output Voltage: 12 Output Current: 830mA Output Power (W): 10 No. Outputs: S Case: Through Hole Size: 2" x 1.0" x 0.4" Get a Quote
DCHUB10-12S15H Input Voltage: 12 Output Voltage: 15 Output Current: 670mA Output Power (W): 10 No. Outputs: S Case: Through Hole Size: 2" x 1.0" x 0.4" Get a Quote
DCHUB10-12S24H Input Voltage: 12 Output Voltage: 24 Output Current: 415mA Output Power (W): 10 No. Outputs: S Case: Through Hole Size: 2" x 1.0" x 0.4" Get a Quote
DCHUB10-24S33H Input Voltage: 24 Output Voltage: 3.3 Output Current: 3000mA Output Power (W): 10 No. Outputs: S Case: Through Hole Size: 2" x 1.0" x 0.4" Get a Quote
DCHUB10-24S05H Input Voltage: 24 Output Voltage: 5 Output Current: 2000mA Output Power (W): 10 No. Outputs: S Case: Through Hole Size: 2" x 1.0" x 0.4" Get a Quote
DCHUB10-24S12H Input Voltage: 24 Output Voltage: 12 Output Current: 830mA Output Power (W): 10 No. Outputs: S Case: Through Hole Size: 2" x 1.0" x 0.4" Get a Quote
DCHUB10-24S15H Input Voltage: 24 Output Voltage: 15 Output Current: 670mA Output Power (W): 10 No. Outputs: S Case: Through Hole Size: 2" x 1.0" x 0.4" Get a Quote
DCHUB10-24S24H Input Voltage: 24 Output Voltage: 24 Output Current: 415mA Output Power (W): 10 No. Outputs: S Case: Through Hole Size: 2" x 1.0" x 0.4" Get a Quote
DCHUB10-48S33H Input Voltage: 48 Output Voltage: 3.3 Output Current: 3000mA Output Power (W): 10 No. Outputs: S Case: Through Hole Size: 2" x 1.0" x 0.4" Get a Quote
DCHUB10-48S05H Input Voltage: 48 Output Voltage: 5 Output Current: 2000mA Output Power (W): 10 No. Outputs: S Case: Through Hole Size: 2" x 1.0" x 0.4" Get a Quote
DCHUB10-48S12H Input Voltage: 48 Output Voltage: 12 Output Current: 830mA Output Power (W): 10 No. Outputs: S Case: Through Hole Size: 2" x 1.0" x 0.4" Get a Quote
DCHUB10-48S15H Input Voltage: 48 Output Voltage: 15 Output Current: 670mA Output Power (W): 10 No. Outputs: S Case: Through Hole Size: 2" x 1.0" x 0.4" Get a Quote
DCHUB10-48S24H Input Voltage: 48 Output Voltage: 24 Output Current: 415mA Output Power (W): 10 No. Outputs: S Case: Through Hole Size: 2" x 1.0" x 0.4" Get a Quote
DCHUB10-12D05H Input Voltage: 12 Output Voltage: 5, -5 Output Current: ±1000mA Output Power (W): 10 No. Outputs: D Case: Through Hole Size: 2" x 1.0" x 0.4" Get a Quote
DCHUB10-12D12H Input Voltage: 12 Output Voltage: 12, -12 Output Current: ±415mA Output Power (W): 10 No. Outputs: D Case: Through Hole Size: 2" x 1.0" x 0.4" Get a Quote
DCHUB10-12D15H Input Voltage: 12 Output Voltage: 15, -15 Output Current: ±330mA Output Power (W): 10 No. Outputs: D Case: Through Hole Size: 2" x 1.0" x 0.4" Get a Quote
DCHUB10-24D05H Input Voltage: 24 Output Voltage: 5, -5 Output Current: ±1000mA Output Power (W): 10 No. Outputs: D Case: Through Hole Size: 2" x 1.0" x 0.4" Get a Quote
DCHUB10-24D12H Input Voltage: 24 Output Voltage: 12, -12 Output Current: ±415mA Output Power (W): 10 No. Outputs: D Case: Through Hole Size: 2" x 1.0" x 0.4" Get a Quote
DCHUB10-24D15H Input Voltage: 24 Output Voltage: 15, -15 Output Current: ±330mA Output Power (W): 10 No. Outputs: D Case: Through Hole Size: 2" x 1.0" x 0.4" Get a Quote
DCHUB10-48D05H Input Voltage: 48 Output Voltage: 5, -5 Output Current: ±1000mA Output Power (W): 10 No. Outputs: D Case: Through Hole Size: 2" x 1.0" x 0.4" Get a Quote
DCHUB10-48D12H Input Voltage: 48 Output Voltage: 12, -12 Output Current: ±415mA Output Power (W): 10 No. Outputs: D Case: Through Hole Size: 2" x 1.0" x 0.4" Get a Quote
DCHUB10-48D15H Input Voltage: 48 Output Voltage: 15, -15 Output Current: ±330mA Output Power (W): 10 No. Outputs: D Case: Through Hole Size: 2" x 1.0" x 0.4" Get a Quote
Specification Value
Input
Input Voltage (Nominal): 12, 24, 48
Input Voltage Range: 9-18, 18-36, 36-75
Input Filter: Pi Type
Remote ON/OFF: Yes
Input Frequency: 0 Hz
Output
Output Voltage: 3.3, 5, -5, 12, -12, 15, -15, 24
Voltage Accuracy: ±1%
Output Current: 3000mA, 2000mA, 830mA, 670mA, 415mA, ±1000mA, ±415mA, ±330mA
Output Power (Watts): 10
Short Circuit Protection: Continuous, Automatic Recovery
Over Voltage Protection: Yes
General
Efficiency: Up to 87%
Isolation: 3000VDC
Environmental
Operating Temperature: -40 to 85°C
Storage Temperature: -55 to 105°C

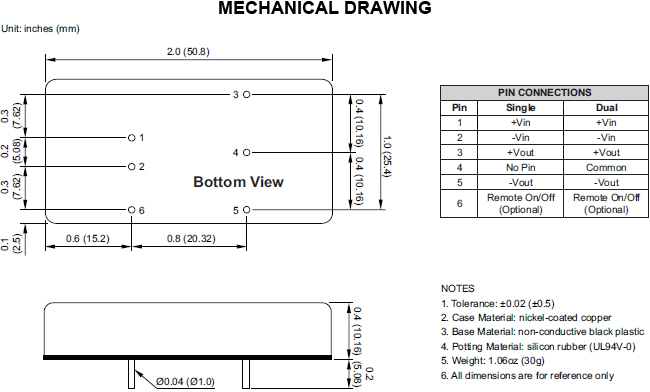

Physical
Weight: 1.06 oz
Dimensions: 2.0 x 1.0 x 0.4
Case Material: Nickel-Coated Copper
Notes & safety
Notes: 1. Some models require a minimum loading on the output. Output current under this value will not damage these devices; however, they may not meet all listed specifications.
*Due to advances in technology, specifications subject to change without notice.
RoHS Compliance: Yes
