DCHF500
The DCHF500 series of DC/DC power converters offers up to 504W output power in an 8.46 x 4.53 x 1.97 enclosed case. This series has 12VDC and 24VDC single output models with either a 2:1 input voltage range of 72-144VDC or a 4:1 input voltage range of 19-72VDC. Some features include ±10% output adjustability, remote sense (optional), remote ON/OFF control (optional), and a built-in fan. These supplies are RoHS compliant and are protected against short circuit, over voltage, over load, and over temperature conditions. All supplies in this series are 100% full load burn-in tested.
| Model Number | Input Voltage | Output Voltage | Output Current | Output Power (W) | No. Outputs | Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DCHF500W-SMD48-12 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 40.0 A | Output Power (W): 480 | No. Outputs: S | Case: Chassis Mount | Size: 8.46" x 4.53" x 1.97" | Get a Quote |
| DCHF500W-SMD110-12 | Input Voltage: 110 | Output Voltage: 12 | Output Current: 40.0 A | Output Power (W): 480 | No. Outputs: S | Case: Chassis Mount | Size: 8.46" x 4.53" x 1.97" | Get a Quote |
| DCHF500W-SMD48-24 | Input Voltage: 48 | Output Voltage: 24 | Output Current: 21.0 A | Output Power (W): 504 | No. Outputs: S | Case: Chassis Mount | Size: 8.46" x 4.53" x 1.97" | Get a Quote |
| DCHF500W-SMD110-24 | Input Voltage: 110 | Output Voltage: 24 | Output Current: 21.0 A | Output Power (W): 504 | No. Outputs: S | Case: Chassis Mount | Size: 8.46" x 4.53" x 1.97" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 48, 110 |
| Input Voltage Range: | 19~72, 72~144 |
| Input Frequency: | 0 Hz |
| Output | |
| Output Voltage: | 12, 24 |
| Output Current: | 40A, 21A |
| Output Power (Watts): | 480, 504 |
| Output Trim/Adjustability: | ±10% |
| Short Circuit Protection: | Yes |
| Over Voltage Protection: | 115-150% |
| Thermal Protection: | Yes |
| General | |
| Efficiency: | Up to 89% |
| Isolation: | 1000VDC |
| Environmental | |
| Operating Temperature: | -10 to 50°C |
| Storage Temperature: | -20 to 85°C |
| Physical | |
| Weight: | 2.4 lbs |

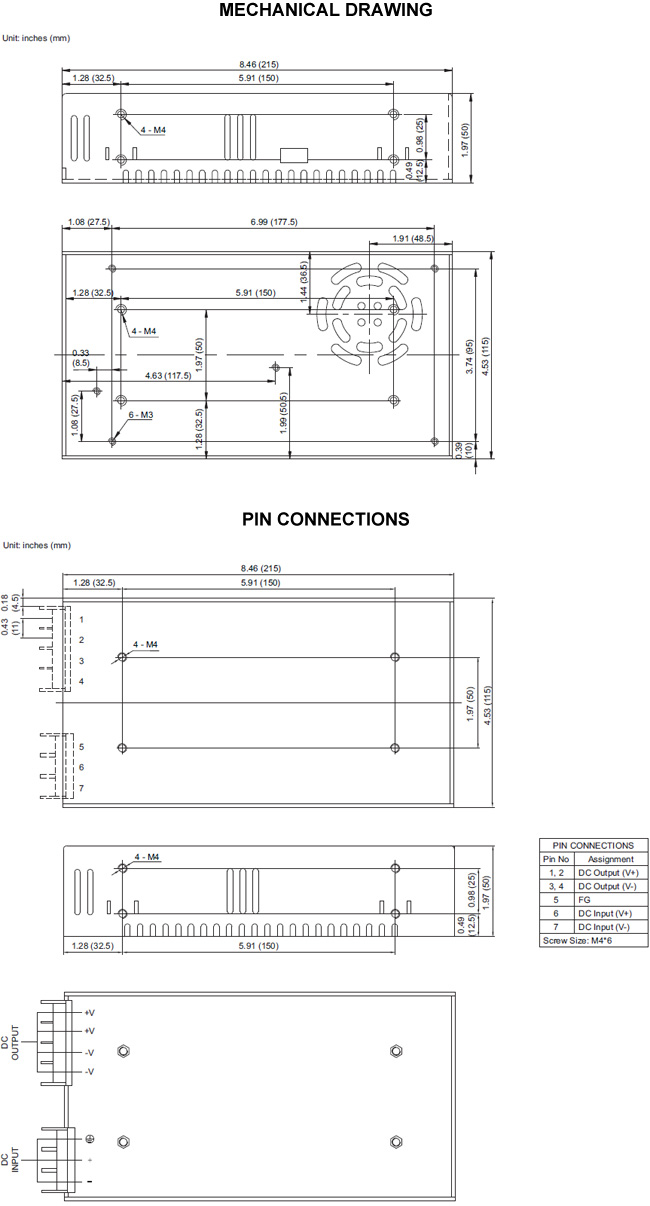

| Dimensions: | 8.46 x 4.53 x 1.97 |
| Notes & safety | |
| Notes: | *Due to advances in technology, specifications subject to change without notice. |
| RoHS Compliance: | Yes |
