DCHF30W

The DCHF30W series of DC/DC power converters offers from 30W to 41.5W of output power in a 5.08” x 3.86” x 1.57” enclosed case. This series has 2:1 input voltage ranges of 10-18VDC, 18-36VDC, 36-72VDC, and 72-144VDC. This series also has single, dual, and triple output models available. Some features include output adjustability, a built-in EMI filter, and short circuit and over load protection. All models in this series are RoHS compliant.

• Single, Dual, and Triple Outputs • RoHS Compliant • Output Voltage Adjustability • Free Air Convection • 2:1 Input Voltage Range • High Reliability • Built-in EMI Filter • 30~41.5W Output Power • Dimensions: 5.08 x 3.86 x 1.57 Inches • Short Circuit and Over Load Protected
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
DCHF30W-SD12-5 Input Voltage: 12 Output Voltage: 5 Output Current: 6.0 A Output Power (W): 30 No. Outputs: S Case: Chassis Mount Get a Quote
DCHF30W-SD12-12 Input Voltage: 12 Output Voltage: 12 Output Current: 2.5 A Output Power (W): 30 No. Outputs: S Case: Chassis Mount Get a Quote
DCHF30W-SD24-5 Input Voltage: 24 Output Voltage: 5 Output Current: 6.0 A Output Power (W): 30 No. Outputs: S Case: Chassis Mount Get a Quote
DCHF30W-SD24-12 Input Voltage: 24 Output Voltage: 12 Output Current: 2.5 A Output Power (W): 30 No. Outputs: S Case: Chassis Mount Get a Quote
DCHF30W-SD48-5 Input Voltage: 48 Output Voltage: 5 Output Current: 6.0 A Output Power (W): 30 No. Outputs: S Case: Chassis Mount Get a Quote
DCHF30W-SD48-12 Input Voltage: 48 Output Voltage: 12 Output Current: 2.5 A Output Power (W): 30 No. Outputs: S Case: Chassis Mount Get a Quote
DCHF30W-SD110-5 Input Voltage: 110 Output Voltage: 5 Output Current: 6.0 A Output Power (W): 30 No. Outputs: S Case: Chassis Mount Get a Quote
DCHF30W-SD110-12 Input Voltage: 110 Output Voltage: 12 Output Current: 2.5 A Output Power (W): 30 No. Outputs: S Case: Chassis Mount Get a Quote
DCHF30W-SD12-24 Input Voltage: 12 Output Voltage: 24 Output Current: 1.3 A Output Power (W): 31.2 No. Outputs: S Case: Chassis Mount Get a Quote
DCHF30W-SD24-24 Input Voltage: 24 Output Voltage: 24 Output Current: 1.3 A Output Power (W): 31.2 No. Outputs: S Case: Chassis Mount Get a Quote
DCHF30W-SD48-24 Input Voltage: 48 Output Voltage: 24 Output Current: 1.3 A Output Power (W): 31.2 No. Outputs: S Case: Chassis Mount Get a Quote
DCHF30W-SD110-24 Input Voltage: 110 Output Voltage: 24 Output Current: 1.3 A Output Power (W): 31.2 No. Outputs: S Case: Chassis Mount Get a Quote
DCHF30W-DD24-B Input Voltage: 24 Output Voltage: 15, -15 Output Current: 0.2~1.5A, 0~1A Output Power (W): 37.5 No. Outputs: D Case: Chassis Mount Get a Quote
DCHF30W-DD48-B Input Voltage: 48 Output Voltage: 15, -15 Output Current: 0.2~1.5A, 0~1A Output Power (W): 37.5 No. Outputs: D Case: Chassis Mount Get a Quote
DCHF30W-DD110-B Input Voltage: 110 Output Voltage: 15, -15 Output Current: 0.2~1.5A, 0~1A Output Power (W): 37.5 No. Outputs: D Case: Chassis Mount Get a Quote
DCHF30W-DD24-A Input Voltage: 24 Output Voltage: 5, 12 Output Current: 0.5~4A, 0.2~1.5A Output Power (W): 38 No. Outputs: D Case: Chassis Mount Get a Quote
DCHF30W-DD48-A Input Voltage: 48 Output Voltage: 5, 12 Output Current: 0.5~4A, 0.2~1.5A Output Power (W): 38 No. Outputs: D Case: Chassis Mount Get a Quote
DCHF30W-DD110-A Input Voltage: 110 Output Voltage: 5, 12 Output Current: 0.5~4A, 0.2~1.5A Output Power (W): 38 No. Outputs: D Case: Chassis Mount Get a Quote
DCHF30W-TD24-A Input Voltage: 24 Output Voltage: 5, 12, -12 Output Current: 0.5~3.5A, 0.1~1.2A, 0.1~0.8A Output Power (W): 41.5 No. Outputs: T Case: Chassis Mount Get a Quote
DCHF30W-TD48-A Input Voltage: 48 Output Voltage: 5, 12, -12 Output Current: 0.5~3.5A, 0.1~1.2A, 0.1~0.8A Output Power (W): 41.5 No. Outputs: T Case: Chassis Mount Get a Quote
DCHF30W-TD110-A Input Voltage: 110 Output Voltage: 5, 12, -12 Output Current: 0.5~3.5A, 0.1~1.2A, 0.1~0.8A Output Power (W): 41.5 No. Outputs: T Case: Chassis Mount Get a Quote
Specification Value
Input
Input Voltage (Nominal): 12, 24, 48, 110
Input Voltage Range: 10~18, 18~36, 36~72, 72~144
Input Frequency: 0 Hz
Output
Output Voltage: 5, 12, 24, 5, -12, -15
Output Current: 6A, 2.5A, 1.3A, 4A, 1.5A, 3.5A, 1.2A, 0.8A, 1A
Output Power (Watts): 30, 31.2, 38, 41.5, 37.5
Output Trim/Adjustability: Single Output Models: ±10% Multi-Output Models (V1): ±5%
Short Circuit Protection: Yes
General
Efficiency: Up to 74%
Isolation: 1000VDC
Environmental
Operating Temperature: -10 to 50°C
Storage Temperature: -20 to 85°C
Physical
Weight: 11.64 oz

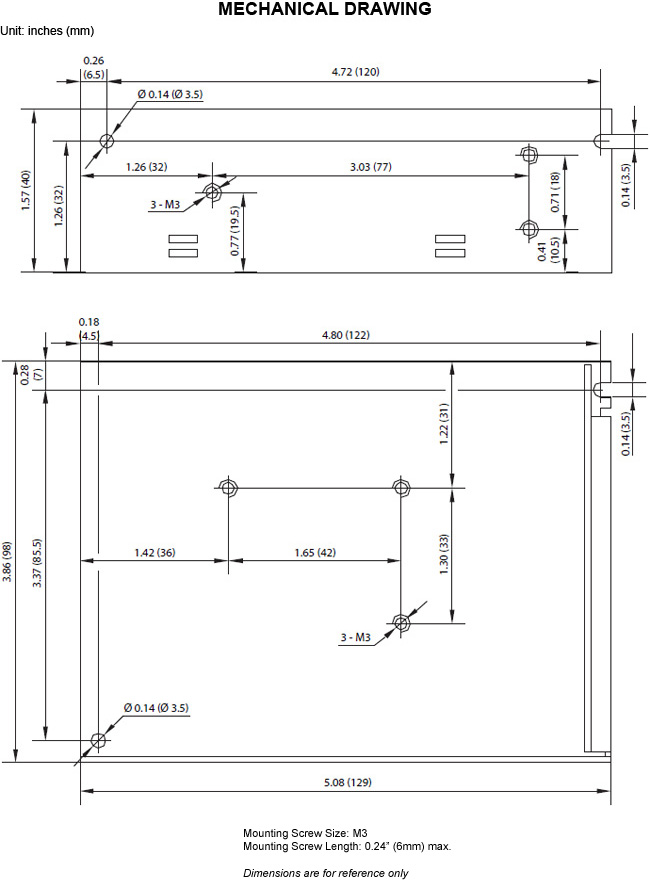

Dimensions: 5.08 x 3.86 x 1.57
Notes & safety
Notes: *Due to advances in technology, specifications subject to change without notice.
RoHS Compliance: Yes
