DCHF300W
DCHF300W series of DC/DC power converters offers 300W output power in an 8.46 x 4.53 x 1.97 enclosed case. This series has 2:1 input voltage ranges of 18~36VDC, 36-72VDC and 72-144VDC and 12VDC, 24VDC, and 48VDC single outputs available. Some features include ±10% output adjustability and built-in fan speed control. These supplies are RoHS compliant and are protected against short circuit, over voltage, over current, and over temperature conditions. The design refers to GB4943, UL60950, and EN60950 safety standards
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DCHF300W-SD48-12 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 25 A | Output Power (W): 300 | No. Outputs: S | Case: Chassis Mount | Size: 8.46" x 4.53" x 1.97" | Get a Quote |
| DCHF300W-SD48-24 | Input Voltage: 48 | Output Voltage: 24 | Output Current: 12.5 A | Output Power (W): 300 | No. Outputs: S | Case: Chassis Mount | Size: 8.46" x 4.53" x 1.97" | Get a Quote |
| DCHF300W-SD110-12 | Input Voltage: 110 | Output Voltage: 12 | Output Current: 25 A | Output Power (W): 300 | No. Outputs: S | Case: Chassis Mount | Size: 8.46" x 4.53" x 1.97" | Get a Quote |
| DCHF300W-SD110-24 | Input Voltage: 110 | Output Voltage: 24 | Output Current: 12.5 A | Output Power (W): 300 | No. Outputs: S | Case: Chassis Mount | Size: 8.46" x 4.53" x 1.97" | Get a Quote |
| DCHF300W-SD24-12 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 25 A | Output Power (W): 300 | No. Outputs: S | Case: Chassis Mount | Size: 8.46" x 4.53" x 1.97" | Get a Quote |
| DCHF300W-SD24-24 | Input Voltage: 24 | Output Voltage: 24 | Output Current: 12.5 A | Output Power (W): 300 | No. Outputs: S | Case: Chassis Mount | Size: 8.46" x 4.53" x 1.97" | Get a Quote |
| DCHF300W-SD48-48 | Input Voltage: 48 | Output Voltage: 48 | Output Current: 6.3 A | Output Power (W): 302.4 | No. Outputs: S | Case: Chassis Mount | Size: 8.46" x 4.53" x 1.97" | Get a Quote |
| DCHF300W-SD110-48 | Input Voltage: 110 | Output Voltage: 48 | Output Current: 6.3 A | Output Power (W): 302.4 | No. Outputs: S | Case: Chassis Mount | Size: 8.46" x 4.53" x 1.97" | Get a Quote |
| DCHF300W-SD24-48 | Input Voltage: 24 | Output Voltage: 48 | Output Current: 6.3 A | Output Power (W): 302.4 | No. Outputs: S | Case: Chassis Mount | Size: 8.46" x 4.53" x 1.97" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 24, 48, 110 |
| Input Voltage Range: | 18~36, 36~72, 72~144 |
| Input Frequency: | 0 Hz |
| Output | |
| Output Voltage: | 12, 24, 48 |
| Output Current: | 25A, 12.5A, 6.3A |
| Output Power (Watts): | 300, 302.4 |
| Output Trim/Adjustability: | ±10% |
| Short Circuit Protection: | Yes |
| Over Voltage Protection: | 115-150% |
| Thermal Protection: | Yes |
| General | |
| Efficiency: | Up to 89% |
| Isolation: | 1000VDC |
| Environmental | |
| Operating Temperature: | -20 to 50°C |
| Storage Temperature: | -20 to 85°C |
| Physical | |
| Weight: | 2.89 lbs |

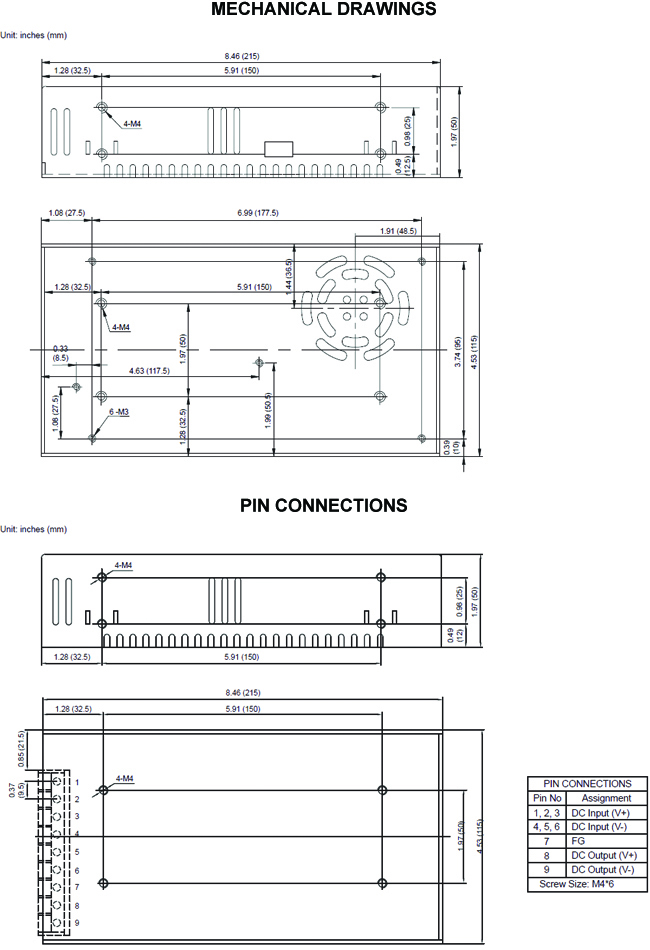

| Dimensions: | 8.46 x 4.53 x 1.97 |
| Notes & safety | |
| Notes: | 1. Line regulation is measured from low line to high line at rated load. 2. Load regulation is measured from 0% to 100% of rated load for single output models. 3. Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1uF & 47uF parallel capacitor. 4. This power supply is regarded as a component that will be installed into the final equipment. Final equipment must be re-confirmed that it still meets EMC directives. 5. This product is Listed to applicable standards and requirements by UL. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | GB4943, UL60950, EN60950 |
| RoHS Compliance: | Yes |
