DCHF150W
The DCHF150W series of DC/DC power converters offers up to 151.2 Watts of output power in a 7.83” x 3.86” x 1.97” enclosed case. This series consists of 12V, 24V, and 48VDC single output models with 2:1 input voltage ranges of 18-36VDC, 36-72VDC, and 72-144VDC. Some features include ±10% output adjustability, high efficiency up to 86%, and over load and short circuit protection. The DCHF150W series has GB4943, UL60950, and EN60950 safety approvals and meets GB9254, EN55022 Class A, and EN61000 EMC standards. These supplies are also RoHS compliant and have been 100% full load burn-in tested.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DCHF150W-SD24-48 | Input Voltage: 24 | Output Voltage: 48 | Output Current: 3.1A | Output Power (W): 148.8 | No. Outputs: S | Case: Chassis Mount | Size: 7.83" x 3.86" x 1.97" | Get a Quote |
| DCHF150W-SD48-48 | Input Voltage: 48 | Output Voltage: 48 | Output Current: 3.1A | Output Power (W): 148.8 | No. Outputs: S | Case: Chassis Mount | Size: 7.83" x 3.86" x 1.97" | Get a Quote |
| DCHF150W-SD110-48 | Input Voltage: 110 | Output Voltage: 48 | Output Current: 3.1A | Output Power (W): 148.8 | No. Outputs: S | Case: Chassis Mount | Size: 7.83" x 3.86" x 1.97" | Get a Quote |
| DCHF150W-SD24-12 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 12.5A | Output Power (W): 150 | No. Outputs: S | Case: Chassis Mount | Size: 7.83" x 3.86" x 1.97" | Get a Quote |
| DCHF150W-SD48-12 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 12.5A | Output Power (W): 150 | No. Outputs: S | Case: Chassis Mount | Size: 7.83" x 3.86" x 1.97" | Get a Quote |
| DCHF150W-SD110-12 | Input Voltage: 110 | Output Voltage: 12 | Output Current: 12.5A | Output Power (W): 150 | No. Outputs: S | Case: Chassis Mount | Size: 7.83" x 3.86" x 1.97" | Get a Quote |
| DCHF150W-SD24-24 | Input Voltage: 24 | Output Voltage: 24 | Output Current: 6.3A | Output Power (W): 151.2 | No. Outputs: S | Case: Chassis Mount | Size: 7.83" x 3.86" x 1.97" | Get a Quote |
| DCHF150W-SD48-24 | Input Voltage: 48 | Output Voltage: 24 | Output Current: 6.3A | Output Power (W): 151.2 | No. Outputs: S | Case: Chassis Mount | Size: 7.83" x 3.86" x 1.97" | Get a Quote |
| DCHF150W-SD110-24 | Input Voltage: 110 | Output Voltage: 24 | Output Current: 6.3A | Output Power (W): 151.2 | No. Outputs: S | Case: Chassis Mount | Size: 7.83" x 3.86" x 1.97" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 24, 48, 110 |
| Input Voltage Range: | 18~36, 36~72, 72~144 |
| Input Frequency: | 0 Hz |
| Output | |
| Output Voltage: | 12, 24, 48 |
| Output Current: | 12.5A, 6.3A, 3.1A |
| Output Power (Watts): | 148.8, 150, 151.2 |
| Output Trim/Adjustability: | ±10% |
| Short Circuit Protection: | Hiccup mode, automatic recovery |
| General | |
| Efficiency: | Up to 87% |
| Isolation: | 1500VDC |
| Environmental | |
| Operating Temperature: | -20 to 50°C |
| Storage Temperature: | -20 to 85°C |
| Physical | |
| Weight: | 1.46 lbs |

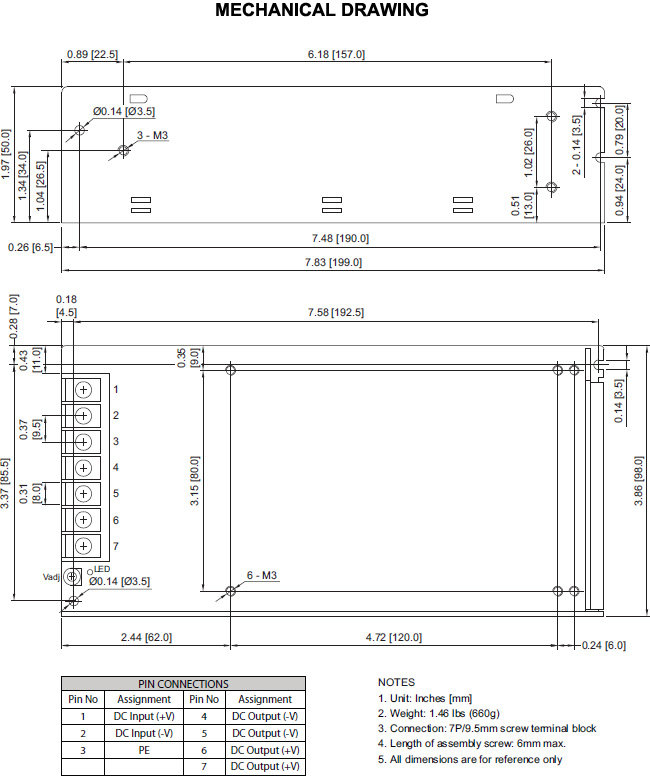

| Dimensions: | 7.83 x 3.86 x 1.97 |
| Notes & safety | |
| Notes: | 1. Ripple & noise is measured at 20MHz limited bandwidth and using a 12" twisted pair-wire terminated with a 0.1µF & 47µF capacitors in parallel. 2. The power supply is considered a component which will be installed into final equipment. The final equipment must be re-confirmed that it still meets EMC directives. 3. This product is Listed to applicable standards and requirements by UL. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | GB4943, UL60950, EN60950 |
| RoHS Compliance: | Yes |
