DCHF10W
The DCHF10W series of DC/DC power converters offers output power from 10~16.2 Watts in a 3.94” x 2.83” x 1.22” enclosed case. This series has 2:1 input voltage ranges of 10-18VDC, 18-36VDC, 36-72VDC, and 72-144VDC. This series also has single and dual output models available. Some features include output adjustability, a built-in EMI filter, and short circuit and over load protection. All models in this series are RoHS compliant.
• Single and Dual Outputs
• 2:1 Input Voltage Range
• High Reliability
• Electrolytic Capacitors all 105ºC
• Short Circuit and Over Load Protected
• RoHS Compliant
• Built-In EMI Filter
• Free Air Convection
• Design Refers to GB4943, UL60950, and EN6090
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DCHF10W-SD12-5 | Input Voltage: 12 | Output Voltage: 5 | Output Current: 2.0 A | Output Power (W): 10 | No. Outputs: S | Case: Chassis Mount | Size: 3.94" x 2.83" x 1.22" | Get a Quote |
| DCHF10W-SD24-5 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 2.0 A | Output Power (W): 10 | No. Outputs: S | Case: Chassis Mount | Size: 3.94" x 2.83" x 1.22" | Get a Quote |
| DCHF10W-SD48-5 | Input Voltage: 48 | Output Voltage: 5 | Output Current: 2.0 A | Output Power (W): 10 | No. Outputs: S | Case: Chassis Mount | Size: 3.94" x 2.83" x 1.22" | Get a Quote |
| DCHF10W-SD90-5 | Input Voltage: 90 | Output Voltage: 5 | Output Current: 2.0 A | Output Power (W): 10 | No. Outputs: S | Case: Chassis Mount | Size: 3.94" x 2.83" x 1.22" | Get a Quote |
| DCHF10W-SD110-5 | Input Voltage: 110 | Output Voltage: 5 | Output Current: 2.0 A | Output Power (W): 10 | No. Outputs: S | Case: Chassis Mount | Size: 3.94" x 2.83" x 1.22" | Get a Quote |
| DCHF10W-SD12-12 | Input Voltage: 12 | Output Voltage: 12 | Output Current: 1.0 A | Output Power (W): 12 | No. Outputs: S | Case: Chassis Mount | Size: 3.94" x 2.83" x 1.22" | Get a Quote |
| DCHF10W-SD12-24 | Input Voltage: 12 | Output Voltage: 24 | Output Current: 0.5 A | Output Power (W): 12 | No. Outputs: S | Case: Chassis Mount | Size: 3.94" x 2.83" x 1.22" | Get a Quote |
| DCHF10W-SD24-12 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 1.0 A | Output Power (W): 12 | No. Outputs: S | Case: Chassis Mount | Size: 3.94" x 2.83" x 1.22" | Get a Quote |
| DCHF10W-SD24-24 | Input Voltage: 24 | Output Voltage: 24 | Output Current: 0.5 A | Output Power (W): 12 | No. Outputs: S | Case: Chassis Mount | Size: 3.94" x 2.83" x 1.22" | Get a Quote |
| DCHF10W-SD48-12 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 1.0 A | Output Power (W): 12 | No. Outputs: S | Case: Chassis Mount | Size: 3.94" x 2.83" x 1.22" | Get a Quote |
| DCHF10W-SD48-24 | Input Voltage: 48 | Output Voltage: 24 | Output Current: 0.5 A | Output Power (W): 12 | No. Outputs: S | Case: Chassis Mount | Size: 3.94" x 2.83" x 1.22" | Get a Quote |
| DCHF10W-SD90-12 | Input Voltage: 90 | Output Voltage: 12 | Output Current: 1.0 A | Output Power (W): 12 | No. Outputs: S | Case: Chassis Mount | Size: 3.94" x 2.83" x 1.22" | Get a Quote |
| DCHF10W-SD90-24 | Input Voltage: 90 | Output Voltage: 24 | Output Current: 0.5 A | Output Power (W): 12 | No. Outputs: S | Case: Chassis Mount | Size: 3.94" x 2.83" x 1.22" | Get a Quote |
| DCHF10W-SD110-12 | Input Voltage: 110 | Output Voltage: 12 | Output Current: 1.0 A | Output Power (W): 12 | No. Outputs: S | Case: Chassis Mount | Size: 3.94" x 2.83" x 1.22" | Get a Quote |
| DCHF10W-SD110-24 | Input Voltage: 110 | Output Voltage: 24 | Output Current: 0.5 A | Output Power (W): 12 | No. Outputs: S | Case: Chassis Mount | Size: 3.94" x 2.83" x 1.22" | Get a Quote |
| DCHF10W-DD12-A | Input Voltage: 12 | Output Voltage: 5, 12 | Output Current: 0.2~1.8A, 0.1~0.5A | Output Power (W): 15 | No. Outputs: D | Case: Chassis Mount | Size: 3.94" x 2.83" x 1.22" | Get a Quote |
| DCHF10W-DD24-A | Input Voltage: 24 | Output Voltage: 5, 12 | Output Current: 0.2~1.8A, 0.1~0.5A | Output Power (W): 15 | No. Outputs: D | Case: Chassis Mount | Size: 3.94" x 2.83" x 1.22" | Get a Quote |
| DCHF10W-DD48-A | Input Voltage: 48 | Output Voltage: 5, 12 | Output Current: 0.2~1.8A, 0.1~0.5A | Output Power (W): 15 | No. Outputs: D | Case: Chassis Mount | Size: 3.94" x 2.83" x 1.22" | Get a Quote |
| DCHF10W-DD90-A | Input Voltage: 90 | Output Voltage: 5, 12 | Output Current: 0.2~1.8A, 0.1~0.5A | Output Power (W): 15 | No. Outputs: D | Case: Chassis Mount | Size: 3.94" x 2.83" x 1.22" | Get a Quote |
| DCHF10W-DD110-A | Input Voltage: 110 | Output Voltage: 5, 12 | Output Current: 0.2~1.8A, 0.1~0.5A | Output Power (W): 15 | No. Outputs: D | Case: Chassis Mount | Size: 3.94" x 2.83" x 1.22" | Get a Quote |
| DCHF10W-DD12-B | Input Voltage: 12 | Output Voltage: 5, 24 | Output Current: 0.2~1.8A, 0.05~0.3A | Output Power (W): 16.2 | No. Outputs: D | Case: Chassis Mount | Size: 3.94" x 2.83" x 1.22" | Get a Quote |
| DCHF10W-DD24-B | Input Voltage: 24 | Output Voltage: 5, 24 | Output Current: 0.2~1.8A, 0.05~0.3A | Output Power (W): 16.2 | No. Outputs: D | Case: Chassis Mount | Size: 3.94" x 2.83" x 1.22" | Get a Quote |
| DCHF10W-DD48-B | Input Voltage: 48 | Output Voltage: 5, 24 | Output Current: 0.2~1.8A, 0.05~0.3A | Output Power (W): 16.2 | No. Outputs: D | Case: Chassis Mount | Size: 3.94" x 2.83" x 1.22" | Get a Quote |
| DCHF10W-DD90-B | Input Voltage: 90 | Output Voltage: 5, 24 | Output Current: 0.2~1.8A, 0.05~0.3A | Output Power (W): 16.2 | No. Outputs: D | Case: Chassis Mount | Size: 3.94" x 2.83" x 1.22" | Get a Quote |
| DCHF10W-DD110-B | Input Voltage: 110 | Output Voltage: 5, 24 | Output Current: 0.2~1.8A, 0.05~0.3A | Output Power (W): 16.2 | No. Outputs: D | Case: Chassis Mount | Size: 3.94" x 2.83" x 1.22" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 12, 24, 48, 90, 110 |
| Input Voltage Range: | 10~18, 18~36, 36~72, 72~144 |
| Input Frequency: | 0 Hz |
| Output | |
| Output Voltage: | 5, 12, 24 |
| Output Current: | 2A, 1A, 0.5A, 1.8A, 0.5A, 0.3A |
| Output Power (Watts): | 10, 12, 15, 16.2 |
| Output Trim/Adjustability: | Single Output Models: ±10%Multi-Output Models (V1): ±5% |
| Short Circuit Protection: | Yes |
| General | |
| Efficiency: | Up to 76% |
| Isolation: | 1000VDC |
| Environmental | |
| Operating Temperature: | -20 to 50°C |
| Storage Temperature: | -20 to 85°C |
| Physical | |
| Weight: | 4.94 oz |

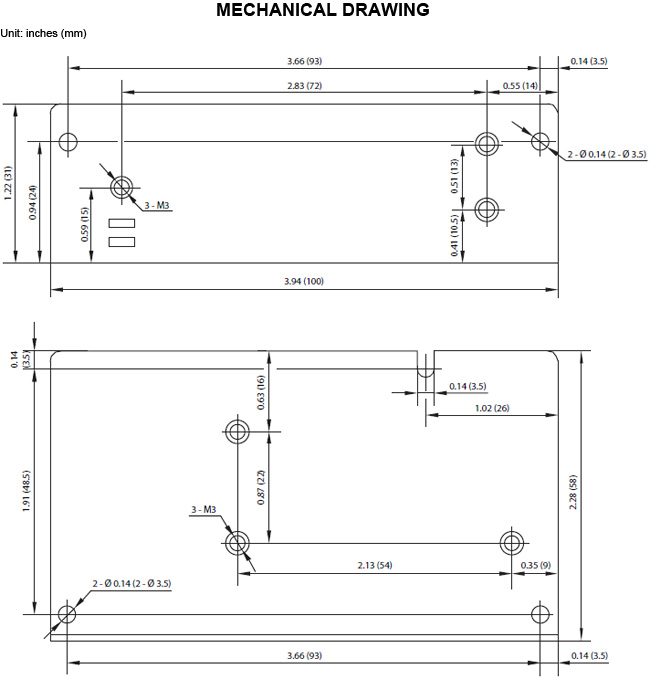

| Dimensions: | 3.94 x 2.83 x 1.22 |
| Notes & safety | |
| Notes: | 1. This product is Listed to applicable standards and requirements by UL. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | Design Refers to GB4943, UL60950, and EN6090 |
| RoHS Compliance: | Yes |
