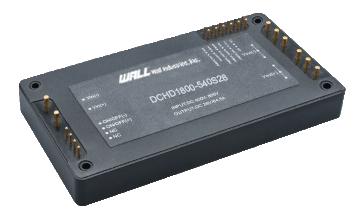

DCHD1800-540S28
The DCHD1800-540S28 model of DC/DC power modules offers 1800 watts of output power in a 4.69” x 2.49” x 0.53” full brick package. This is a 28VDC single output models with 400~800VDC wide input voltage range. Features of this model include high reliability, high efficiency, high power density, as well as low ripple and noise. This series is also protected against input over/under voltage conditions and over current, over voltage, over temperature, and short circuit conditions.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DCHD1800-540S28 | Input Voltage: 540 | Output Voltage: 28 | Output Current: 35.7A | Output Power (W): 1800 | No. Outputs: S | Case: Through Hole | Size: 4.69" x 2.49" x 0.53" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 540 |
| Input Voltage Range: | 400-800 |
| Remote ON/OFF: | Yes |
| Output | |
| Output Voltage: | 28 |
| Output Current: | 35.7A |
| Output Power (Watts): | 1800 |
| Short Circuit Protection: | Yes |
| Over Voltage Protection: | 110-140% |
| Thermal Protection: | Yes |
| General | |
| Efficiency: | Up to 95% |
| Isolation: | Up to 3000VAC |
| Environmental | |
| Operating Temperature: | -40 to 100°C |
| Storage Temperature: | -55 to 125°C |
| Physical | |
| Weight: | 14.11oz (400g) |

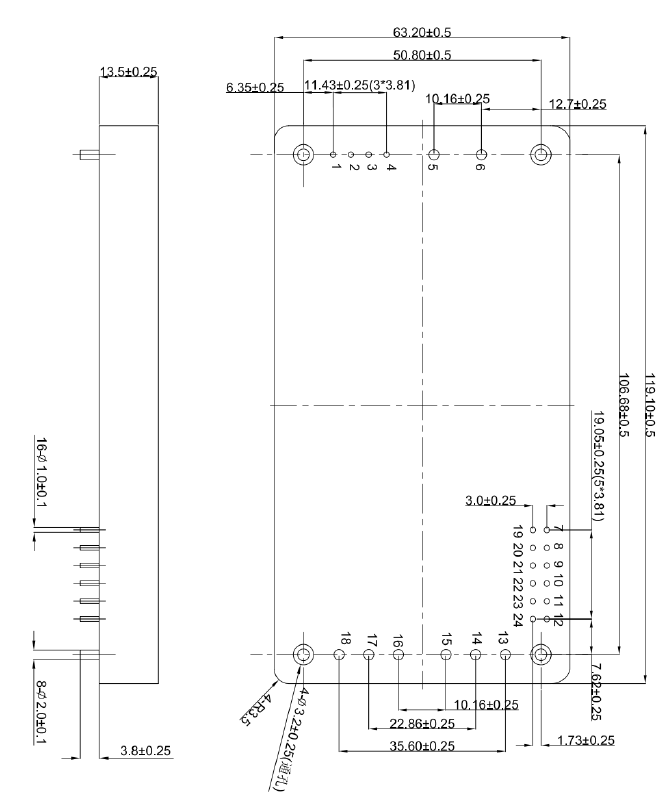

| Dimensions: | 4.69in x 2.49in x 0.53in (119.1mm x 63.2mm x 13.5mm) |
| Notes & safety | |
| Notes: | 1. 25%~50%~25%Io max, load step change di/dt=0.1A/µs, 75%~50%~75% Io max, load step change di/dt=0.1A/µs *Due to advances in technology, specifications subject to change without notice. |
