DCHB150
The DCHB150 series of DC/DC power converters provides up to 196 Watts of output power in an industry standard half-brick package and footprint. This series consists of single output models ranging from 3.3VDC to 48VDC with 2:1 wide input voltage ranges. These converters feature high efficiency, and have short circuit, over voltage, over current, and over temperature protection. The DCHB150 series is RoHS compliant and has IEC/EN/UL62368-1 safety approvals. Several different options are available for this series including negative remote on/off control, terminal block, pin length, heatsinks, sync pin, case pin, conformal coating and thru-hole inserts. Please call factory for more details.
• Soft Start
• 2:1 Wide Input Voltage Ranges
• 132~196 Watts output Power
• Single Outputs Ranging from 3.3VDC to 48VDC
• Output Current up to 40A
• High Efficiency up to 93%
• IEC/EN/UL62368-1 Safety Approvals
• No Minimum Load Requirements
• Industry Standard Half-Brick Footprint
• Remote On/Off Control
• Threaded Inserts and Thru-Hole Inserts Available
• Short Circuit, Over Voltage, Over Current, and Over Temperature Protection
• RoHS II & Reach Compliant

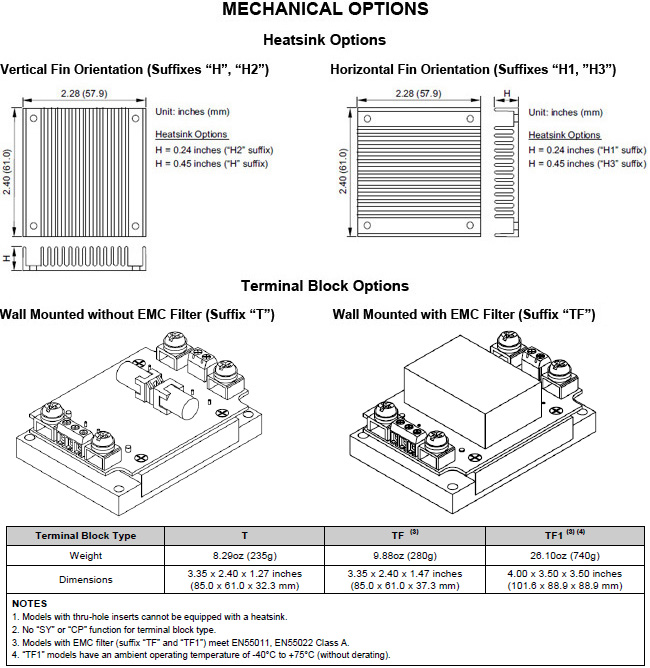

• Several Mechanical Options Available
Part Number Setup:
No Suffix: Through Hole

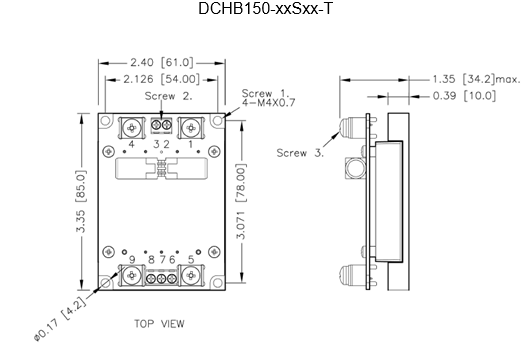

x: "T" for Wall Mounted

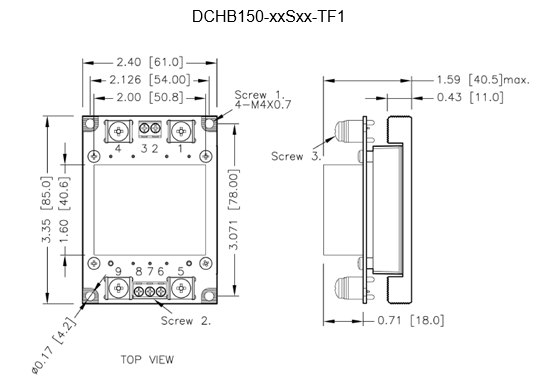

"TF1" for Wall Mounted with EMC Filter can be Connected to PE
Additional Options: Remote On/Off, Sync Pin, Case Pin, Thru-Hole Inserts, Heatsinks. See Data Sheet for additional details.
No Suffix: Through Hole
x: "T" for Wall Mounted
"TF1" for Wall Mounted with EMC Filter can be Connected to PE
Additional Options: Remote On/Off, Sync Pin, Case Pin, Thru-Hole Inserts, Heatsinks. See Data Sheet for additional details.
Example:
DCHB150-12S05T=Terminal Block
DCHB150-12S05T=Terminal Block
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DCHB150-12S3.3 | Input Voltage: 12 | Output Voltage: 3.3 | Output Current: 40A | Output Power (W): 132 | No. Outputs: S | Case: Through Hole | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHB150-24S3.3 | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 40A | Output Power (W): 132 | No. Outputs: S | Case: Through Hole | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHB150-12S3.3x | Input Voltage: 12 | Output Voltage: 3.3 | Output Current: 40A | Output Power (W): 132 | No. Outputs: S | Case: Chassis Mount | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHB150-24S3.3x | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 40A | Output Power (W): 132 | No. Outputs: S | Case: Chassis Mount | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHB150-12S05 | Input Voltage: 12 | Output Voltage: 5 | Output Current: 28A | Output Power (W): 140 | No. Outputs: S | Case: Through Hole | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHB150-12S28 | Input Voltage: 12 | Output Voltage: 28 | Output Current: 5A | Output Power (W): 140 | No. Outputs: S | Case: Through Hole | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHB150-12S05x | Input Voltage: 12 | Output Voltage: 5 | Output Current: 28A | Output Power (W): 140 | No. Outputs: S | Case: Chassis Mount | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHB150-12S28x | Input Voltage: 12 | Output Voltage: 28 | Output Current: 5A | Output Power (W): 140 | No. Outputs: S | Case: Chassis Mount | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHB150-12S15 | Input Voltage: 12 | Output Voltage: 15 | Output Current: 9.5A | Output Power (W): 142.5 | No. Outputs: S | Case: Through Hole | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHB150-12S15x | Input Voltage: 12 | Output Voltage: 15 | Output Current: 9.5A | Output Power (W): 142.5 | No. Outputs: S | Case: Chassis Mount | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHB150-12S12 | Input Voltage: 12 | Output Voltage: 12 | Output Current: 12A | Output Power (W): 144 | No. Outputs: S | Case: Through Hole | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHB150-12S24 | Input Voltage: 12 | Output Voltage: 24 | Output Current: 6A | Output Power (W): 144 | No. Outputs: S | Case: Through Hole | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHB150-12S48 | Input Voltage: 12 | Output Voltage: 48 | Output Current: 3A | Output Power (W): 144 | No. Outputs: S | Case: Through Hole | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHB150-12S12x | Input Voltage: 12 | Output Voltage: 12 | Output Current: 12A | Output Power (W): 144 | No. Outputs: S | Case: Chassis Mount | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHB150-12S24x | Input Voltage: 12 | Output Voltage: 24 | Output Current: 6A | Output Power (W): 144 | No. Outputs: S | Case: Chassis Mount | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHB150-12S48x | Input Voltage: 12 | Output Voltage: 48 | Output Current: 3A | Output Power (W): 144 | No. Outputs: S | Case: Chassis Mount | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHB150-48S3.3 | Input Voltage: 48 | Output Voltage: 3.3 | Output Current: 45A | Output Power (W): 148.5 | No. Outputs: S | Case: Through Hole | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHB150-48S3.3x | Input Voltage: 48 | Output Voltage: 3.3 | Output Current: 45A | Output Power (W): 148.5 | No. Outputs: S | Case: Chassis Mount | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHB150-24S05 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 30A | Output Power (W): 150 | No. Outputs: S | Case: Through Hole | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHB150-24S15 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 10A | Output Power (W): 150 | No. Outputs: S | Case: Through Hole | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHB150-24S05x | Input Voltage: 24 | Output Voltage: 5 | Output Current: 30A | Output Power (W): 150 | No. Outputs: S | Case: Chassis Mount | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHB150-24S15x | Input Voltage: 24 | Output Voltage: 15 | Output Current: 10A | Output Power (W): 150 | No. Outputs: S | Case: Chassis Mount | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHB150-24S28 | Input Voltage: 24 | Output Voltage: 28 | Output Current: 5.5A | Output Power (W): 154 | No. Outputs: S | Case: Through Hole | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHB150-24S28x | Input Voltage: 24 | Output Voltage: 28 | Output Current: 5.5A | Output Power (W): 154 | No. Outputs: S | Case: Chassis Mount | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHB150-24S12 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 13A | Output Power (W): 156 | No. Outputs: S | Case: Through Hole | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHB150-24S24 | Input Voltage: 24 | Output Voltage: 24 | Output Current: 6.5A | Output Power (W): 156 | No. Outputs: S | Case: Through Hole | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHB150-24S12x | Input Voltage: 24 | Output Voltage: 12 | Output Current: 13A | Output Power (W): 156 | No. Outputs: S | Case: Chassis Mount | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHB150-24S24x | Input Voltage: 24 | Output Voltage: 24 | Output Current: 6.5A | Output Power (W): 156 | No. Outputs: S | Case: Chassis Mount | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHB150-24S48 | Input Voltage: 24 | Output Voltage: 48 | Output Current: 3.3A | Output Power (W): 158.4 | No. Outputs: S | Case: Through Hole | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHB150-24S48x | Input Voltage: 24 | Output Voltage: 48 | Output Current: 3.3A | Output Power (W): 158.4 | No. Outputs: S | Case: Chassis Mount | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHB150-48S05 | Input Voltage: 48 | Output Voltage: 5 | Output Current: 34A | Output Power (W): 170 | No. Outputs: S | Case: Through Hole | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHB150-48S05x | Input Voltage: 48 | Output Voltage: 5 | Output Current: 34A | Output Power (W): 170 | No. Outputs: S | Case: Chassis Mount | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHB150-48S12 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 16A | Output Power (W): 192 | No. Outputs: S | Case: Through Hole | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHB150-48S24 | Input Voltage: 48 | Output Voltage: 24 | Output Current: 8A | Output Power (W): 192 | No. Outputs: S | Case: Through Hole | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHB150-48S48 | Input Voltage: 48 | Output Voltage: 48 | Output Current: 4A | Output Power (W): 192 | No. Outputs: S | Case: Through Hole | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHB150-48S12x | Input Voltage: 48 | Output Voltage: 12 | Output Current: 16A | Output Power (W): 192 | No. Outputs: S | Case: Chassis Mount | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHB150-48S24x | Input Voltage: 48 | Output Voltage: 24 | Output Current: 8A | Output Power (W): 192 | No. Outputs: S | Case: Chassis Mount | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHB150-48S48x | Input Voltage: 48 | Output Voltage: 48 | Output Current: 4A | Output Power (W): 192 | No. Outputs: S | Case: Chassis Mount | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHB150-48S15 | Input Voltage: 48 | Output Voltage: 15 | Output Current: 13A | Output Power (W): 195 | No. Outputs: S | Case: Through Hole | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHB150-48S15x | Input Voltage: 48 | Output Voltage: 15 | Output Current: 13A | Output Power (W): 195 | No. Outputs: S | Case: Chassis Mount | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHB150-48S28 | Input Voltage: 48 | Output Voltage: 28 | Output Current: 7A | Output Power (W): 196 | No. Outputs: S | Case: Through Hole | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHB150-48S53 | Input Voltage: 48 | Output Voltage: 53 | Output Current: 3.7A | Output Power (W): 196 | No. Outputs: S | Case: Through Hole | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHB150-48S28x | Input Voltage: 48 | Output Voltage: 28 | Output Current: 7A | Output Power (W): 196 | No. Outputs: S | Case: Chassis Mount | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCHB150-48S53x | Input Voltage: 48 | Output Voltage: 53 | Output Current: 3.7A | Output Power (W): 196 | No. Outputs: S | Case: Chassis Mount | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 12, 24, 48 |
| Input Voltage Range: | 16.5~36, 33~75, 8.5~22, 9~22 |
| Input Filter: | Pi type |
| Remote ON/OFF: | Yes |
| UVLO: | Yes |
| Input Frequency: | 0 Hz |
| Output | |
| Output Voltage: | 3.3, 5, 12, 15, 24, 28, 48, 53 |
| Voltage Accuracy: | ±1% |
| Output Current: | 40A, 28A, 12A, 9.5A, 6A, 5A, 3A, 30A, 13A, 10A, 6.5A, 5.5A, 3.3A, 45A, 34A, 16A, 13A, 8A, 7A, 4A, 3.7A |
| Output Power (Watts): | 132, 140, 144, 142.5, 148.5, 150, 154, 156, 158.4, 170, 192, 196 |
| Output Trim/Adjustability: | -20 - +10% |
| Short Circuit Protection: | continuous, automatic recovery |
| Over Voltage Protection: | 115-130% |
| Thermal Protection: | Yes |
| General | |
| Efficiency: | Up to 93% |
| Isolation: | 3000VDC |
| Environmental | |

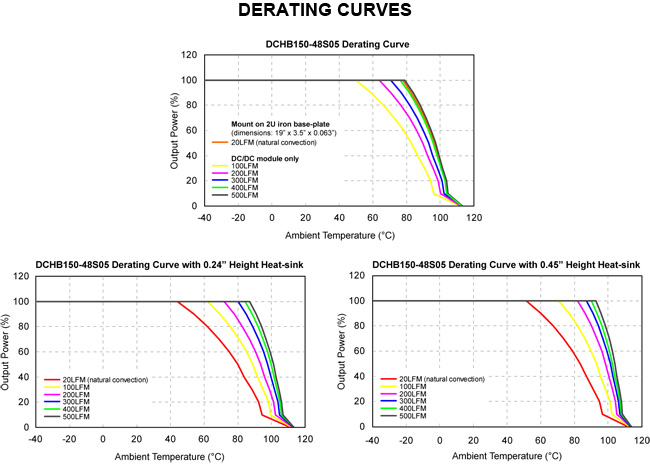

| Operating Temperature: | -40 to 115°C |
| Storage Temperature: | -55 to 125°C |
| Physical | |
| Weight: | 3.7 oz |

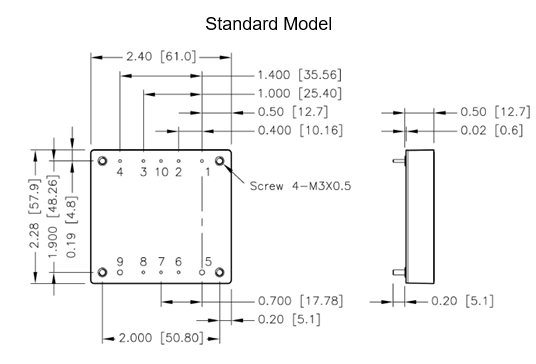

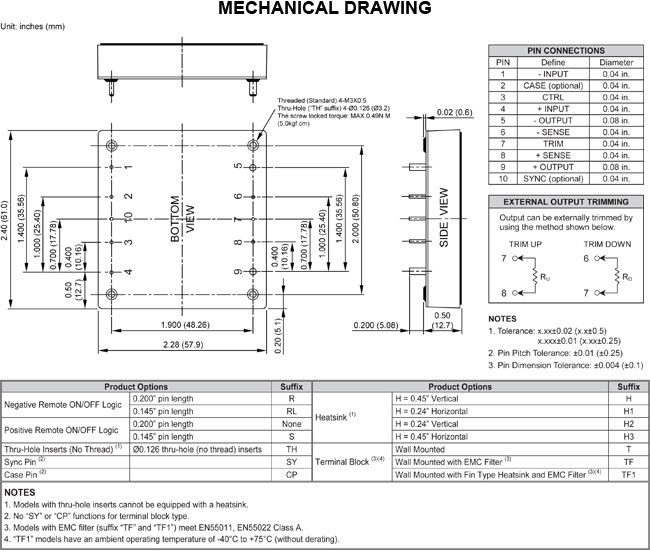

| Dimensions: | Standard: 2.4x2.28x0.5 inches (61x57.9x12.7 mm) “T” suffix models: 3.35x2.4x1.27 inches (85x61x32.3 mm) “TF1” suffix models: 4x3.5x3.5 inches (101.6x88.9x88.9 mm) |
| Case Material: | Metal |
| Notes & safety | |
| Notes: | (1) Input Source Impedance: These converters will meet all listed specifications without external components assuming that the source voltage has very low impedance and reasonable input voltage regulation. Highly inductive source impedances can affect the stability of the converter. Since real-world voltage sources have finite impedance, performance can be improved by adding an external filter capacitor. We recommend Nippon chemi-con KY series, 100μF/100V, ESR 110mΩ. (2) If remote sense is not being used, Sense pins should be connected to corresponding polarity OUTPUT pins. (3) This product is Listed to applicable standards and requirements by UL. (4) Connecting four screw bolds to shield plane will help to reduce the EMI. (5) With 2 pcs of aluminum electrolytic capacitor (Nippon Chemi-con KY series, 220µF/100V) CAUTION: This power converter is not internally fused. An input line fuse must always be used Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | IEC/EN/UL62368-1 |
| RoHS Compliance: | Yes |
