DCHAA
The DCHAA series of DC/DC power converters provides up to 6 Watts of continuous output power in a 1.25” x 0.80” x 0.50” 24-pin DIP package. This series consists of single and dual output models with 2:1 input voltage ranges of 9~18VDC, 18~36VDC, and 36~75VDC. Some features include high efficiency up to 85%, 4000VACrms I/O isolation, -40°C to +85°C operating temperature range, and no minimum load requirement. The DCHAA series is RoHS and UL94V-0 compliant. These converters are best suited for use in battery operated equipment, measurement equipment, telecom, wireless networks, industry control systems, and anywhere where isolated and compact size are required.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |

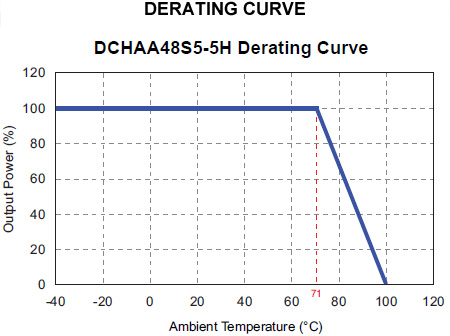

Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DCHAA12S5-5H | Input Voltage: 12 | Output Voltage: 5 | Output Current: 1000mA | Output Power (W): 5 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.5" | Get a Quote |
| DCHAA24S5-5H | Input Voltage: 24 | Output Voltage: 5 | Output Current: 1000mA | Output Power (W): 5 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.5" | Get a Quote |
| DCHAA48S5-5H | Input Voltage: 48 | Output Voltage: 5 | Output Current: 1000mA | Output Power (W): 5 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.5" | Get a Quote |
| DCHAA12S12-6H | Input Voltage: 12 | Output Voltage: 12 | Output Current: 500mA | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.5" | Get a Quote |
| DCHAA24S12-6H | Input Voltage: 24 | Output Voltage: 12 | Output Current: 500mA | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.5" | Get a Quote |
| DCHAA48S12-6H | Input Voltage: 48 | Output Voltage: 12 | Output Current: 500mA | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.5" | Get a Quote |
| DCHAA12D12-6H | Input Voltage: 12 | Output Voltage: 12, -12 | Output Current: ±250mA | Output Power (W): 6 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.5" | Get a Quote |
| DCHAA12D15-6H | Input Voltage: 12 | Output Voltage: 15, -15 | Output Current: ±200mA | Output Power (W): 6 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.5" | Get a Quote |
| DCHAA24D12-6H | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±250mA | Output Power (W): 6 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.5" | Get a Quote |
| DCHAA24D15-6H | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±200mA | Output Power (W): 6 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.5" | Get a Quote |
| DCHAA48D12-6H | Input Voltage: 48 | Output Voltage: 12, -12 | Output Current: ±250mA | Output Power (W): 6 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.5" | Get a Quote |
| DCHAA48D15-6H | Input Voltage: 48 | Output Voltage: 15, -15 | Output Current: ±200mA | Output Power (W): 6 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.5" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 12, 24, 48 |
| Input Voltage Range: | 18~36, 36~75, 9~18 |
| Input Filter: | Pi type |
| Input Frequency: | 0 Hz |
| Output | |
| Output Voltage: | 5, 12, ±12, ±15 |
| Voltage Accuracy: | ±1% |
| Output Current: | 1000mA, 500mA, ±250mA, ±200mA |
| Output Power (Watts): | 5, 6 |
| Short Circuit Protection: | continuous, automatic recovery |
| Over Voltage Protection: | Yes |
| General | |
| Efficiency: | Up to 85% |
| Isolation: | 4000VACrms |
| Environmental | |
| Operating Temperature: | -40 to 85°C |
| Storage Temperature: | -55 to 125°C |
| Physical | |
| Weight: | 0.56 oz |

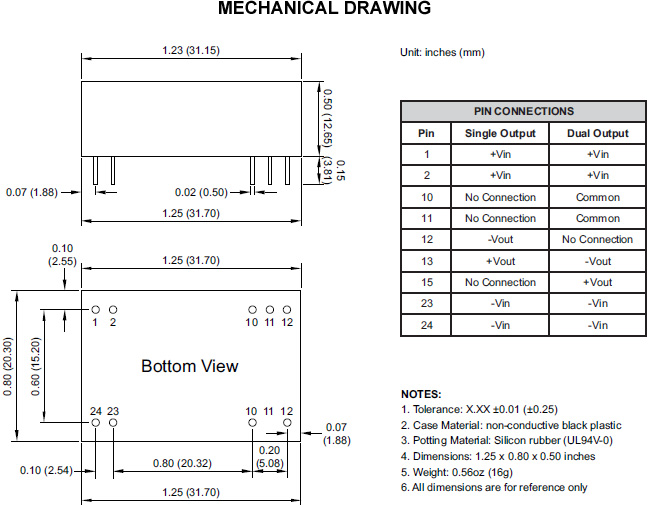

| Dimensions: | 1.25 x 0.80 x 0.50 |
| Case Material: | Non-conductive black plastic |
| Notes & safety | |
| Notes: | 1. Typical value tested at nominal input and full load. 2. For each output. Due to advances in technology, specifications subject to change without notice. |
| RoHS Compliance: | Yes |
