DCFP1
The DCFP1 series of isolated DC/DC converters offers 1 watt of output power in an ultra-compact 0.46” x 0.24” x 0.40” SIP package. This series consists of single output models with wide input voltage ranges and high efficiency. Each model features a lead free design, short circuit protection, and an industry-standard footprint. This series meets IEC/EN60950-1 safety approval.
• 4Pin SIP Package
• Industry-Standard Footprint
• High Efficiency
• Lead Free Design
• RoHS Compliant
• Short Circuit Protection
• Compact Size
• Meets IEC/EN60950-1 Safety Approval
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DCFP1-33S33 | Input Voltage: 3.3 | Output Voltage: 3.3 | Output Current: 300mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.46" x 0.24" x 0.40" | Get a Quote |
| DCFP1-33S05 | Input Voltage: 3.3 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.46" x 0.24" x 0.40" | Get a Quote |
| DCFP1-05S33 | Input Voltage: 5 | Output Voltage: 3.3 | Output Current: 300mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.46" x 0.24" x 0.40" | Get a Quote |
| DCFP1-05S05 | Input Voltage: 5 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.46" x 0.24" x 0.40" | Get a Quote |
| DCFP1-05S09 | Input Voltage: 5 | Output Voltage: 9 | Output Current: 110mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.46" x 0.24" x 0.40" | Get a Quote |
| DCFP1-05S12 | Input Voltage: 5 | Output Voltage: 12 | Output Current: 83mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.46" x 0.24" x 0.40" | Get a Quote |
| DCFP1-05S15 | Input Voltage: 5 | Output Voltage: 15 | Output Current: 67mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.46" x 0.24" x 0.40" | Get a Quote |
| DCFP1-05S24 | Input Voltage: 5 | Output Voltage: 24 | Output Current: 42mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.46" x 0.24" x 0.40" | Get a Quote |
| DCFP1-12S33 | Input Voltage: 12 | Output Voltage: 3.3 | Output Current: 300mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.46" x 0.24" x 0.40" | Get a Quote |
| DCFP1-12S05 | Input Voltage: 12 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.46" x 0.24" x 0.40" | Get a Quote |
| DCFP1-12S09 | Input Voltage: 12 | Output Voltage: 9 | Output Current: 110mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.46" x 0.24" x 0.40" | Get a Quote |
| DCFP1-12S12 | Input Voltage: 12 | Output Voltage: 12 | Output Current: 83mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.46" x 0.24" x 0.40" | Get a Quote |
| DCFP1-12S15 | Input Voltage: 12 | Output Voltage: 15 | Output Current: 67mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.46" x 0.24" x 0.40" | Get a Quote |
| DCFP1-15S33 | Input Voltage: 15 | Output Voltage: 3.3 | Output Current: 300mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.46" x 0.24" x 0.40" | Get a Quote |
| DCFP1-15S05 | Input Voltage: 15 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.46" x 0.24" x 0.40" | Get a Quote |
| DCFP1-15S09 | Input Voltage: 15 | Output Voltage: 9 | Output Current: 110mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.46" x 0.24" x 0.40" | Get a Quote |
| DCFP1-15S12 | Input Voltage: 15 | Output Voltage: 12 | Output Current: 83mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.46" x 0.24" x 0.40" | Get a Quote |
| DCFP1-15S15 | Input Voltage: 15 | Output Voltage: 15 | Output Current: 67mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.46" x 0.24" x 0.40" | Get a Quote |
| DCFP1-24S33 | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 300mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.46" x 0.24" x 0.40" | Get a Quote |
| DCFP1-24S05 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.46" x 0.24" x 0.40" | Get a Quote |
| DCFP1-24S05 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.46" x 0.24" x 0.40" | Get a Quote |
| DCFP1-24S09 | Input Voltage: 24 | Output Voltage: 9 | Output Current: 110mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.46" x 0.24" x 0.40" | Get a Quote |
| DCFP1-24S12 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 83mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.46" x 0.24" x 0.40" | Get a Quote |
| DCFP1-24S15 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 67mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.46" x 0.24" x 0.40" | Get a Quote |
| DCFP1R-05S05 | Input Voltage: 5 | Output Voltage: 5 | Output Current: 100mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.46" x 0.24" x 0.40" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 3.3, 5, 12, 15, 24 |
| Input Voltage Range: | 2.97~3.63, 4.5~5.5, 10.8~13.2, 13.5~16.5, 21.6~26.4 |
| Input Filter: | Capacitor |
| Output | |
| Output Voltage: | 3.3, 5, 9, 12, 15, 24 |
| Voltage Accuracy: | 3.3VDC Models: 3.135 - 3.399VDC 5VDC Models: 4.75 - 5.15VDC 9VDC Models: 8.73 - 9.18VDC 12VDC Models: 11.64 - 12.24VDC 15VDC Models: 14.55 - 15.30VDC 24VDC Models: 23.52 - 24.36VDC |
| Output Current: | 42mA, 67mA, 83mA, 110mA, 200mA, 300mA |
| Output Power (Watts): | 1 |
| Short Circuit Protection: | Yes |
| General | |
| Efficiency: | Up to 81% |
| Isolation: | 1500VDC |
| Environmental | |
| Operating Temperature: | -40 to 105°C |
| Storage Temperature: | -55 to 125°C |
| Physical | |
| Weight: | 0.053oz (1.5g) |

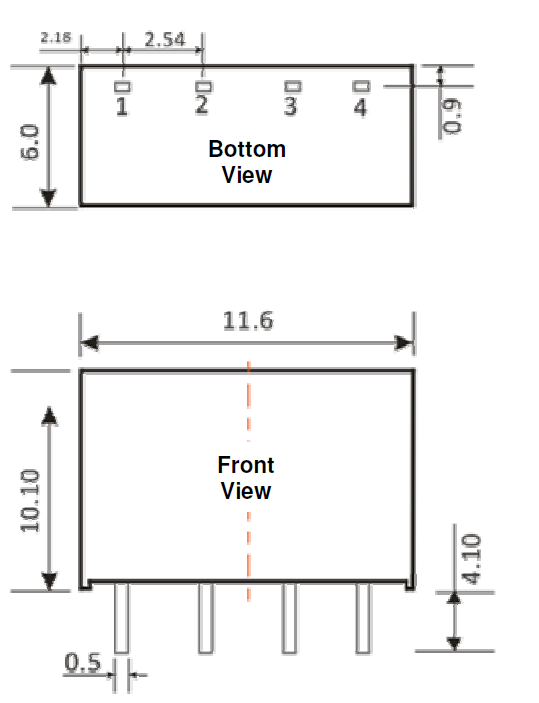

| Dimensions: | 0.46in x 0.24in x 0.40in (11.6mm x 6mm x 10.10mm) |
| Case Material: | Plastic (UL94 V-0) |
| Notes & safety | |
| Notes: | 1. In case of long input lines or hot plug-in requirements, we recommend using an external low ESR capacitor (22uF) near the converters input pins. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | IEC/EN60950-1 |
| RoHS Compliance: | Yes |
