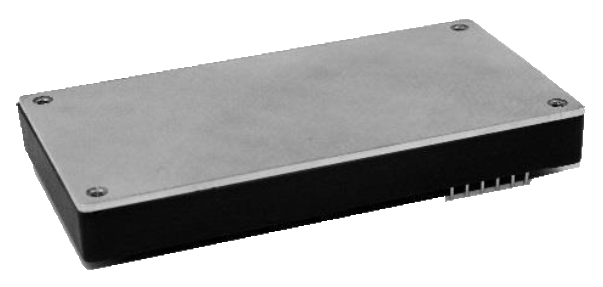

The DCFHB600-24S28 model of DC/DC converters offers 600 watts of output power in a compact 4.60” x 2.4” x 0.5” full brick package. This is an adjustable single output model with an input voltage range of 18~36VDC. This model also features high efficiency and power density, a metal base plate, remote on/off control, and I.O.G (DC Good). The DCFBH600-24S28 model is protected against over voltage, under voltage, over temperature, current limit, and short circuit conditions and it is useful in centralized modular and distributed power applications.

• Input Voltage Range of 18~36VDC • High Efficiency & Power Density • Metal Baseplate • Remote On/Off Control • Low Output Noise • Industry-Standard Size • Over Voltage, Under Voltage, Over Temperature, Current Limit, and Short Circuit Protection • I.O.G. (DC Good): Open Collector Output
Power (W)
Case Size
DCFBH600-24S28 Input Voltage: 24 Output Voltage: 28 Output Current: 21.5A Output Power (W): 600 No. Outputs: S Case: Through Hole Size: 4.59" x 2.4" x 0.5" Get a Quote
Specification Value
Input Voltage (Nominal): 24
Input Voltage Range: 18~36
Output Voltage: 28
Voltage Accuracy: 27.72~28.28V
Output Current: 21.5A
Output Power (Watts): 600
Output Trim/Adjustability: 6~110%Vo, Set
Short Circuit Protection: Yes
Over Voltage Protection: 115-135%Vo, set
Efficiency: 91%
Isolation: Input to Output: 1500VDC
Input to Case: 1500VDC
Output to Case: 500VDC
Operating Temperature: -40 to +100ºC
Storage Temperature: -55 to +125ºC
Weight: 7.94oz (225g)
Dimensions: 4.59in x 2.4in x 0.5in (116.8mm x 61mm x 12.7mm)
Notes & safety
Notes: NOTES
1. Bandwidth 5Hz-20MHz with filter 0.1uF MLCC series 100 ohm Min. Output capacitor: 220uF*2, Tc ≥ -20ºC, 220uF*4, Tc ≤ -20ºC
2. Temperature measure should be taken from baseplate (Tb). Refer to Baseplate Measure Point drawing for location.
*Due to advances in technology, specifications subject to change without notice.
