DCDW10

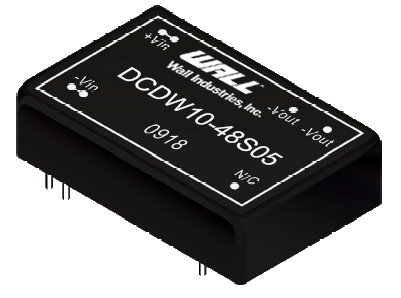

The DCDW10 series of DC/DC converters offers up to 10 watts of output power in a very compact 1.24” x 0.79” x 0.39” DIL package. This series consists of both single and dual output models with wide 4:1 input voltage range. The DCDW10 series features high efficiency, short circuit protection, and UL94V-0 package material. This series is for medical, industrial, or ITE applications, is RoHS compliant, and has been 100% burned-in. Please contact factory for ordering information.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DCDW10-24S33 | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 2500mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 1.24" x 0.79" x 0.39" | Get a Quote |
| DCDW10-24S05 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 2000mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 1.24" x 0.79" x 0.39" | Get a Quote |
| DCDW10-24S12 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 833mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 1.24" x 0.79" x 0.39" | Get a Quote |
| DCDW10-24S15 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 670mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 1.24" x 0.79" x 0.39" | Get a Quote |
| DCDW10-48S33 | Input Voltage: 48 | Output Voltage: 3.3 | Output Current: 2500mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 1.24" x 0.79" x 0.39" | Get a Quote |
| DCDW10-48S05 | Input Voltage: 48 | Output Voltage: 5 | Output Current: 2000mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 1.24" x 0.79" x 0.39" | Get a Quote |
| DCDW10-48S12 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 833mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 1.24" x 0.79" x 0.39" | Get a Quote |
| DCDW10-48S15 | Input Voltage: 48 | Output Voltage: 15 | Output Current: 670mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 1.24" x 0.79" x 0.39" | Get a Quote |
| DCDW10-24D05 | Input Voltage: 24 | Output Voltage: 5, -5 | Output Current: ±1000mA | Output Power (W): 10 | No. Outputs: D | Case: Through Hole | Size: 1.24" x 0.79" x 0.39" | Get a Quote |
| DCDW10-24D12 | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±420mA | Output Power (W): 10 | No. Outputs: D | Case: Through Hole | Size: 1.24" x 0.79" x 0.39" | Get a Quote |
| DCDW10-24D15 | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±340mA | Output Power (W): 10 | No. Outputs: D | Case: Through Hole | Size: 1.24" x 0.79" x 0.39" | Get a Quote |
| DCDW10-48D05 | Input Voltage: 48 | Output Voltage: 5, -5 | Output Current: ±1000mA | Output Power (W): 10 | No. Outputs: D | Case: Through Hole | Size: 1.24" x 0.79" x 0.39" | Get a Quote |
| DCDW10-48D12 | Input Voltage: 48 | Output Voltage: 12, -12 | Output Current: ±420mA | Output Power (W): 10 | No. Outputs: D | Case: Through Hole | Size: 1.24" x 0.79" x 0.39" | Get a Quote |
| DCDW10-48D15 | Input Voltage: 48 | Output Voltage: 15, -15 | Output Current: ±340mA | Output Power (W): 10 | No. Outputs: D | Case: Through Hole | Size: 1.24" x 0.79" x 0.39" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 24, 48 |
| Input Voltage Range: | 9~36, 18~75 |
| Input Filter: | Pi Network |
| Output | |
| Output Voltage: | 3.3, 5, 12, 15, ±5, ±12, ±15 |
| Output Current: | 670mA, 833mA, 2000mA, 2500mA, ±340mA, ±420mA, ±1000mA |
| Output Power (Watts): | 10 |
| Short Circuit Protection: | Hiccup Mode, Automatic Recovery |
| General | |
| Efficiency: | Up to 85% |
| Isolation: | 5000VAC |
| Environmental | |
| Operating Temperature: | -40 to 100ºC |
| Storage Temperature: | -55 to 125ºC |
| Physical | |
| Weight: | 0.55oz (15.5g) |

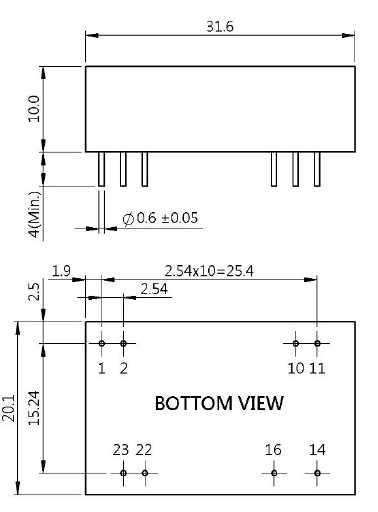

| Dimensions: | 1.24in x 0.79in x 0.39in (31.6mm x 20.1mm x 10mm) |
| Case Material: | Plastic |
| Notes & safety | |
| Notes: | *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | EMI EN 55011:2009 + A1:2010 Class A, EMS EN60601-1-2: 2015 |
| RoHS Compliance: | Yes |
