DCDT15

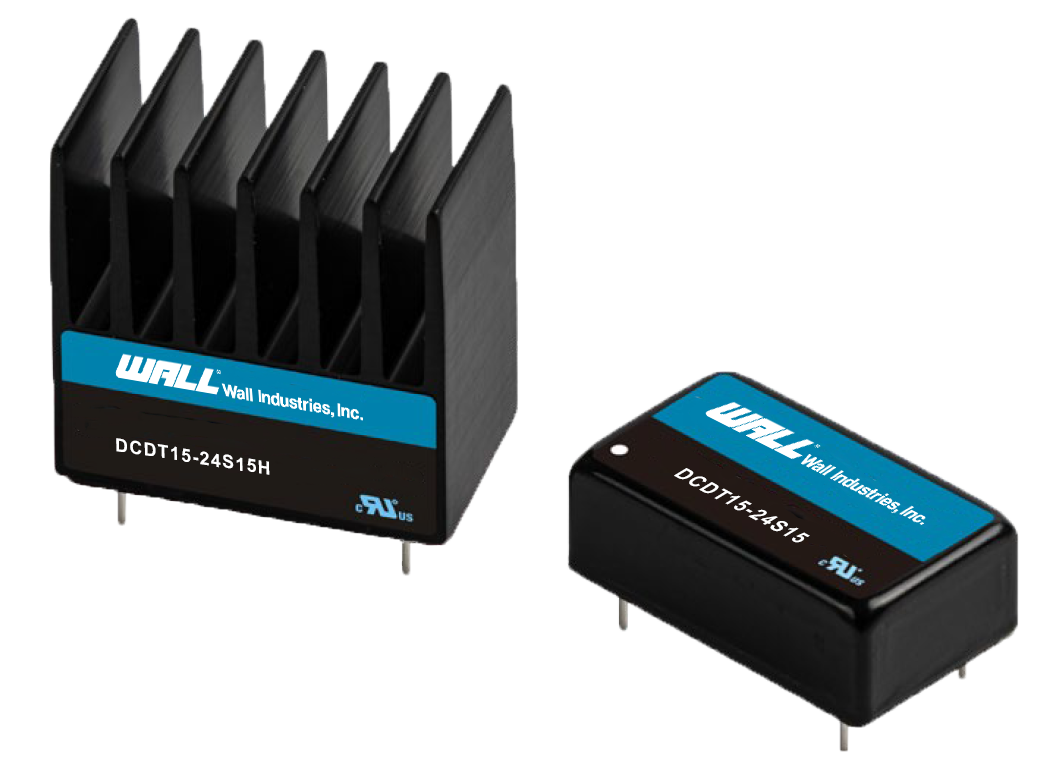

The DCDT15 series of DC/DC converters offers up to 15 watts of output power in a compact 0.94” x 0.54” x 0.4” DIP-16 package. This series consists of both single and dual output models with a wide 2:1 input voltage range. Each model in this series has full regulated output voltage, no minimum load requirement, as well as a shielded metal case with insulated baseplate. This series is RoHS compliant, has under voltage, over load and short circuit protection, and UL/cUL/IEC/E N 62368-1 safety approvals.
• Wide 2:1 Input Voltage Range
• Industry Standard DIP-16 Package
• Fully Regulated Output Voltage
• I/O Isolation 1500VDC
• No Min. Load Requirement
• RoHS Compliant
• Optional Heatsink
• Low No Load Power Consumption
• Shielded Metal Case with Insulated Baseplate
• Under Voltage Protection
• Over Load and Short Circuit Protection
• Conducted EMI EN 55032 Class A Approved
• UL/cUL/IEC/EN 62368-1 Safety Approval & CE Marking
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DCDT15-12S51 | Input Voltage: 12 | Output Voltage: 5.1 | Output Current: 2940mA | Output Power (W): 15 | No. Outputs: S | Case: Through Hole | Size: 0.94" x 0.54" x 0.4" | Get a Quote |
| DCDT15-12S12 | Input Voltage: 12 | Output Voltage: 12 | Output Current: 1250mA | Output Power (W): 15 | No. Outputs: S | Case: Through Hole | Size: 0.94" x 0.54" x 0.4" | Get a Quote |
| DCDT15-12S15 | Input Voltage: 12 | Output Voltage: 15 | Output Current: 1000mA | Output Power (W): 15 | No. Outputs: S | Case: Through Hole | Size: 0.94" x 0.54" x 0.4" | Get a Quote |
| DCDT15-12S24 | Input Voltage: 12 | Output Voltage: 24 | Output Current: 625mA | Output Power (W): 15 | No. Outputs: S | Case: Through Hole | Size: 0.94" x 0.54" x 0.4" | Get a Quote |
| DCDT15-24S51 | Input Voltage: 24 | Output Voltage: 5.1 | Output Current: 2940mA | Output Power (W): 15 | No. Outputs: S | Case: Through Hole | Size: 0.94" x 0.54" x 0.4" | Get a Quote |
| DCDT15-24S12 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 1250 | Output Power (W): 15 | No. Outputs: S | Case: Through Hole | Size: 0.94" x 0.54" x 0.4" | Get a Quote |
| DCDT15-24S15 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 1000mA | Output Power (W): 15 | No. Outputs: S | Case: Through Hole | Size: 0.94" x 0.54" x 0.4" | Get a Quote |
| DCDT15-24S24 | Input Voltage: 24 | Output Voltage: 24 | Output Current: 625mA | Output Power (W): 15 | No. Outputs: S | Case: Through Hole | Size: 0.94" x 0.54" x 0.4" | Get a Quote |
| DCDT15-48S51 | Input Voltage: 48 | Output Voltage: 5.1 | Output Current: 2940mA | Output Power (W): 15 | No. Outputs: S | Case: Through Hole | Size: 0.94" x 0.54" x 0.4" | Get a Quote |
| DCDT15-48S12 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 1250mA | Output Power (W): 15 | No. Outputs: S | Case: Through Hole | Size: 0.94" x 0.54" x 0.4" | Get a Quote |
| DCDT15-48S15 | Input Voltage: 48 | Output Voltage: 15 | Output Current: 1000mA | Output Power (W): 15 | No. Outputs: S | Case: Through Hole | Size: 0.94" x 0.54" x 0.4" | Get a Quote |
| DCDT15-48S24 | Input Voltage: 48 | Output Voltage: 24 | Output Current: 625mA | Output Power (W): 15 | No. Outputs: S | Case: Through Hole | Size: 0.94" x 0.54" x 0.4" | Get a Quote |
| DCDT15-12D12 | Input Voltage: 12 | Output Voltage: 12, -12 | Output Current: ±625mA | Output Power (W): 15 | No. Outputs: D | Case: Through Hole | Size: 0.94" x 0.54" x 0.4" | Get a Quote |
| DCDT15-12D15 | Input Voltage: 12 | Output Voltage: 15, -15 | Output Current: ±500 | Output Power (W): 15 | No. Outputs: D | Case: Through Hole | Size: 0.94" x 0.54" x 0.4" | Get a Quote |
| DCDT15-24D12 | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±625mA | Output Power (W): 15 | No. Outputs: D | Case: Through Hole | Size: 0.94" x 0.54" x 0.4" | Get a Quote |
| DCDT15-24D15 | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±500mA | Output Power (W): 15 | No. Outputs: D | Case: Through Hole | Size: 0.94" x 0.54" x 0.4" | Get a Quote |
| DCDT15-48D12 | Input Voltage: 48 | Output Voltage: 12, -12 | Output Current: ±625mA | Output Power (W): 15 | No. Outputs: D | Case: Through Hole | Size: 0.94" x 0.54" x 0.4" | Get a Quote |
| DCDT15-48D15 | Input Voltage: 48 | Output Voltage: 15, -15 | Output Current: ±500mA | Output Power (W): 15 | No. Outputs: D | Case: Through Hole | Size: 0.94" x 0.54" x 0.4" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 12, 24, 48 |
| Input Voltage Range: | 9~18, 18~36, 36~75 |
| Input Filter: | Internal Pi Type |
| Output | |
| Output Voltage: | ±12, ±15, 5.1, 12, 15, 24 |
| Voltage Accuracy: | ±1.0% |
| Output Current: | ±500mA, ±625mA, 625mA, 1000mA, 1250mA, 2940mA |
| Output Power (Watts): | 15 |
| Short Circuit Protection: | Hiccup Mode, 0.3Hz Typ. |
| General | |
| Efficiency: | Up to 87% |
| Isolation: | Up to 1500VAC |
| Environmental | |
| Operating Temperature: | Varies by Model, See Data Sheet |
| Storage Temperature: | -50 to 125°C |
| Physical | |
| Weight: | 0.31oz (8.77g) |
| Dimensions: | 0.94in x 0.54in x 0.4in (23.8mm x 13.7mm x 10.2mm) |
| Case Material: | Metal with Non-Conductive Baseplate |
| Notes & safety | |
| Notes: | 1. Transient Recovery time is measured to within 1% error band for a step change in output load of 75% to 100% 2. It is recommend to protect the converter by a slow blow fuse in the input supply line. 3. This product is Listed to applicable standards and requirements by UL. 4. The external components might be required to meet EMI/EMS standard for some test items. Contact factory for more information. 5. Heatsink is available for this series. To indicate product with heatsink, add “H” suffix. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL/cUL 62368-1 Recognition (UL Certificate), IEC/EN 62368-1 (CB Report) |
| RoHS Compliance: | Yes |
