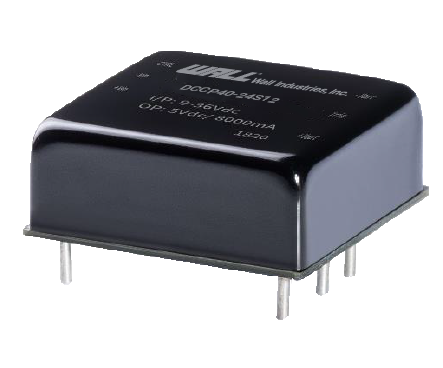

DCCP40
The DCCP40 series of DC/DC converters offers 40 watts of output power in a very compact 1” x 1” x 0.41” package. This series offers single and dual output models with a wide 4:1 input voltage range. Each model in the DCCP40 series has high efficiency, is cooled by natural convection, and offers continuous short circuit protection, over load protection, over temperature and over voltage trim. This series meets UL62368 and EN62368 safety approval.
• 4:1 Wide Input Voltage Range
• High Efficiency
• Remote ON/OFF
• Input Under Voltage Lock
• Compact 1”x1” Case
• Continuous Short Circuit Protection
• Over Load Protection
• Over Temperature Protection
• Cooling by Natural Convection
• Meets UL62368/EN62368 Safety Approval
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DCCP40-24S03 | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 10000mA | Output Power (W): 40 | No. Outputs: S | Case: Through Hole | Size: 1" x 1" x 0.41" | Get a Quote |
| DCCP40-24S05 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 8000mA | Output Power (W): 40 | No. Outputs: S | Case: Through Hole | Size: 1" x 1" x 0.41" | Get a Quote |
| DCCP40-24S12 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 3333mA | Output Power (W): 40 | No. Outputs: S | Case: Through Hole | Size: 1" x 1" x 0.41" | Get a Quote |
| DCCP40-24S15 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 2667mA | Output Power (W): 40 | No. Outputs: S | Case: Through Hole | Size: 1" x 1" x 0.41" | Get a Quote |
| DCCP40-24S24 | Input Voltage: 24 | Output Voltage: 24 | Output Current: 1667mA | Output Power (W): 40 | No. Outputs: S | Case: Through Hole | Size: 1" x 1" x 0.41" | Get a Quote |
| DCCP40-48S03 | Input Voltage: 48 | Output Voltage: 3.3 | Output Current: 10000mA | Output Power (W): 40 | No. Outputs: S | Case: Through Hole | Size: 1" x 1" x 0.41" | Get a Quote |
| DCCP40-48S05 | Input Voltage: 48 | Output Voltage: 5 | Output Current: 8000mA | Output Power (W): 40 | No. Outputs: S | Case: Through Hole | Size: 1" x 1" x 0.41" | Get a Quote |
| DCCP40-48S12 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 3333mA | Output Power (W): 40 | No. Outputs: S | Case: Through Hole | Size: 1" x 1" x 0.41" | Get a Quote |
| DCCP40-48S15 | Input Voltage: 48 | Output Voltage: 15 | Output Current: 2667mA | Output Power (W): 40 | No. Outputs: S | Case: Through Hole | Size: 1" x 1" x 0.41" | Get a Quote |
| DCCP40-48S24 | Input Voltage: 48 | Output Voltage: 24 | Output Current: 1667mA | Output Power (W): 40 | No. Outputs: S | Case: Through Hole | Size: 1" x 1" x 0.41" | Get a Quote |
| DCCP40-24D12 | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: 1667mA | Output Power (W): 40 | No. Outputs: D | Case: Through Hole | Size: 1" x 1" x 0.41" | Get a Quote |
| DCCP40-24D15 | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: 1333mA | Output Power (W): 40 | No. Outputs: D | Case: Through Hole | Size: 1" x 1" x 0.41" | Get a Quote |
| DCCP40-48D12 | Input Voltage: 48 | Output Voltage: 12, -12 | Output Current: 1667mA | Output Power (W): 40 | No. Outputs: D | Case: Through Hole | Size: 1" x 1" x 0.41" | Get a Quote |
| DCCP40-48D15 | Input Voltage: 48 | Output Voltage: 15, -15 | Output Current: 1333mA | Output Power (W): 40 | No. Outputs: D | Case: Through Hole | Size: 1" x 1" x 0.41" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 24, 48 |
| Input Voltage Range: | 9~36, 18~75 |
| Input Filter: | Pi Type |
| Remote ON/OFF: | Yes |
| Output | |
| Output Voltage: | 3.3, 5, 12, 15, 24, ±12, ±15 |
| Voltage Accuracy: | ±1% |
| Output Current: | 1333mA, 1667mA, 2667mA, 3333mA, 8000mA, 10000mA |
| Output Power (Watts): | 40 |
| Output Trim/Adjustability: | ±10% |
| Short Circuit Protection: | Continuous, Automatic Recovery |
| Over Voltage Protection: | See Data Sheet |
| Thermal Protection: | 115ºC |
| General | |
| Efficiency: | Up to 88% |
| Environmental | |
| Operating Temperature: | -40 to +105°C |
| Storage Temperature: | -55 to 125°C |
| Physical | |
| Weight: | 0.74oz (21g) |

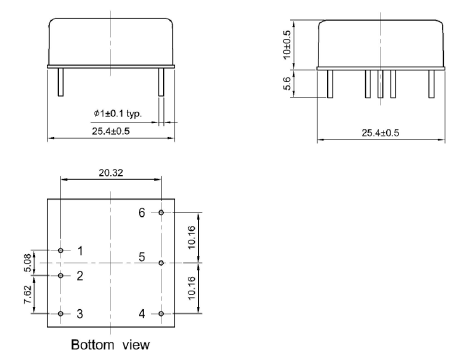

| Dimensions: | 1in x 1in x 0.41in (25.4mm x 25.4mm x 10.5mm) |
| Case Material: | Metal |
| Notes & safety | |
| Notes: | 1. Ripple & Noise: Single Output measured with 20MHz BW at nominal input voltage 0%~100% Load with 10µF/50V*2 X7R MLCC. Dual output measured with 20MHz BW at nominal input voltage 0%~100% Load with 10µF/50V X7R MLCC. 2. The capacitive load is tested by minimum input and constant resistive load. 3. This product is Listed to applicable standards and requirements by UL. 4. Please see suggested EMI circuit. 5. External Input Capacitor Required 680uF/100V. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL62368, EN62368 |
