DCBYB100 (Preliminary)
The DCBYB100 series of isolated DC/DC converters offer 100 watts of output power in a 2.40” x 2.28” x 0.5” package with standard pinout case. This series consists of single output models with a wide 4:1 input voltage range. Each model in this series has high power density, high efficiency, and short circuit, over voltage, and over temperature protection. Please call factory for order details.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DCBYB100-12S24 | Input Voltage: 12 | Output Voltage: 24 | Output Current: 4.2A | Output Power (W): 100 | No. Outputs: S | Case: Through Hole | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCBYB100-48S12 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 8.33A | Output Power (W): 100 | No. Outputs: S | Case: Through Hole | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCBYB100-48S24 | Input Voltage: 48 | Output Voltage: 24 | Output Current: 4.2A | Output Power (W): 100 | No. Outputs: S | Case: Through Hole | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCBYB100-48S28 | Input Voltage: 48 | Output Voltage: 28 | Output Current: 3.6A | Output Power (W): 100 | No. Outputs: S | Case: Through Hole | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCBYB100-48S48 | Input Voltage: 48 | Output Voltage: 48 | Output Current: 2.1A | Output Power (W): 100 | No. Outputs: S | Case: Through Hole | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 12, 48 |
| Input Voltage Range: | 9~18, 36~75 |
| Input Filter: | Pi Type |
| Output | |
| Output Voltage: | 12, 24, 28, 48 |
| Voltage Accuracy: | ±1% |
| Output Current: | 2.1A, 3.6A, 4.5A, 8.33A |
| Output Power (Watts): | 100 |
| Short Circuit Protection: | Hiccup, Continuous |
| Over Voltage Protection: | 12V Output Models: 15V 24V Output Models: 27-33V 28V Output Models: 36V 48V Output Models: 58V |
| Thermal Protection: | Yes |
| General | |
| Efficiency: | Up to 92% |
| Isolation: | 24V Input: 15000VDC 48V Input: 1500VDC |
| Environmental | |
| Operating Temperature: | -40 to 85ºC |
| Storage Temperature: | 24V Input: -55 to 125ºC 48V Input: -40 to +105ºC |
| Physical | |
| Weight: | 3.42oz (97g) |

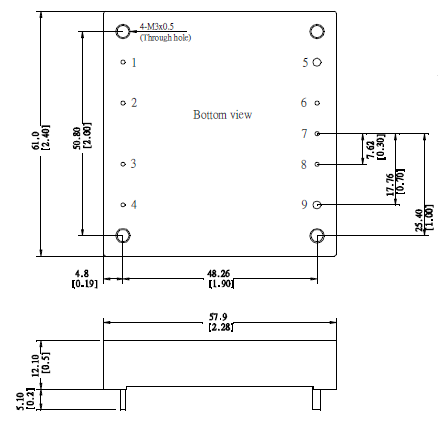

| Dimensions: | 2.40in x 2.28in x 0.5in (61mm x 57.9mm x 12.7mm) |
| Case Material: | Aluminum |
| Notes & safety | |
| Notes: | 1. Please note that this is a preliminary specification. *Due to advances in technology, specifications subject to change without notice. |
