DCBUB12
The DCBUB12 series of isolated DC/DC power converters provides up to 12 Watts of continuous output power in a 2.0” x 1.0” x 0.4” shielded metal case. This series consists of single and dual output models with 4:1 input voltage ranges of 9-36VDC and 18~75VDC. Some features include high efficiency up to 87%, 1500VDC I/O isolation, remote on/off control, and -40°C to +85°C operating temperature range. The DCBUB12 series is RoHS compliant and has short circuit, over load, and over voltage protection. These converters are best suited for use in battery operated equipment, measurement equipment, telecom, wireless networks, industry control systems, and anywhere where isolated, tightly regulated voltages and compact size are required.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DCBUB12-24S33 | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 2400mA | Output Power (W): 8 | No. Outputs: S | Case: Through Hole | Size: 2.0" x 1.0" x 0.4" | Get a Quote |
| DCBUB12-48S33 | Input Voltage: 48 | Output Voltage: 3.3 | Output Current: 2400mA | Output Power (W): 8 | No. Outputs: S | Case: Through Hole | Size: 2.0" x 1.0" x 0.4" | Get a Quote |
| DCBUB12-24S05 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 2000mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 2.0" x 1.0" x 0.4" | Get a Quote |
| DCBUB12-48S05 | Input Voltage: 48 | Output Voltage: 5 | Output Current: 2000mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 2.0" x 1.0" x 0.4" | Get a Quote |
| DCBUB12-24D05 | Input Voltage: 24 | Output Voltage: 5, -5 | Output Current: ±1000mA | Output Power (W): 10 | No. Outputs: D | Case: Through Hole | Size: 2.0" x 1.0" x 0.4" | Get a Quote |
| DCBUB12-48D05 | Input Voltage: 48 | Output Voltage: 5, -5 | Output Current: ±1000mA | Output Power (W): 10 | No. Outputs: D | Case: Through Hole | Size: 2.0" x 1.0" x 0.4" | Get a Quote |
| DCBUB12-24S12 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 1000mA | Output Power (W): 12 | No. Outputs: S | Case: Through Hole | Size: 2.0" x 1.0" x 0.4" | Get a Quote |
| DCBUB12-24S15 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 800mA | Output Power (W): 12 | No. Outputs: S | Case: Through Hole | Size: 2.0" x 1.0" x 0.4" | Get a Quote |
| DCBUB12-48S12 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 1000mA | Output Power (W): 12 | No. Outputs: S | Case: Through Hole | Size: 2.0" x 1.0" x 0.4" | Get a Quote |
| DCBUB12-48S15 | Input Voltage: 48 | Output Voltage: 15 | Output Current: 800mA | Output Power (W): 12 | No. Outputs: S | Case: Through Hole | Size: 2.0" x 1.0" x 0.4" | Get a Quote |
| DCBUB12-24D12 | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±500mA | Output Power (W): 12 | No. Outputs: D | Case: Through Hole | Size: 2.0" x 1.0" x 0.4" | Get a Quote |
| DCBUB12-24D15 | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±400mA | Output Power (W): 12 | No. Outputs: D | Case: Through Hole | Size: 2.0" x 1.0" x 0.4" | Get a Quote |
| DCBUB12-48D12 | Input Voltage: 48 | Output Voltage: 12, -12 | Output Current: ±500mA | Output Power (W): 12 | No. Outputs: D | Case: Through Hole | Size: 2.0" x 1.0" x 0.4" | Get a Quote |
| DCBUB12-48D15 | Input Voltage: 48 | Output Voltage: 15, -15 | Output Current: ±400mA | Output Power (W): 12 | No. Outputs: D | Case: Through Hole | Size: 2.0" x 1.0" x 0.4" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 24, 48 |
| Input Voltage Range: | 18~75, 9~36 |
| Input Filter: | Pi type |
| Remote ON/OFF: | Yes |
| Input Frequency: | 0 Hz |
| Output | |
| Output Voltage: | 3.3, 5, 12, 15, ±5, ±12, ±15 |
| Voltage Accuracy: | ±1% |
| Output Current: | 2.4A, 2A, 1A, 800mA, ±1A, ±500mA, ±400mA |
| Output Power (Watts): | 8, 10, 12 |
| Short Circuit Protection: | continuous, automatic recovery |
| Over Voltage Protection: | Yes |
| General | |
| Efficiency: | Up to 87% |
| Isolation: | 1500VDC |
| Environmental | |
| Operating Temperature: | -40 to 85°C |
| Storage Temperature: | -55 to 105°C |

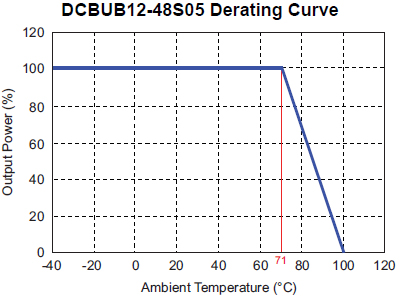

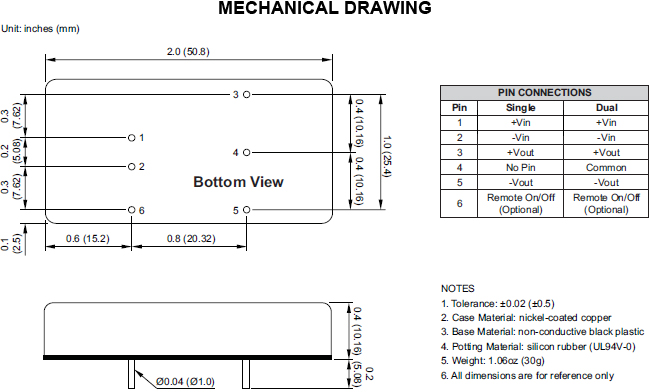

| Physical | |
| Weight: | 1.06 oz |
| Dimensions: | 2.0 x 1.0 x 0.4 |
| Case Material: | Nickel-Coated Copper |
| Notes & safety | |
| Notes: | 1. Output current under this value will not damage these devices; however, they may not meet all listed specifications. *Due to advances in technology, specifications subject to change without notice. |
| RoHS Compliance: | Yes |
