DCBOB5

The DCBOB5 series of isolated DC/DC power converters provides up to 6 Watts of continuous output power in an industry standard 1.25” x 0.80” x 0.40” shielded metal case. This series consists of single and dual output models with 4:1 input voltage ranges of 9-36VDC and 18~75VDC. Some features include high efficiency up to 83%, 3000VDC I/O isolation, remote on/off control, and -40°C to +85°C operating temperature range. The DCBOB5 series is RoHS compliant and has short circuit, over load, and over voltage protection. These converters are best suited for use in battery powered equipment, industrial applications, process control equipment, distributed power systems, and anywhere where isolated, tightly regulated voltages and compact size are required.

• Single and Dual Outputs • 5 Watts Output Power • Remote On/Off Control • 3000VDC I/O Isolation • High Efficiency up to 83% • Lead Free Design, RoHS Compliant • Meets EN55022, Class A (Radiation) • 4:1 Input Voltage Ranges: 9-36VDC and 18-75VDC • Shielded Metal Case with Insulated Base-plate • -40°C to +85°C Operating Temperature Range • 24-Pin DIP Package with Industry-Standard Footprint • Short Circuit, Over Voltage, and Over Load Protection • Free Air Convection • Custom Designs Available
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
DCBOB24S33-5H Input Voltage: 24 Output Voltage: 3.3 Output Current: 1200mA Output Power (W): 4 No. Outputs: S Case: Through Hole Get a Quote
DCBOB48S33-5H Input Voltage: 48 Output Voltage: 3.3 Output Current: 1200mA Output Power (W): 4 No. Outputs: S Case: Through Hole Get a Quote
DCBOB24S05-5H Input Voltage: 24 Output Voltage: 5 Output Current: 1000mA Output Power (W): 5 No. Outputs: S Case: Through Hole Get a Quote
DCBOB48S05-5H Input Voltage: 48 Output Voltage: 5 Output Current: 1000mA Output Power (W): 5 No. Outputs: S Case: Through Hole Get a Quote
DCBOB24D05-5H Input Voltage: 24 Output Voltage: 5, -5 Output Current: ±500mA Output Power (W): 5 No. Outputs: D Case: Through Hole Get a Quote
DCBOB48D05-5H Input Voltage: 48 Output Voltage: 5, -5 Output Current: ±500mA Output Power (W): 5 No. Outputs: D Case: Through Hole Get a Quote
DCBOB24S12-5H Input Voltage: 24 Output Voltage: 12 Output Current: 500mA Output Power (W): 6 No. Outputs: S Case: Through Hole Get a Quote
DCBOB24S15-5H Input Voltage: 24 Output Voltage: 15 Output Current: 400mA Output Power (W): 6 No. Outputs: S Case: Through Hole Get a Quote
DCBOB48S12-5H Input Voltage: 48 Output Voltage: 12 Output Current: 500mA Output Power (W): 6 No. Outputs: S Case: Through Hole Get a Quote
DCBOB48S15-5H Input Voltage: 48 Output Voltage: 15 Output Current: 400mA Output Power (W): 6 No. Outputs: S Case: Through Hole Get a Quote
DCBOB24D12-5H Input Voltage: 24 Output Voltage: 12, -12 Output Current: ±250mA Output Power (W): 6 No. Outputs: D Case: Through Hole Get a Quote
DCBOB24D15-5H Input Voltage: 24 Output Voltage: 15, -15 Output Current: ±200mA Output Power (W): 6 No. Outputs: D Case: Through Hole Get a Quote
DCBOB48D12-5H Input Voltage: 48 Output Voltage: 12, -12 Output Current: ±250mA Output Power (W): 6 No. Outputs: D Case: Through Hole Get a Quote
DCBOB48D15-5H Input Voltage: 48 Output Voltage: 15, -15 Output Current: ±200mA Output Power (W): 6 No. Outputs: D Case: Through Hole Get a Quote
Specification Value
Input
Input Voltage (Nominal): 24, 48
Input Voltage Range: 18~75, 9~36
Input Filter: Pi type
Remote ON/OFF: Yes
Input Frequency: 0 Hz
Output
Output Voltage: 3.3, 5, 12, 15, ±5, ±12, ±15
Voltage Accuracy: ±2%
Output Current: 1200mA, 1000mA, 500mA, 400mA, ±500mA, ±250mA, ±200mA
Output Power (Watts): 4, 5, 6
Short Circuit Protection: continuous, automatic recovery
Over Voltage Protection: Yes
General
Efficiency: Up to 83%
Isolation: 3000VDC
Environmental

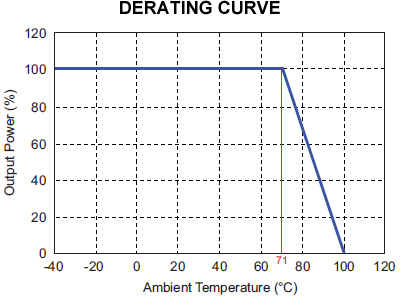

Operating Temperature: -40 to 85°C
Storage Temperature: -55 to 105°C

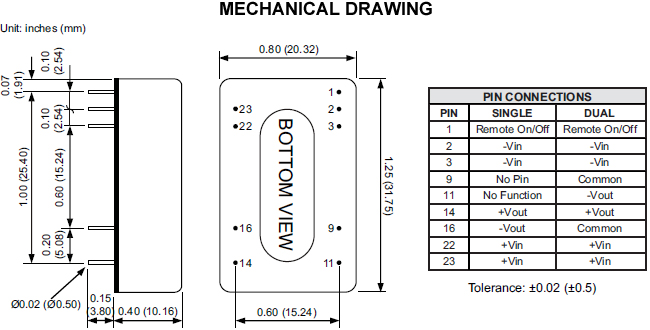

Physical
Weight: 0.61 oz
Dimensions: 1.25 x 0.80 x 0.40
Case Material: Nickel-Coated Copper
Notes & safety
Notes: 1. Output current under this value will not damage these devices; however, they may not meet all listed specifications.
*Due to advances in technology, specifications subject to change without notice.
RoHS Compliance: Yes
