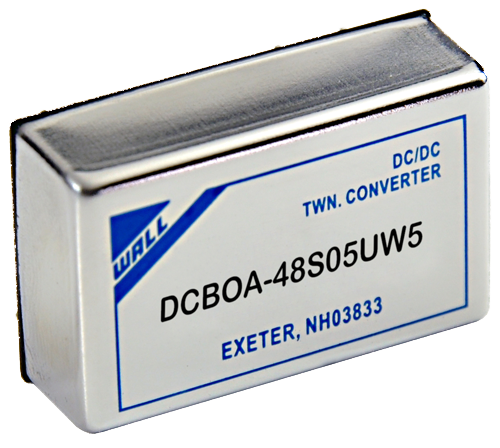

The DCBOA-48S05UW5 is an isolated DC/DC power converter that provides 5 Watts of continuous output power in an industry standard 24-Pin DIP package and footprint. This model has a 5VDC single output and a 4:1 ultra wide input voltage range of 18-75VDC. Some features include 79% high efficiency, 1500VDC I/O isolation, and no minimum load requirement. The DCBOA-48S05UW5 is RoHS compliant and has over voltage and short circuit protection. This converter is best suited for use in distributed power systems, battery powered equipment, process control equipment, transportation equipment, and telecommunication and industrial applications.

• 5VDC Single Output • 4:1 Ultra Wide Input Voltage Range: 18~75VDC • High Power Density • 5 Watts Output Power • 1500VDC I/O Isolation • No Minimum Load Requirement • High Efficiency • Over Voltage and Short Circuit Protection • Shielded Metal Case with Insulated Base-plate • 24-Pin DIP Package with Industry Standard Footprint • Dimensions: 1.25” x 0.80” x 0.40” • Lead Free Design, RoHS Compliant • Wide Operating Temperature Range: -40°C to +85°C
Power (W)
Case Size
DCBOA-48S05UW5 Input Voltage: 48 Output Voltage: 5 Output Current: 1A Output Power (W): 5 No. Outputs: S Case: Through Hole Size: 1.25" x 0.8" x 0.4" Get a Quote
Specification Value
Input Voltage (Nominal): 48
Input Voltage Range: 18~75
Output Voltage: 5
Voltage Accuracy: ±2%
Output Current: 1000mA
Output Power (Watts): 5
Short Circuit Protection: Continuous; automatic recovery
Over Voltage Protection: 6.2VDC
Efficiency: 79%
Isolation: 1500VDC
Operating Temperature: -40 to 85°C
Storage Temperature: -55 to +105°C
Weight: 0.59oz (17.2g)
Dimensions: 1.25in x 0.80in x 0.40in (31.8mm x 20.3mm x 10.2mm)
Case Material: Nickel Coated Copper
Notes & safety
Notes: *Due to advances in technology, specifications subject to change without notice.
