DCBC60

The DCBC60 series of isolated DC/DC power converters provides 60 Watts of continuous output power in a 2.0” x 2.0” x 0.5” shielded metal case. This series consists of 3.3V, 5V, 12V, and 15VDC single output models with 4:1 input voltage ranges of 9-36VDC and 18~75VDC. Some features include high efficiency up to 90%, remote on/off, adjustable output voltage, 1500VDC I/O isolation, -40°C~+85°C operating temperature range, and no minimum load requirement. The DCBC60 series is RoHS compliant and has short circuit, over load, over voltage, and over temperature protection. These converters are best suited for use in battery operated equipment, measurement equipment, telecom, wireless networks, industry control systems, and anywhere where isolated, tightly regulated voltages and compact size are required.

• Single Outputs • 4:1 Ultra Wide Input Voltage Range: 9~36VDC and 18~75VDC • 60 Watts Output Power • Fixed Switching Frequency • Industry Standard Pin-Out • 1500VDC I/O Isolation • No Minimum Load Requirement • Optional Heatsink Available (HS Suffix) • Up to 90% Efficiency • Short Circuit, Over Voltage, Over Load, and Over Temperature Protection • Shielded Metal Case with Insulated Baseplate • Lead Free Design, RoHS Compliant • Synchronous Rectifier Topology • Remote ON/OFF • Adjustable Output Voltage • Custom Designs Available
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
DCBC60-24S33W Input Voltage: 24 Output Voltage: 3.3 Output Current: 14A Output Power (W): 46 No. Outputs: S Case: Through Hole Get a Quote
DCBC60-48S33W Input Voltage: 48 Output Voltage: 3.3 Output Current: 14A Output Power (W): 46 No. Outputs: S Case: Through Hole Get a Quote
DCBC60-24S05W Input Voltage: 24 Output Voltage: 5 Output Current: 12A Output Power (W): 60 No. Outputs: S Case: Through Hole Get a Quote
*DCBC60-24S12W Input Voltage: 24 Output Voltage: 12 Output Current: 5A Output Power (W): 60 No. Outputs: S Case: Through Hole Get a Quote
DCBC60-24S15W Input Voltage: 24 Output Voltage: 15 Output Current: 4A Output Power (W): 60 No. Outputs: S Case: Through Hole Get a Quote
DCBC60-48S05W Input Voltage: 48 Output Voltage: 5 Output Current: 12A Output Power (W): 60 No. Outputs: S Case: Through Hole Get a Quote
DCBC60-48S12W Input Voltage: 48 Output Voltage: 12 Output Current: 5A Output Power (W): 60 No. Outputs: S Case: Through Hole Get a Quote
DCBC60-48S15W Input Voltage: 48 Output Voltage: 15 Output Current: 4A Output Power (W): 60 No. Outputs: S Case: Through Hole Get a Quote
Specification Value
Input
Input Voltage (Nominal): 24, 48
Input Voltage Range: 18~75, 9~36
Input Filter: Pi type
Remote ON/OFF: Yes
UVLO: Yes
Input Frequency: 0 Hz
Output
Output Voltage: 3.3, 5, 12, 15
Voltage Accuracy: ±1%
Output Current: 14A, 12A, 5A, 4A
Output Power (Watts): 46, 60
Short Circuit Protection: Automatic Recovery
Over Voltage Protection: Yes
Thermal Protection: Yes
General
Efficiency: Up to 90%
Isolation: 1500VDC
Environmental

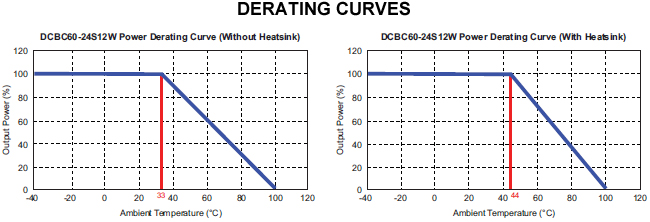

Operating Temperature: -40 to 85°C
Storage Temperature: -55 to 125°C
Physical
Weight: 2.96 oz

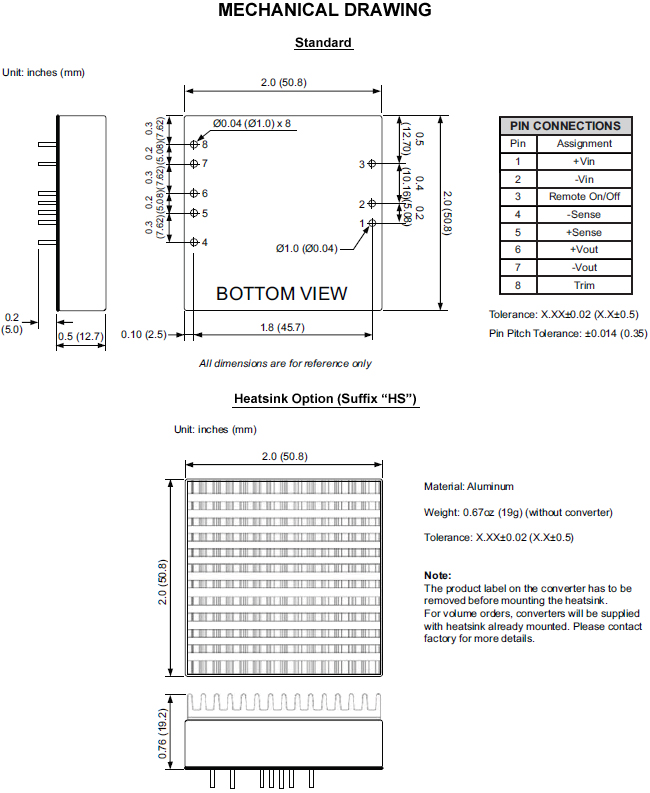

Dimensions: 2.0 x 2.0 x 0.5
Case Material: Nickel-Coated Copper
Notes & safety
Notes: For heatsink add the suffix "HS" to the model number.
Due to advances in technology, specifications are subject to change without notice.
RoHS Compliance: Yes
