CMMDW

The CMMDW series of chassis mount DC/DC converters are single output modules with up to 20 watts of output power. This product is ideal for telecommunications, industrial, mobile, and test equipment applications. These converters are designed for a 4:1 input voltage range of 9VDC-36VDC, or 18VDC-75VDC. Some features include 1600VDC isolation, positive or negative remote on/off, and output adjustability. All models are short circuit, over load, and over voltage protected. Chassis mounts come in open frame, U channel, and enclosed types.

● Output Current up to 5.5A ● Fixed Switching Frequency ● Six-Sided Continuous Shielding ● 20 Watts Maximum Output Power ● 4:1 Ultra Wide Input Voltage Range ● Options: Negative Logic Remote ON/OFF ● Call Factory for More Output Power Options ● Compliant to RoHS EU Directive 2002/95/EC ● CE Mark Meets 2006/95/EC, 93/68/EEC, and 89/336 EEC ● Chassis Mount Options: Open Frame, U Channel, and Enclosed Types Available
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case Size
CMMDW24S3.3-5500 Input Voltage: 24 Output Voltage: 3.3 Output Current: 5.5A Output Power (W): 18 No. Outputs: S Case: Chassis Mount Size: 4" × 2.25" × 0.81" Get a Quote
CMMDW48S3.3-5500 Input Voltage: 48 Output Voltage: 3.3 Output Current: 5.5A Output Power (W): 18 No. Outputs: S Case: Chassis Mount Size: 4" × 2.25" × 0.81" Get a Quote
CMMDW24S12-1670 Input Voltage: 24 Output Voltage: 12 Output Current: 1.67A Output Power (W): 20 No. Outputs: S Case: Chassis Mount Size: 4" × 2.25" × 0.81" Get a Quote
CMMDW24S15-1330 Input Voltage: 24 Output Voltage: 15 Output Current: 1.33A Output Power (W): 20 No. Outputs: S Case: Chassis Mount Size: 4" × 2.25" × 0.81" Get a Quote
CMMDW24S5-4000 Input Voltage: 24 Output Voltage: 5 Output Current: 4A Output Power (W): 20 No. Outputs: S Case: Chassis Mount Size: 4" × 2.25" × 0.81" Get a Quote
CMMDW48S12-1670 Input Voltage: 48 Output Voltage: 12 Output Current: 1.67A Output Power (W): 20 No. Outputs: S Case: Chassis Mount Size: 4" × 2.25" × 0.81" Get a Quote
CMMDW48S15-1330 Input Voltage: 48 Output Voltage: 15 Output Current: 1.33A Output Power (W): 20 No. Outputs: S Case: Chassis Mount Size: 4" × 2.25" × 0.81" Get a Quote
CMMDW48S5-4000 Input Voltage: 48 Output Voltage: 5 Output Current: 4A Output Power (W): 20 No. Outputs: S Case: Chassis Mount Size: 4" × 2.25" × 0.81" Get a Quote
Specification Value
Input
Input Voltage (Nominal): 24, 48
Input Voltage Range: 18-75, 9-36
Remote ON/OFF: Positive or Negative
Input Frequency: 0 Hz
Output
Output Voltage: 3.3, 5, 12, 15
Voltage Accuracy: ±1%
Output Current: 5.5A, 4A, 1.67A, 1.33A
Output Power (Watts): 18, 20
Output Trim/Adjustability: 0.1
Short Circuit Protection: hiccup, automatic recovery
Over Voltage Protection: Yes
General
Efficiency: Up to 88%
Isolation: 1600VDC
Environmental

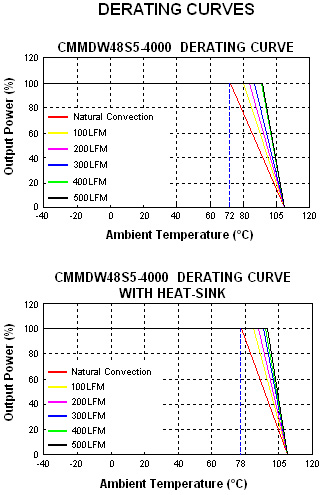

Operating Temperature: -40 - 105°C with derating
Storage Temperature: -55 to 125°C
Physical
Weight: 6 oz.
Dimensions: 4in. × 2.25in. × 0.81in.
Shielding: Six-Sided
Notes & safety
Notes: 1. BELLCORE TR-NWT-000332. Case 1: 50% Stress, Temperature at 40°C (Ground fixed and controlled environment). MIL-STD-217F Notice2 @Ta=25°C, Full load (Ground, Benign, controlled environment).
2. The ON/OFF control pin voltage is referenced to -Vin. To order negative logic ON/OFF control add the suffix "R" (Ex: CMMDW48S5-4000R).
3. Heat sink is optional, consult factory for ordering details.
4. Chassis Mount Options: No suffix for open frame, "U" suffix for U Channel (add $10.00 to the listed price), and "E" suffix for Enclosed type (add $17.00 to the listed price).
5. This product is Listed to applicable standards and requirements by UL.
Due to advances in technology, specifications are subject to change without notice.
Safety Approvals: IEC60950-1, UL60950-1, EN60950-1
RoHS Compliance: Yes
