CBW
The CBW series of DC/DC power converters offers up to 30 watts of output power in an industry standard 2.00” x 1.00” x 0.40” package. This series has single, dual, and triple output models with 4:1 ultra wide input voltage ranges of 9-36VDC and 18-75VDC. Some features include high efficiency up to 91%, 1600VDC I/O isolation, six-sided shielding, and remote ON/OFF control. These converters are also protected against short circuit, over voltage, over load, and over temperature conditions. All models are RoHS and REACH compliant and have IEC/UL/EN60950-1, 62368-1 safety approvals. This series is best suited for use in wireless networks, telecom/datacom, industry control systems, measurement equipment, and semiconductor equipment.
• High Efficiency up to 91%
• Remote ON/OFF Control
• 1600VDC I/O Isolation
• Six-Sided Continuous Shielding
• Single, Dual, and Triple Outputs
• 4:1 Ultra Wide Input Voltage Ranges
• No Minimum Load Requirement for Single and Dual Output Models
• Protection: SCP / OVP / OLP / OTP
• Up to 30 Watts Output Power
• Standard 2.00” x 1.00” x 0.40” Package
• Wide Operating Temperature Range: -40°C to +85°C
• RoHS & REACH Compliant
• IEC/UL/EN60950-1, 62368-1 Safety Approvals
• CE Marked
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| CBW24S1.5-8500 | Input Voltage: 24 | Output Voltage: 1.5 | Output Current: 8.5A | Output Power (W): 12.75 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| CBW48S1.5-8500 | Input Voltage: 48 | Output Voltage: 1.5 | Output Current: 8.5A | Output Power (W): 12.75 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| CBW24S2.5-8000 | Input Voltage: 24 | Output Voltage: 2.5 | Output Current: 8A | Output Power (W): 20 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| CBW48S2.5-8000 | Input Voltage: 48 | Output Voltage: 2.5 | Output Current: 8A | Output Power (W): 20 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| CBW24S3.3-7500 | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 7.5A | Output Power (W): 24.75 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| CBW48S3.3-7500 | Input Voltage: 48 | Output Voltage: 3.3 | Output Current: 7.5A | Output Power (W): 24.75 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| CBW24T3.312-26 | Input Voltage: 24 | Output Voltage: 3.3, 12, -12 | Output Current: 5A/ ±416mA | Output Power (W): 26.5 | No. Outputs: T | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| CBW24T3.315-26 | Input Voltage: 24 | Output Voltage: 3.3, 15, -15 | Output Current: 5A/ ±333mA | Output Power (W): 26.5 | No. Outputs: T | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| CBW48T3.312-26 | Input Voltage: 48 | Output Voltage: 3.3, 12, -12 | Output Current: 5A/ ±416mA | Output Power (W): 26.5 | No. Outputs: T | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| CBW48T3.315-26 | Input Voltage: 48 | Output Voltage: 3.3, 15, -15 | Output Current: 5A/ ±333mA | Output Power (W): 26.5 | No. Outputs: T | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| CBW24D12-1250 | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±1.25A | Output Power (W): 30 | No. Outputs: D | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| CBW24D15-1000 | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±1A | Output Power (W): 30 | No. Outputs: D | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| CBW24D5-3000 | Input Voltage: 24 | Output Voltage: 5, -5 | Output Current: ±3A | Output Power (W): 30 | No. Outputs: D | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| CBW24S12-2500 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 2.5A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| CBW24S15-2000 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 2A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| CBW24S5-6000 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 6A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| CBW24T512-30 | Input Voltage: 24 | Output Voltage: 5, 12, -12 | Output Current: 4A/ ±416mA | Output Power (W): 30 | No. Outputs: T | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| CBW24T515-30 | Input Voltage: 24 | Output Voltage: 5, 15, -15 | Output Current: 4A/ ±333mA | Output Power (W): 30 | No. Outputs: T | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| CBW48D12-1250 | Input Voltage: 48 | Output Voltage: 12, -12 | Output Current: ±1.25A | Output Power (W): 30 | No. Outputs: D | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| CBW48D15-1000 | Input Voltage: 48 | Output Voltage: 15, -15 | Output Current: ±1A | Output Power (W): 30 | No. Outputs: D | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| CBW48D5-3000 | Input Voltage: 48 | Output Voltage: 5, -5 | Output Current: ±3A | Output Power (W): 30 | No. Outputs: D | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| CBW48S12-2500 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 2.5A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| CBW48S15-2000 | Input Voltage: 48 | Output Voltage: 15 | Output Current: 2A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| CBW48S5-6000 | Input Voltage: 48 | Output Voltage: 5 | Output Current: 6A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| CBW48T512-30 | Input Voltage: 48 | Output Voltage: 5, 12, -12 | Output Current: 4A/ ±416mA | Output Power (W): 30 | No. Outputs: T | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| CBW48T515-30 | Input Voltage: 48 | Output Voltage: 5, 15, -15 | Output Current: 4A/ ±333mA | Output Power (W): 30 | No. Outputs: T | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| CBW24S5.1-6000 | Input Voltage: 24 | Output Voltage: 5.1 | Output Current: 6A | Output Power (W): 30.6 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| CBW48S5.1-6000 | Input Voltage: 48 | Output Voltage: 5.1 | Output Current: 6A | Output Power (W): 30.6 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 24, 48 |
| Input Voltage Range: | 18-75, 9-36 |
| Input Filter: | Pi Type |
| Remote ON/OFF: | Positive or Negative Logic |
| Input Frequency: | 0 Hz |
| Output | |
| Output Voltage: | 1.5, 2.5, 3.3, -5, 5, 5.1, -12, 12, -15, 15 |
| Voltage Accuracy: | Single & Dual Output Models: ±1% Triple Output Models; 3.3V, 5V: ±1%, 12V, 15V: ±5% |
| Output Current: | 8.5A, 8A, 7.5A, 5A/±416mA, 5A/±333mA, 6A, ±3A, 4A/±416mA, 4A/±333mA, 2.5A, ±1.25A, 2A, ±1A |
| Output Power (Watts): | 12.75, 20, 24.75, 26.5, 30, 30.6 |
| Output Trim/Adjustability: | ±10% |
| Short Circuit Protection: | Continuous, Automatic Recovery |
| Over Voltage Protection: | Yes, See Data Sheet |
| General | |
| Efficiency: | Up to 91% |
| Isolation: | 1600VDC |
| Environmental | |

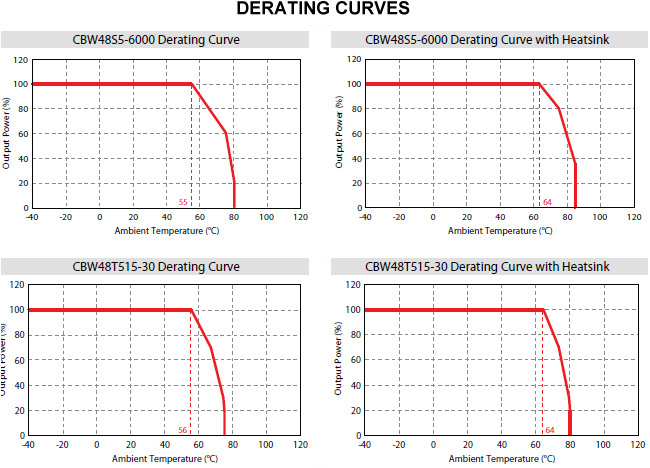

| Operating Temperature: | -40 - +85°C with derating |
| Storage Temperature: | -55 to +125°C |
| Physical | |
| Weight: | 1.07 oz. (30.5g) |

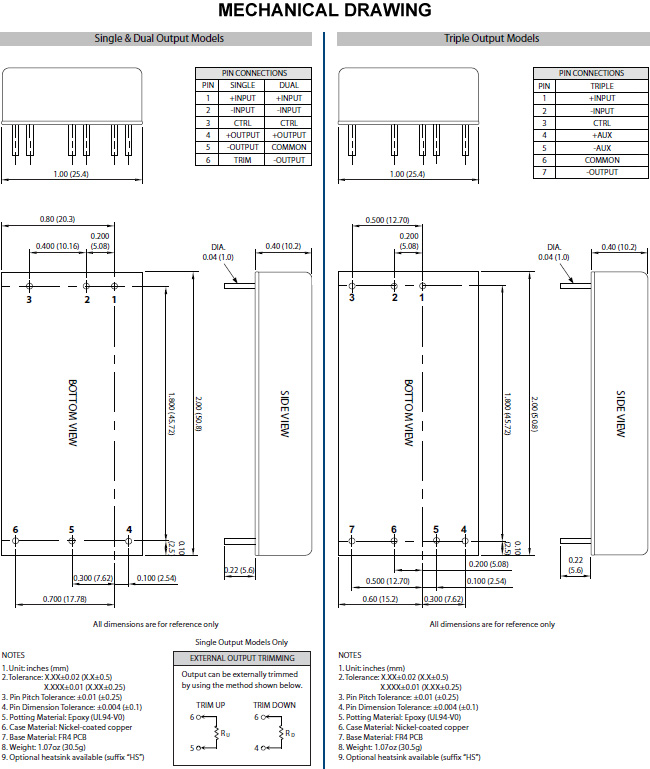

| Dimensions: | 2in. × 1in. × 0.4in. (50.8 x 25.4 x 10.2 mm) |
| Case Material: | Nickel-Coated Copper |
| Shielding: | Six-Sided |
| Notes & safety | |
| Notes: | 1. Heat sink is optional. To order the module with a heatsink please add the suffix “HS” to the model number (Ex: CBW24S12-2500HS). 2. Positive remote on/off control is standard; for negative remote on/off please add the suffix “R” to the model number (Ex: CBW24S12-2500R). 3. Triple output models require a minimum loading on the output to maintain all specified regulations. Operation under no-load conditions will not damage these devices; however, they may not meet all listed specifications. 4. An external input filter capacitor is required if the module has to meet EN61000-4-4, EN61000-4-5. - 24VDC nominal input models: Nippon chemi-con KY series, 330μF/50V - 48VDC nominal input models: Nippon chemi-con KY series, 220μF/100V 5. This product is Listed to applicable standards and requirements by UL. CAUTION: This power converter is not internally fused. An input line fuse must always be used. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | IEC/UL/EN60950-1, 62368-1 |
| RoHS Compliance: | Yes |
