WMSPU10
The WMSPU10 series of Class II AC/DC wall mount power supplies provides up to 10 Watts of continuous output power in a 2.20 x 1.73 x 1.08 inch package. This series consists of single output models ranging from 5VDC to 40VDC with a 90~264VAC input voltage range. All units are UL 94V-1, RoHS, and CEC & Energy Star Level VI compliant. This series also meets new CE requirements and FCC class B emission limits. All models have UL/cUL (UL 60950-1: 2nd edition) and TUV/GS (EN 60950-1: 2nd edition) safety approvals. All units have been 100% burn-in tested.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| WMSPU10-102 | Input Voltage: 90~264 | Output Voltage: 5~6 | Output Current: 1.60 ~ 1.33 A | Output Power (W): 8 | No. Outputs: S | Case: Wall Mount | Size: 2.2" x 1.73" x 1.08" | Get a Quote |
| WMSPU10-103 | Input Voltage: 90~264 | Output Voltage: 6~8 | Output Current: 1.33 ~ 1.00 A | Output Power (W): 8 | No. Outputs: S | Case: Wall Mount | Size: 2.2" x 1.73" x 1.08" | Get a Quote |
| WMSPU10-104 | Input Voltage: 90~264 | Output Voltage: 8~11 | Output Current: 1.25 ~ 0.90 A | Output Power (W): 10 | No. Outputs: S | Case: Wall Mount | Size: 2.2" x 1.73" x 1.08" | Get a Quote |
| WMSPU10-105 | Input Voltage: 90~264 | Output Voltage: 11~13 | Output Current: 0.90 ~ 0.76 A | Output Power (W): 10 | No. Outputs: S | Case: Wall Mount | Size: 2.2" x 1.73" x 1.08" | Get a Quote |
| WMSPU10-106 | Input Voltage: 90~264 | Output Voltage: 13~16 | Output Current: 0.76 ~ 0.62A | Output Power (W): 10 | No. Outputs: S | Case: Wall Mount | Size: 2.2" x 1.73" x 1.08" | Get a Quote |
| WMSPU10-107 | Input Voltage: 90~264 | Output Voltage: 16~21 | Output Current: 0.62 ~ 0.47 A | Output Power (W): 10 | No. Outputs: S | Case: Wall Mount | Size: 2.2" x 1.73" x 1.08" | Get a Quote |
| WMSPU10-108 | Input Voltage: 90~264 | Output Voltage: 21~27 | Output Current: 0.47 ~ 0.37 A | Output Power (W): 10 | No. Outputs: S | Case: Wall Mount | Size: 2.2" x 1.73" x 1.08" | Get a Quote |
| WMSPU10-109 | Input Voltage: 90~264 | Output Voltage: 27~33 | Output Current: 0.37 ~ 0.30 A | Output Power (W): 10 | No. Outputs: S | Case: Wall Mount | Size: 2.2" x 1.73" x 1.08" | Get a Quote |
| WMSPU10-110 | Input Voltage: 90~264 | Output Voltage: 33~40 | Output Current: 0.30 ~ 0.25 A | Output Power (W): 10 | No. Outputs: S | Case: Wall Mount | Size: 2.2" x 1.73" x 1.08" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| Input Frequency: | 47-63Hz |
| Output | |
| Output Voltage: | 5~6, 6~8, 8~11, 11~13, 13~16, 16~21, 21~27, 27~33, 33~40 |
| Output Current: | 0.30~0.25A, 0.37~0.30A, 0.47~0.37A, 0.62~0.47A, 0.76~0.62A, 0.90~0.76A, 1.25~0.90A, 1.33~1.00A, 1.60~1.33A |
| Output Power (Watts): | 8, 10 |
| General | |
| Efficiency: | 71-85% |
| Isolation: | 4242VDC |
| Environmental | |

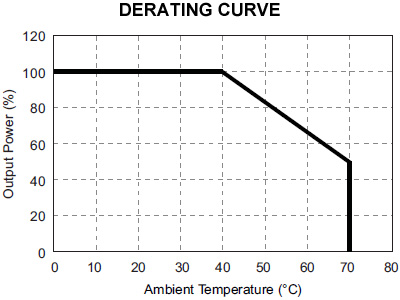

| Operating Temperature: | 0 to 70°C |
| Storage Temperature: | -40 to 85°C |
| Physical | |
| Weight: | 3.17oz (90g) |

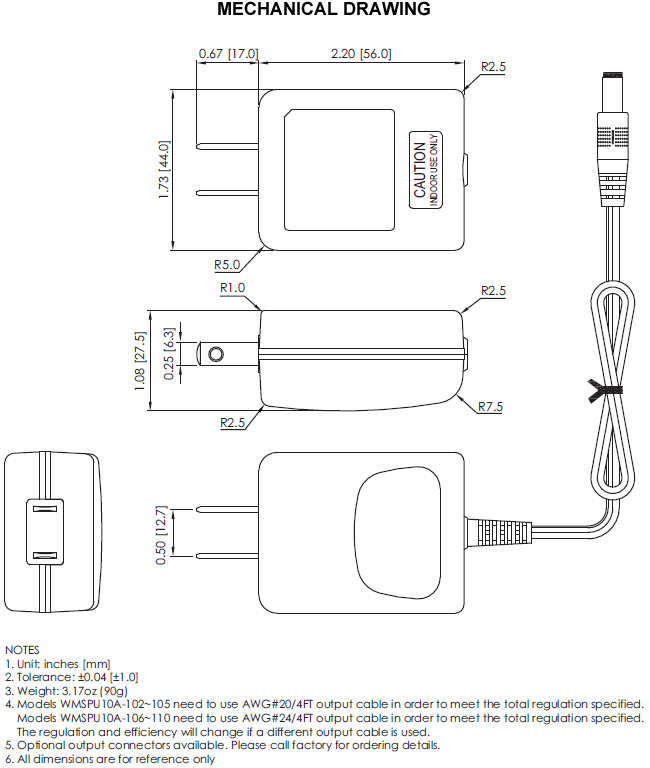

| Dimensions: | 2.20" x 1.73" x 1.08" (56.0 x 44.0 x 27.5 mm) |
| Notes & safety | |
| Notes: | 1. The output voltage is specified as a range (ex: 33~40VDC); the customer must specify what they would like the output voltage set at. 2. Models WMSPU10A-102~105 need to use AWG#20/4FT output cable in order to meet the total regulation specified. Models WMSPU10A-106~110 need to use AWG#24/4FT output cable in order to meet the total regulation specified. The regulation and efficiency will change if a different output cable is used. 3. Optional output connectors are available for this series. Please call factory for ordering details. 4. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL/cUL (UL60950-1: 2nd edition), TUV/GS (EN60950-1: 2nd edition), CE |
| RoHS Compliance: | Yes |
| TUV Efficiency Level: | TUV/GS (EN 60950-1: 2nd ed.) |
| Energy Star Compliance: | Level VI |
