WMSAW65

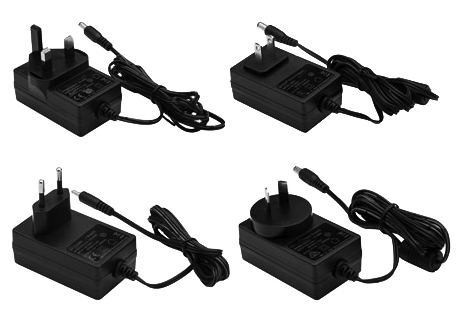

The WMSAW65 series of AC/DC wall mount power supplies offers up to 65 watts of output power in a 4.62” x 1.98” x 1.32” package. This series consists of single output models with a wide input voltage range of 90~264VAC and either a US, UK, European, or Australian plug. Each model in this series has high efficiency, is RoHS compliant, and has over current and short circuit protection. This series has UL, CE, CB, and FCC safety approvals.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| WMSAW65-05X ~ WMSAW65-239X | Input Voltage: 90~264 | Output Voltage: 5~23.9 | Output Current: 7A | Output Power (W): 60 | No. Outputs: S | Case: Wall Mount | Size: 4.62" x 1.98" x 1.32" | Get a Quote |
| WMSAW65-24X ~ WMSAW65-48X | Input Voltage: 90~264 | Output Voltage: 24~48 | Output Current: 2700mA | Output Power (W): 65 | No. Outputs: S | Case: Wall Mount | Size: 4.62" x 1.98" x 1.32" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 100~240 |
| Input Voltage Range: | 90~264 |
| Input Frequency: | 47~63 |
| Output | |
| Output Voltage: | 5~23.9, 24~48 |
| Output Current: | 7A, 2700mA |
| Output Power (Watts): | 60, 65 |
| Short Circuit Protection: | Yes |
| General | |
| Efficiency: | 88% Minimum |
| Environmental | |
| Operating Temperature: | 0 to 40ºC |
| Storage Temperature: | -20 to 80ºC |
| Physical | |
| Weight: | US Plug: 8.29oz (235g) EU & Australian Plug: 8.64oz (245g) UK Plug: 8.99oz (255g) |

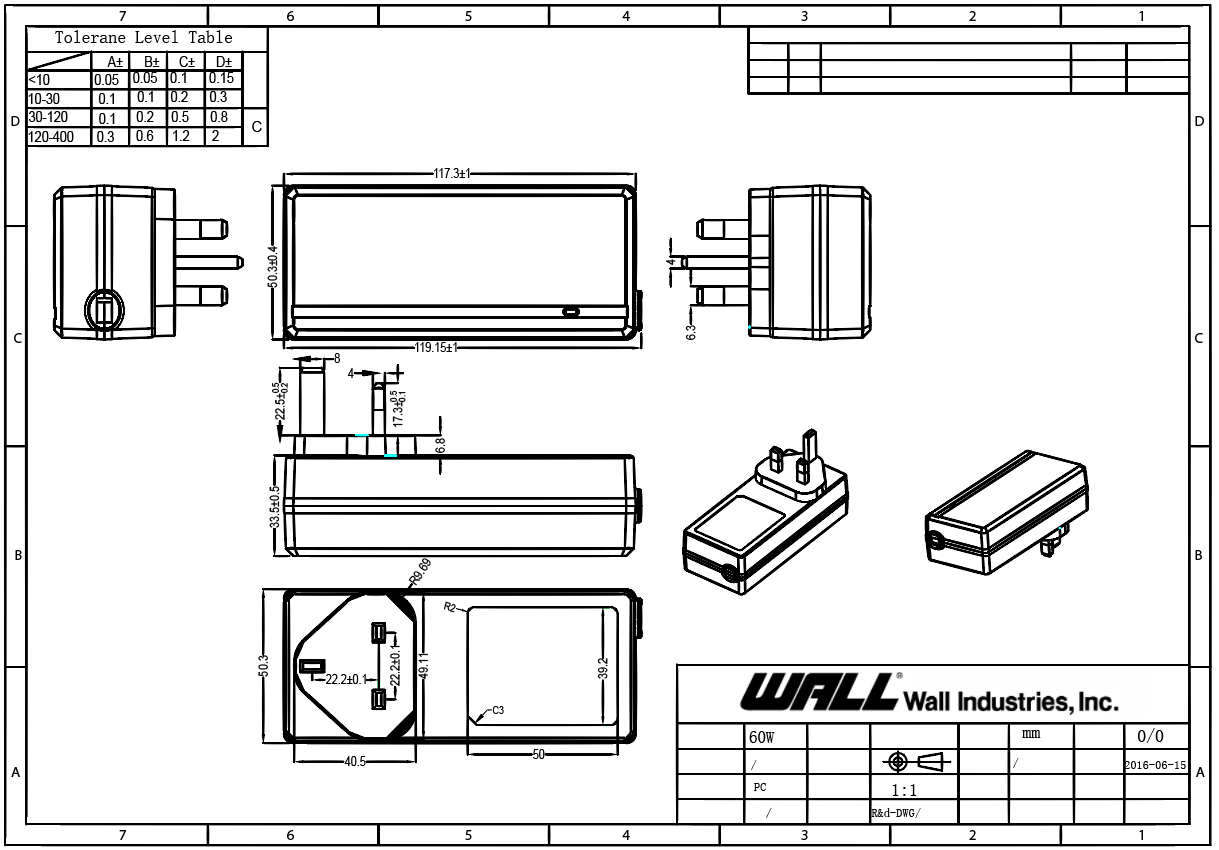

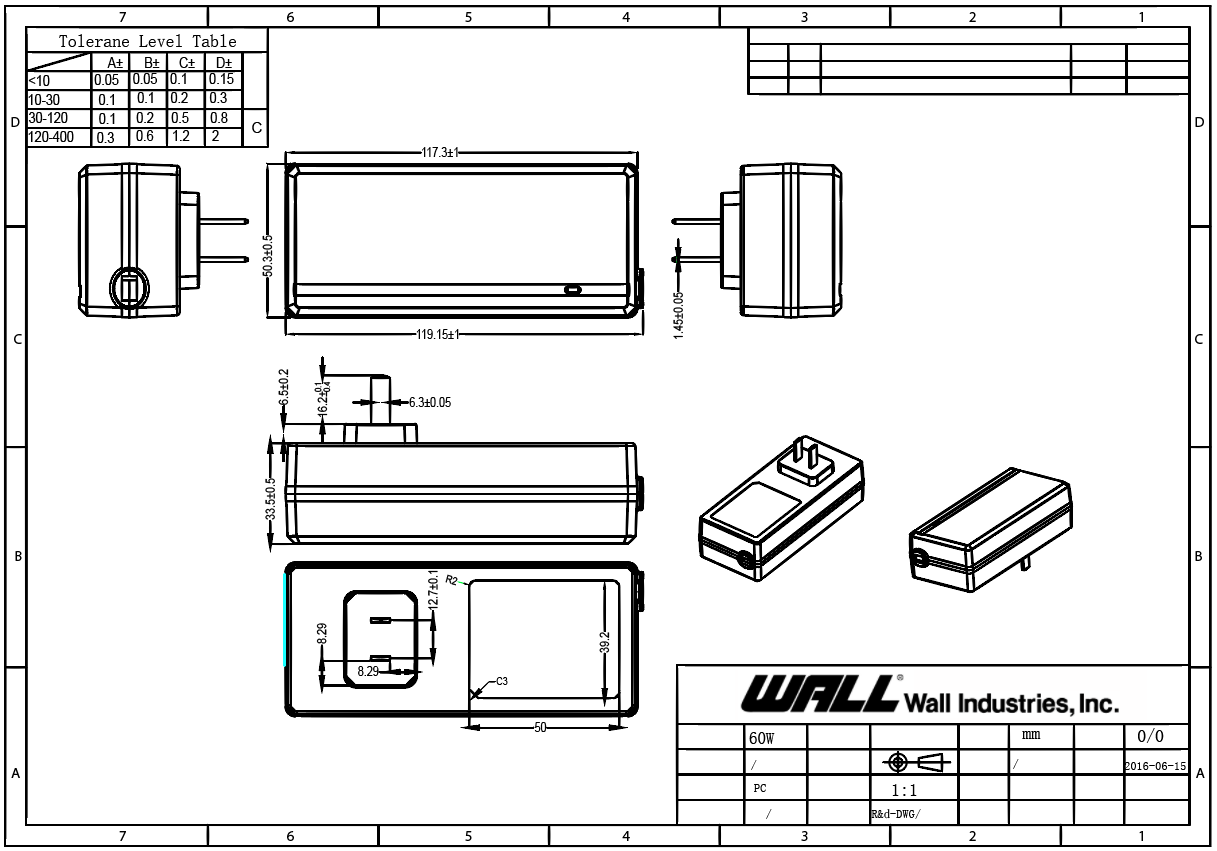

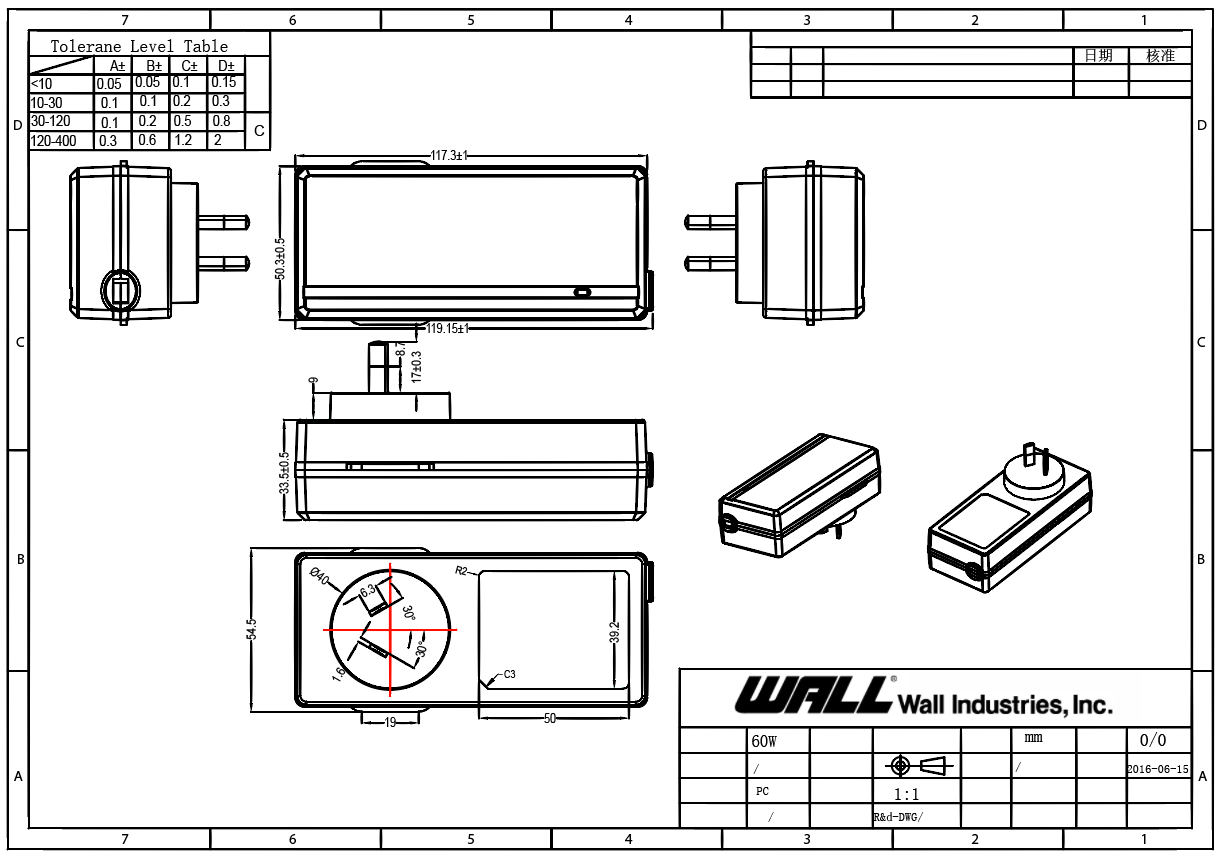

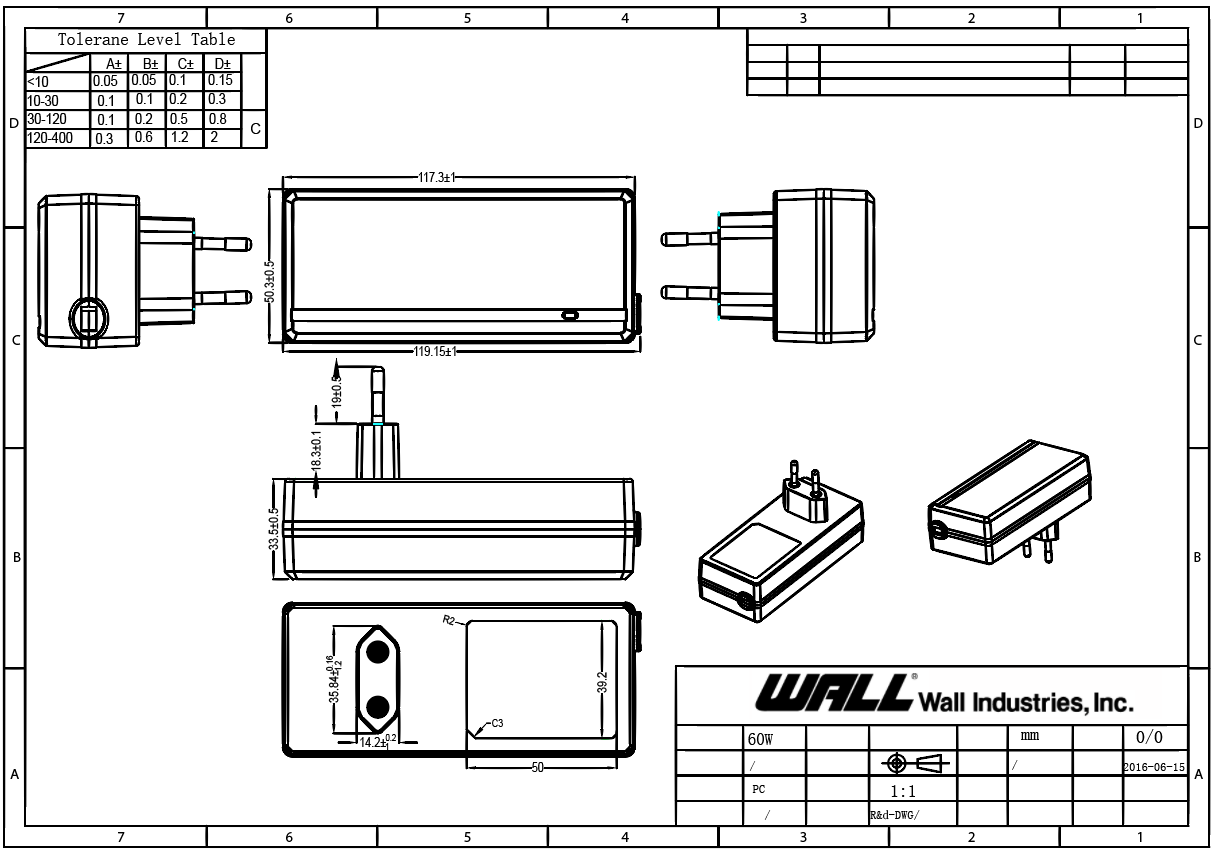

| Dimensions: | 4.62in x 1.98in x 1.32in (117.3mm x 50.3mm x 33.5mm) |
| Notes & safety | |
| Notes: | 1. “X” in model number stands for plug type. “X” can either be “U” for US plug, “E” for EU plug, “K” for UK plug, or “S” for Australian plug. 2. Please specify an output voltage within the range on the Models tab. 3. 6A & 7A models CANNOT meet Level VI compliance. 4. Ripple & Noise measurement is done by 20MHz bandwidth oscilloscope and the output paralleled a 0.1uF ceramic capacitor and a 47uF electrolysis capacitor (test under the condition of rated input and rated output)\ 5. This product is Listed to applicable standards and requirements by UL. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL, FCC, CE, CB, PSE and RCM |
| Energy Star Compliance: | Level VI Compliant (besides 6A & 7A models) |
