WMSAW14

The WMSAW14 series of Class II AC/DC wall mount power supplies provides up to 14.4 watts of output power. This series has single output models with an input voltage range of 100-240VAC. These supplies are protected against over voltage, over current, and short circuit conditions. The WMSAW14 series is RoHS and CEC/Energy Star Level V compliant and has UL/cUL, FCC, ICES-300, CE, GS, EUP, CB, BS1363, SAA, MEPS, C-TICK, and 3C safety approvals. US, JPN, EU, UK, AUS, and CN plug types are available.

• Class II • Single Outputs • RoHS Compliant • 100-240VAC Input Voltage Range • 7.5~14.4 Watts Output Power • Very Low Standby Power • MTBF: 50,000 Hours • 0°C to +40° Operating Temperature Range • Over Voltage, Over Current, and Short Circuit Protection • CEC / Energy Star Level V Compliant • UL/cUL, FCC, ICES-300, CE, GS, EUP, CB, BS1363, SAA, CCC, MEPS, and C-TICK Safety Approvals • United States, United Kingdom, Europe, China, Australia and Japan AC Plug Types Available • Several Output Connector Options Available
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
WMSAW709-x Input Voltage: 100~240 Output Voltage: 9 Output Current: 0.8A Output Power (W): 7.2 No. Outputs: S Case: Wall Mount Get a Quote
WMSAW705-x Input Voltage: 100~240 Output Voltage: 5 Output Current: 1.5A Output Power (W): 7.5 No. Outputs: S Case: Wall Mount Get a Quote
WMSAW775-x Input Voltage: 100~240 Output Voltage: 7.5 Output Current: 1A Output Power (W): 7.5 No. Outputs: S Case: Wall Mount Get a Quote
WMSAW975-x Input Voltage: 100~240 Output Voltage: 7.5 Output Current: 1.2A Output Power (W): 9 No. Outputs: S Case: Wall Mount Get a Quote
WMSAW909-x Input Voltage: 100~240 Output Voltage: 9 Output Current: 1A Output Power (W): 9 No. Outputs: S Case: Wall Mount Get a Quote
WMSAW1005-x Input Voltage: 100~240 Output Voltage: 5 Output Current: 2A Output Power (W): 10 No. Outputs: S Case: Wall Mount Get a Quote
WMSAW1009-x Input Voltage: 100~240 Output Voltage: 9 Output Current: 1.2A Output Power (W): 10.8 No. Outputs: S Case: Wall Mount Get a Quote
WMSAW1175-x Input Voltage: 100~240 Output Voltage: 7.5 Output Current: 1.5A Output Power (W): 11.25 No. Outputs: S Case: Wall Mount Get a Quote
WMSAW1212-x Input Voltage: 100~240 Output Voltage: 12 Output Current: 1A Output Power (W): 12 No. Outputs: S Case: Wall Mount Get a Quote
WMSAW1224-x Input Voltage: 100~240 Output Voltage: 24 Output Current: 0.5A Output Power (W): 12 No. Outputs: S Case: Wall Mount Get a Quote
WMSAW1205-x Input Voltage: 100~240 Output Voltage: 5 Output Current: 2.5A Output Power (W): 12.5 No. Outputs: S Case: Wall Mount Get a Quote
WMSAW1309-x Input Voltage: 100~240 Output Voltage: 9 Output Current: 1.5A Output Power (W): 13.5 No. Outputs: S Case: Wall Mount Get a Quote
WMSAW1412-x Input Voltage: 100~240 Output Voltage: 12 Output Current: 1.2A Output Power (W): 14.4 No. Outputs: S Case: Wall Mount Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 100~240
Input Frequency: 47-63Hz
Output
Output Voltage: 5, 7.5, 9, 12, 24
Voltage Accuracy: ±5%
Output Current: 0.5A, 1.2A, 1A, 0.8A, 1.5A, 2A, 2.5A
Output Power (Watts): 5, 7.2, 7.5, 10, 10.8, 11.25, 12, 12.5, 13.5, 14.4
Short Circuit Protection: Output shut-down; Automatic Recovery
Over Voltage Protection: Zener Diode Clamp
General
Isolation: Input to Output: 3000VAC (10mA/60 sec)
Environmental
Operating Temperature: 0 to 40°C
Storage Temperature: -20 to 60°C
Physical
Weight: 3.53oz (100g)

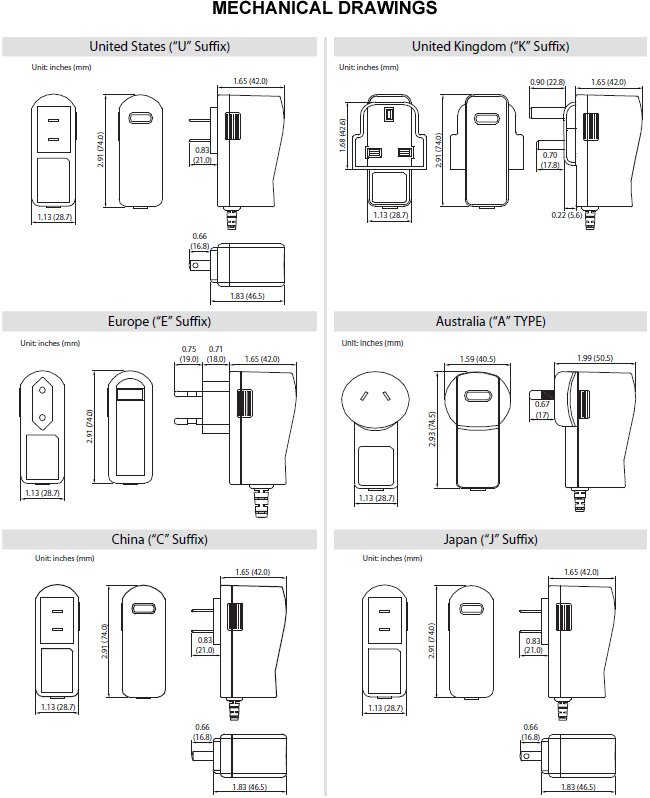

Dimensions: 2.91" x 1.13" x 1.83" (74.0 x 28.7 x 46.5 mm)
Notes & safety
Notes: 1. The “x” in the model number represents the type of plug: “U” for United States type, “K” for United Kingdom type, “E” for Europe type, “A” for Australia type, “C” for China type, and “J” for Japan type.
2. Ripple and noise is measured at 20MHz limited bandwidth with 0.1µF ceramic and 10µF electrolytic capacitors across the output
3. Several output connector options are available. Please call factory for ordering details.
Due to advances in technology, specifications subject to change without notice.
Safety Approvals: UL/cUL, FCC, ICES-300, CE, GS, EUP, CB, BS1363, SAA, CCC, MEPS, C-TICK
RoHS Compliance: Yes
Energy Star Compliance: Level V
