WMSAW12
The WMSAW12 series of AC DC Wall Mount power supplies provides up to 12 watts of continuous output power in a compact 2.32” x 1.91” x 1” package. This series consists of single output models with an input voltage range of 90~264V and models ranging from 5 to 24VDC. Cable attachment or USB inputs are available and 5 different plug types are available: BS, US, EU, AU, and JPN. Each model is protected against over voltage, over current, and short circuit conditions and models above 5V are Level VI compliant. Please call factory for ordering details.
• Wide Input Voltage Range of 90~264VAC
• Light Weight
• Compact Size
• Cable or USB Option
• Low Ripple and Noise
• RoHS Compliant
• Level VI Compliant
• Over Current and Short Circuit Protection
• Input Protection
• Various Safety Approvals (See Specifications)
• Output Voltages Ranging from 5 to 24VDC
• Single Outputs
• 4 Plug Types Available: EU, US, AU and UK
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| WMSAW12-05-0500x | Input Voltage: 100~240 | Output Voltage: 5 | Output Current: 500mA | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount | Size: 2.32" x 1.61" x 1.04" | Get a Quote |
| WMSAW12-075-1600x | Input Voltage: 100~240 | Output Voltage: 7.5 | Output Current: 1600mA | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount | Size: 2.32" x 1.61" x 1.04" | Get a Quote |
| WMSAW12-09-1200x | Input Voltage: 100~240 | Output Voltage: 9 | Output Current: 1200mA | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount | Size: 2.32" x 1.61" x 1.04" | Get a Quote |
| WMSAW12-12-2400x | Input Voltage: 100~240 | Output Voltage: 12 | Output Current: 1000mA | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount | Size: 2.32" x 1.61" x 1.04" | Get a Quote |
| WMSAW12-19-0600x | Input Voltage: 100~240 | Output Voltage: 19 | Output Current: 600mA | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount | Size: 2.32" x 1.61" x 1.04" | Get a Quote |
| WMSAW12-24-0500x | Input Voltage: 100~240 | Output Voltage: 24 | Output Current: 500mA | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount | Size: 2.32" x 1.61" x 1.04" | Get a Quote |
| WMSAW12-05-0500USBx | Input Voltage: 100~240 | Output Voltage: 5 | Output Current: 500mA | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount | Size: 2.32" x 1.61" x 1.04" | Get a Quote |
| WMSAW12-075-1600USBx | Input Voltage: 100~240 | Output Voltage: 7.5 | Output Current: 1600mA | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount | Size: 2.32" x 1.61" x 1.04" | Get a Quote |
| WMSAW12-09-1200USBx | Input Voltage: 100~240 | Output Voltage: 9 | Output Current: 1200mA | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount | Size: 2.32" x 1.61" x 1.04" | Get a Quote |
| WMSAW12-12-2400USBx | Input Voltage: 100~240 | Output Voltage: 12 | Output Current: 1000mA | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount | Size: 2.32" x 1.61" x 1.04" | Get a Quote |
| WMSAW12-19-0600USBx | Input Voltage: 100~240 | Output Voltage: 19 | Output Current: 600mA | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount | Size: 2.32" x 1.61" x 1.04" | Get a Quote |
| WMSAW12-24-0500USBx | Input Voltage: 100~240 | Output Voltage: 24 | Output Current: 500mA | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount | Size: 2.32" x 1.61" x 1.04" | Get a Quote |
| WMSAW12-05-1500USBx | Input Voltage: 90~264 | Output Voltage: 5 | Output Current: 1500mA | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount | Size: 2.32" x 1.61" x 1.04" | Get a Quote |
| WMSAW12-09-1000USBx | Input Voltage: 90~264 | Output Voltage: 9 | Output Current: 1000mA | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount | Size: 2.32" x 1.61" x 1.04" | Get a Quote |
| WMSAW12-15-800USBx | Input Voltage: 90~264 | Output Voltage: 15 | Output Current: 800mA | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount | Size: 2.32" x 1.61" x 1.04" | Get a Quote |
| WMSAW12-05-2000USBx | Input Voltage: 90~264 | Output Voltage: 5 | Output Current: 2000mA | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount | Size: 2.32" x 1.61" x 1.04" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 100~240 |
| Input Frequency: | 47~63Hz |
| Output | |
| Output Voltage: | 5, 7.5, 9, 12, 19, 24 |
| Output Current: | 500mA, 1600mA, 1200mA, 1000mA |
| Output Power (Watts): | 12 |
| Short Circuit Protection: | 3.6A Inner Current Fuse |
| General | |
| Environmental | |
| Operating Temperature: | 10 to 40°C |
| Storage Temperature: | -20 to 80°C |
| Physical | |
| Weight: | 3.53oz (100g) |
| Dimensions: | 2.32" x 1.61" x 1.04" |
| Notes & safety | |

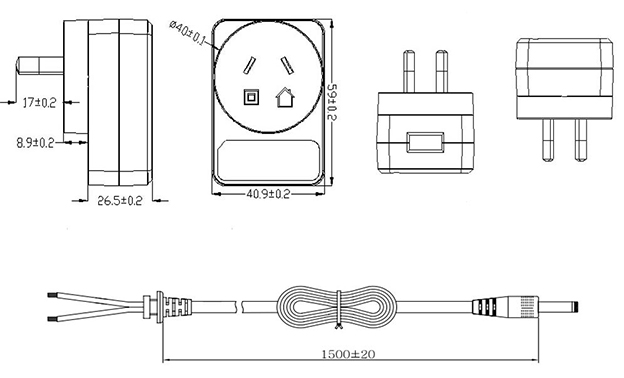

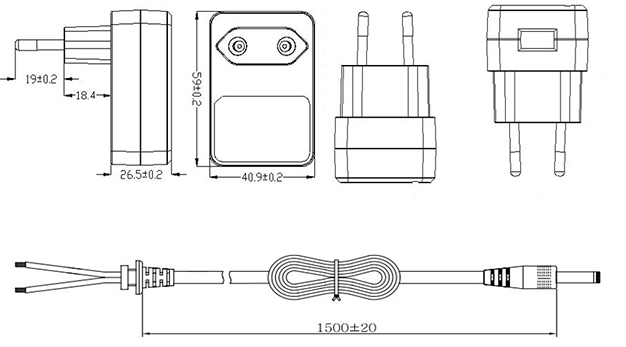

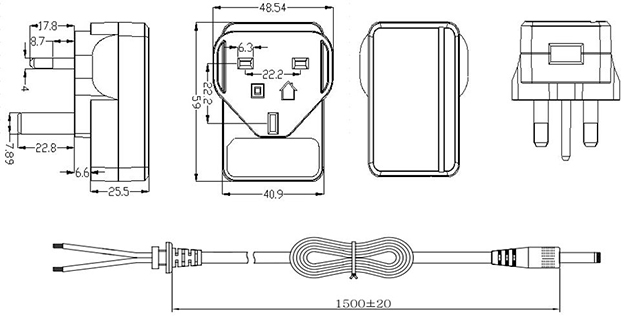

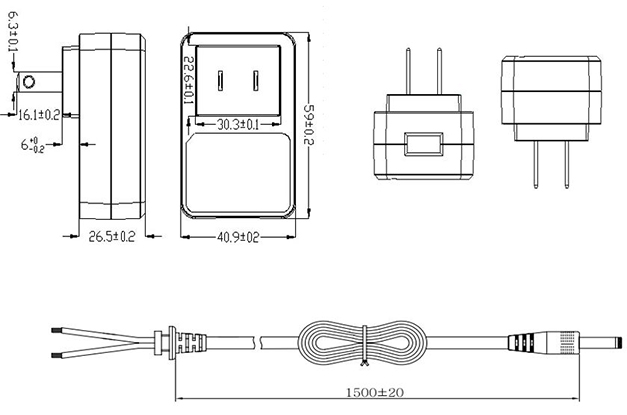

| Notes: | 1. “x” in model name represents plug type. “x” can either be “E” for EU Plug, “U” for US Plug, “K” for UK Plug, or “A” for AU plug. 2. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications are subject to change without notice. |
| Safety Approvals: | EU and UK Models: CE, CB, and GSUS Models: UL, cUL, FCCAU Models: SAA, C-Tick, RCM |
| RoHS Compliance: | Yes |
| Energy Star Compliance: | Level VI |
