WMM24
The WMM24 series offers up to 24 watts of output power in a single output wall mount power supply with interchangeable plugs. This series has UL60601-1, EN60601-1-2, and IEC 60601-1 medical safety approvals. All units are short circuit, over voltage, and over load protected. Output voltages range from 5 to 48VDC. All units meet CEC, ERP, EISA, and Energy Star Level V requirements as well as UL 1310 NEC Class 2 requirements. These supplies are RoHS compliant and have been 100% burn-in and Hi-pot tested. Plugs come in United States (US), Europe (EU), Australia (AUS), and United Kingdom (UK) types. Plugs are sold separately so please contact factory for ordering details.
• Up to 24W
• Single Output
• Output Voltages Available from 5VDC to 48VDC
• Wide Input Voltage Range: 90~264VAC
• High Reliability
• Over Voltage, Over Load, and Short Circuit Protection
• Input Voltage Range of 90-264VAC
• Interchangeable Plugs for Worldwide Applications
• Power ON LED Indicator
• High Reliability
• Short Circuit, Over Voltage, and Over Load Protection
• Medical 60601-1 3rd Edition Approved
• RoHS and Energy Level V Compliant
• UL60601-1 3rd Edition, CSA-C22.2 No.60601-1 3rd Edition, EN60601-1 3rd Edition, and IEC EN60601-1 3rd Edition Safety Approvals
• Interchangeable Plug Options: EU, UK, AUS, and US Types
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| WMM15-1Y05KU | Input Voltage: 90~264 | Output Voltage: 5 | Output Current: 3A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.13" x 1.97" x 2.06" | Get a Quote |
| WMM15-1Y05KE | Input Voltage: 90~264 | Output Voltage: 5 | Output Current: 3A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.13" x 1.97" x 2.84" | Get a Quote |
| WMM15-1Y05KA | Input Voltage: 90~264 | Output Voltage: 5 | Output Current: 3A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.13" x 1.97" x 2.47" | Get a Quote |
| WMM15-1Y05KK | Input Voltage: 90~264 | Output Voltage: 5 | Output Current: 3A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.13" x 1.97" x 2.44" | Get a Quote |
| WMM24-1Y09KU | Input Voltage: 90~264 | Output Voltage: 9 | Output Current: 2.67A | Output Power (W): 24 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.13" x 1.97" x 2.06" | Get a Quote |
| WMM24-1Y12KU | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 2A | Output Power (W): 24 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.13" x 1.97" x 2.06" | Get a Quote |
| WMM24-1Y16KU | Input Voltage: 90~264 | Output Voltage: 16 | Output Current: 1.5A | Output Power (W): 24 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.13" x 1.97" x 2.06" | Get a Quote |
| WMM24-1Y18KU | Input Voltage: 90~264 | Output Voltage: 18 | Output Current: 1.34A | Output Power (W): 24 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.13" x 1.97" x 2.06" | Get a Quote |
| WMM24-1Y24KU | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 1A | Output Power (W): 24 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.13" x 1.97" x 2.06" | Get a Quote |
| WMM24-1Y36KU | Input Voltage: 90~264 | Output Voltage: 36 | Output Current: 0.67A | Output Power (W): 24 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.13" x 1.97" x 2.06" | Get a Quote |
| WMM24-1Y48KU | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 0.5A | Output Power (W): 24 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.13" x 1.97" x 2.06" | Get a Quote |
| WMM24-1Y09KE | Input Voltage: 90~264 | Output Voltage: 9 | Output Current: 2.67A | Output Power (W): 24 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.13" x 1.97" x 2.84" | Get a Quote |
| WMM24-1Y12KE | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 2A | Output Power (W): 24 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.13" x 1.97" x 2.84" | Get a Quote |
| WMM24-1Y16KE | Input Voltage: 90~264 | Output Voltage: 16 | Output Current: 1.5A | Output Power (W): 24 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.13" x 1.97" x 2.84" | Get a Quote |
| WMM24-1Y18KE | Input Voltage: 90~264 | Output Voltage: 18 | Output Current: 1.34A | Output Power (W): 24 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.13" x 1.97" x 2.84" | Get a Quote |
| WMM24-1Y24KE | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 1A | Output Power (W): 24 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.13" x 1.97" x 2.84" | Get a Quote |
| WMM24-1Y36KE | Input Voltage: 90~264 | Output Voltage: 36 | Output Current: 0.67A | Output Power (W): 24 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.13" x 1.97" x 2.84" | Get a Quote |
| WMM24-1Y48KE | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 0.5A | Output Power (W): 24 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.13" x 1.97" x 2.84" | Get a Quote |
| WMM24-1Y09KA | Input Voltage: 90~264 | Output Voltage: 9 | Output Current: 2.67A | Output Power (W): 24 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.13" x 1.97" x 2.47" | Get a Quote |
| WMM24-1Y12KA | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 2A | Output Power (W): 24 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.13" x 1.97" x 2.47" | Get a Quote |
| WMM24-1Y16KA | Input Voltage: 90~264 | Output Voltage: 16 | Output Current: 1.5A | Output Power (W): 24 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.13" x 1.97" x 2.47" | Get a Quote |
| WMM24-1Y18KA | Input Voltage: 90~264 | Output Voltage: 18 | Output Current: 1.34A | Output Power (W): 24 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.13" x 1.97" x 2.47" | Get a Quote |
| WMM24-1Y24KA | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 1A | Output Power (W): 24 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.13" x 1.97" x 2.47" | Get a Quote |
| WMM24-1Y36KA | Input Voltage: 90~264 | Output Voltage: 36 | Output Current: 0.67A | Output Power (W): 24 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.13" x 1.97" x 2.47" | Get a Quote |
| WMM24-1Y48KA | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 0.5A | Output Power (W): 24 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.13" x 1.97" x 2.47" | Get a Quote |
| WMM24-1Y09KK | Input Voltage: 90~264 | Output Voltage: 9 | Output Current: 2.67A | Output Power (W): 24 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.13" x 1.97" x 2.44" | Get a Quote |
| WMM24-1Y12KK | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 2A | Output Power (W): 24 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.13" x 1.97" x 2.44" | Get a Quote |
| WMM24-1Y16KK | Input Voltage: 90~264 | Output Voltage: 16 | Output Current: 1.5A | Output Power (W): 24 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.13" x 1.97" x 2.44" | Get a Quote |
| WMM24-1Y18KK | Input Voltage: 90~264 | Output Voltage: 18 | Output Current: 1.34A | Output Power (W): 24 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.13" x 1.97" x 2.44" | Get a Quote |
| WMM24-1Y24KK | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 1A | Output Power (W): 24 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.13" x 1.97" x 2.44" | Get a Quote |
| WMM24-1Y36KK | Input Voltage: 90~264 | Output Voltage: 36 | Output Current: 0.67A | Output Power (W): 24 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.13" x 1.97" x 2.44" | Get a Quote |
| WMM24-1Y48KK | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 0.5A | Output Power (W): 24 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.13" x 1.97" x 2.44" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| Input Frequency: | 47-63Hz |
| Output | |
| Output Voltage: | 5, 9, 12, 16, 18, 24, 36, 48 |
| Output Current: | 0.5A, 0.67A, 1A, 1.34A, 1.5A, 2A, 2.67A, 3A |
| Output Power (Watts): | 15, 24 |
| Short Circuit Protection: | Automatic Recovery |
| Over Voltage Protection: | Latch, AC Recycle |
| General | |
| Environmental | |
| Operating Temperature: | -20 to 60°C |
| Storage Temperature: | -20 to 85°C |
| Physical | |
| Weight: | 5.64oz (160g) max. |

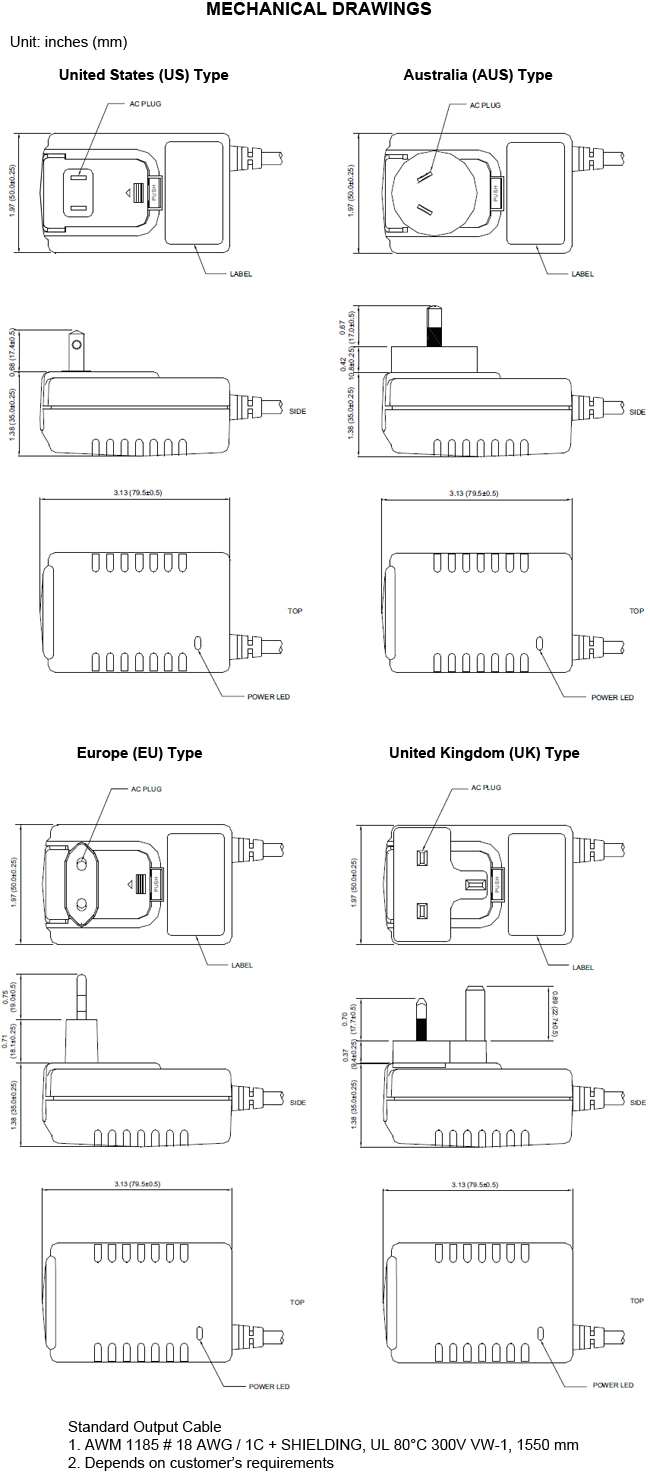

| Dimensions: | US Type: 3.13" x 1.97" x 2.06" (79.5 x 50.0 x 52.4 mm) EU Type: 3.13" x 1.97" x 2.84" (79.5 x 50.0 x 72.1 mm) AUS Type: 3.13" x 1.97" x 2.47" (79.5 x 50.0 x 62.8 mm) UK Type: 3.13" x 1.97" x 2.44" (79.5 x 50.0 x 62.1 mm) |
| Notes & safety | |
| Notes: | 1. Ripple and Noise is measured at 20MHz bandwidth with a tantalum 10µF in parallel with a 0.1µF ceramic capacitor. 2. Suffix Options: United States (US) = U; Europe (EU) = E; Australia (AUS) = A; and United Kingdom (UK) = K. 3. Individual interchangeable AC plugs are available for purchase. Please contact factory for ordering details. 4. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL 60601-1, CSA-C22.2 NO.601.1-M90, NEMKO EN60601-1, CB IEC60601-1 |
| RoHS Compliance: | Yes |
| Energy Star Compliance: | Level V |
