WMIGPSU12
The WMIGPSU12 series of AC/DC interchangeable wall mount power supplies offers up to 12 watts of output power. This series consists of single output models ranging from 5~48VDC and a universal input voltage of 100~240VAC. This series is protected against short circuit, over voltage, and over current protection and is also Level VI compliant. Six plug types are available: US, European, 2-Pin Australian, UK, Korean, and Argentina and optional output connectors are also available. WMIGPSU12 has UL60950-1; CSA C22.2, EN60950-1, IEC60950-1, and J60950-1 safety approvals. Please call factory for order details.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| WMIGPSU12x-1 | Input Voltage: 100~240 | Output Voltage: 5~6 | Output Current: 2.40A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: See Series Page | Get a Quote |
| WMIGPSU12x-1-1 | Input Voltage: 100~240 | Output Voltage: 6~8 | Output Current: 2.00A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: See Series Page | Get a Quote |
| WMIGPSU12x-4 | Input Voltage: 100~240 | Output Voltage: 13~16 | Output Current: 0.93A | Output Power (W): 12.09 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: See Series Page | Get a Quote |
| WMIGPSU12x-2 | Input Voltage: 100~240 | Output Voltage: 8~11 | Output Current: 1.50A | Output Power (W): 12.10 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: See Series Page | Get a Quote |
| WMIGPSU12x-3 | Input Voltage: 100~240 | Output Voltage: 11~13 | Output Current: 1.10A | Output Power (W): 12.10 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: See Series Page | Get a Quote |
| WMIGPSU12x-7 | Input Voltage: 100~240 | Output Voltage: 27~33 | Output Current: 0.45A | Output Power (W): 12.15 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: See Series Page | Get a Quote |
| WMIGPSU12x-5 | Input Voltage: 100~240 | Output Voltage: 16~21 | Output Current: 0.75A | Output Power (W): 12.18 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: See Series Page | Get a Quote |
| WMIGPSU12x-6 | Input Voltage: 100~240 | Output Voltage: 21~27 | Output Current: 0.58A | Output Power (W): 12.18 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: See Series Page | Get a Quote |
| WMIGPSU12x-8 | Input Voltage: 100~240 | Output Voltage: 33~48 | Output Current: 0.37A | Output Power (W): 12.21 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: See Series Page | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 100~240 |
| Input Frequency: | 47 - 63Hz |
| Output | |
| Output Voltage: | 5~6, 6~8, 8~11, 11~13, 13~16, 16~21, 21~27, 27~33, 33~48 |
| Output Current: | 2.40A, 2.00A, 1.50A, 1.10A, 0.93A, 0.75A, 0.58A, 0.45A, 0.37A |
| Output Power (Watts): | 12, 12.09, 12.10, 12.15, 12.18, 12.21 |
| Short Circuit Protection: | Automatic Recovery |
| Over Voltage Protection: | 110~140% |
| General | |
| Efficiency: | 83.40% Max. |
| Environmental | |
| Operating Temperature: | 0 to 40ºC |
| Storage Temperature: | -40 to +85ºC |
| Physical | |
| Weight: | 3.53~4.23oz (100~120g) |

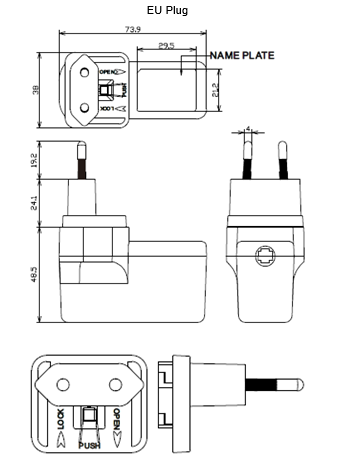

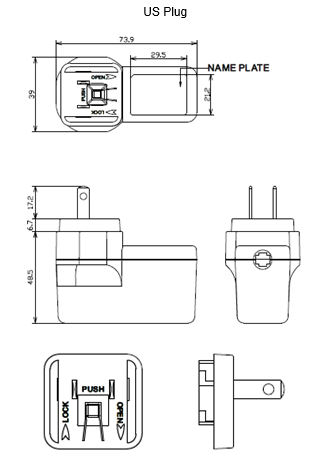

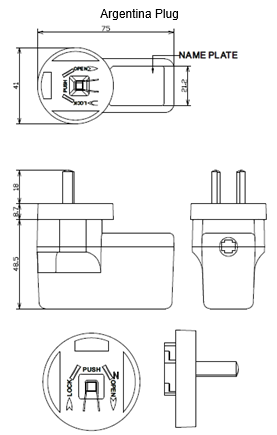

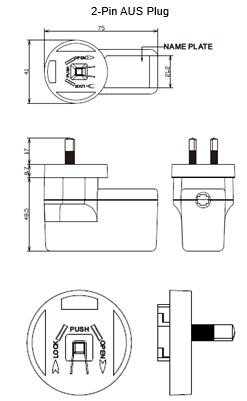

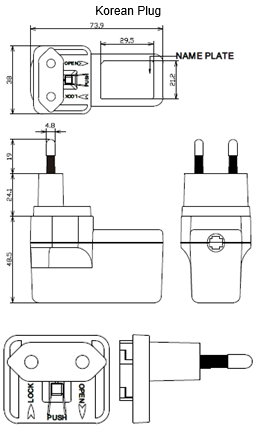

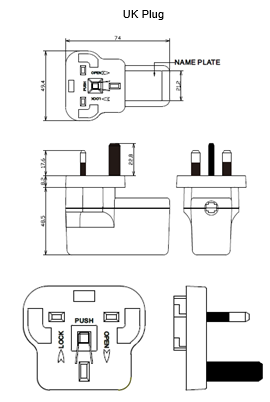

| Dimensions: | US, EU, and KR Types: 2.91in x 1.54in x 1.91in SA and AR Types: 2.95in x 1.61in x 1.91in UK Type: 2.91in x 1.94in x 1.91in |
| Notes & safety | |
| Notes: | (1) The “x” in the model name stands for the plug type. “x” can be “U” for US Plug, “E” for EU Plug, “SA” for 2-Pin Australian Plug, “BS” for UK Plug, “KR” for Korean Plug, or “AR” for Argentina Plug. (2) Efficiency averages the efficiency at 25, 50, 75, and 100% of max. rated output current. (3) Standard output cables: 5~8V: UL2468, 18AWG, 1M 8~11V: UL2468, 22AWG, 4FT 11~48V: UL2468, 24AWG, 6FT (4) This product is Listed to applicable standards and requirements by UL. |
| Safety Approvals: | UL60950-1; CSA C22.2, EN60950-1, UEC60950-1, J60950-1 |
| Energy Star Compliance: | Level VI |
