WMIGMPU18
The WMIGMPU18 power supply series of AC/DC wall mount with interchangeable plugs offers 18 watts of output power in a compact package. This series consists of single output models with a universal input voltage range of 100~240VAC and several plug options. A US plug, EU plug, 2-Pin Australian plug, UK plug, Korean plug, and Argentinian plug are available for this series as well as optional output connectors. Each model in this series has short circuit, over current and over voltage protection while 5~6 and 5~58VDC models meet EISA 2007/DoE (VI) & EU ErP/CoC (5) standards. This series has UL: ES60601-1, CSA: C22.2 No. 60601-1, CB: IEC 60601-1 and EN60601-1 safety approvals.
X: “U” for American plug, “E” for EU plug, “SA” for 2-Pin Australian plug, “BS” for UK plug, “KR” for Korean plug, “AR” for Argentina plug.
WMIGMPU18U-1: 5~6V Model with US Plug
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| WMIGMPU18x-1 | Input Voltage: 100~240 | Output Voltage: 5~6 | Output Current: 3.00A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.17" x 1.54" x 2.21" | Get a Quote |
| WMIGMPU18x-1-1 | Input Voltage: 100~240 | Output Voltage: 6~8 | Output Current: 2.50A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.17" x 1.54" x 2.21" | Get a Quote |
| WMIGMPU18x-2 | Input Voltage: 100~240 | Output Voltage: 8~11 | Output Current: 2.25A | Output Power (W): 18.04 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.17" x 1.54" x 2.21" | Get a Quote |
| WMIGMPU18x-3 | Input Voltage: 100~240 | Output Voltage: 11~13 | Output Current: 1.64A | Output Power (W): 18.04 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.17" x 1.54" x 2.21" | Get a Quote |
| WMIGMPU18x-4 | Input Voltage: 100~240 | Output Voltage: 13~16 | Output Current: 1.38A | Output Power (W): 18.08 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.17" x 1.54" x 2.21" | Get a Quote |
| WMIGMPU18x-5 | Input Voltage: 100~240 | Output Voltage: 16~21 | Output Current: 1.13A | Output Power (W): 18.08 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.17" x 1.54" x 2.21" | Get a Quote |
| WMIGMPU18x-6 | Input Voltage: 100~240 | Output Voltage: 21~27 | Output Current: 0.86A | Output Power (W): 18.09 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.17" x 1.54" x 2.21" | Get a Quote |
| WMIGMPU18x-7 | Input Voltage: 100~240 | Output Voltage: 27~33 | Output Current: 0.67A | Output Power (W): 18.15 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.17" x 1.54" x 2.21" | Get a Quote |
| WMIGMPU18x-8 | Input Voltage: 100~240 | Output Voltage: 33~58 | Output Current: 0.55A | Output Power (W): 18.56 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 3.17" x 1.54" x 2.21" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 100~240 |
| Input Frequency: | 47 - 63Hz |
| Output | |
| Output Voltage: | 5~6, 6~8, 8~11, 11~13, 13~16, 16~21, 21~27, 27~33, 33~58 |
| Output Current: | 3.00A, 2.50A, 2.25A, 1.64A, 1.38A, 1.13A, 0.86A, 0.67A, 0.55A |
| Output Power (Watts): | 15, 18.04, 18.08, 18.09, 18.15, 18.56 |
| Short Circuit Protection: | Automatic Recovery |
| Over Voltage Protection: | Zener Diode, 100~140% |
| General | |
| Efficiency: | Up to 85.45% |
| Environmental | |
| Operating Temperature: | 0 to 40ºC |
| Storage Temperature: | -40 to 85ºC |
| Physical | |
| Weight: | 4.94~5.64oz (140~160g) |

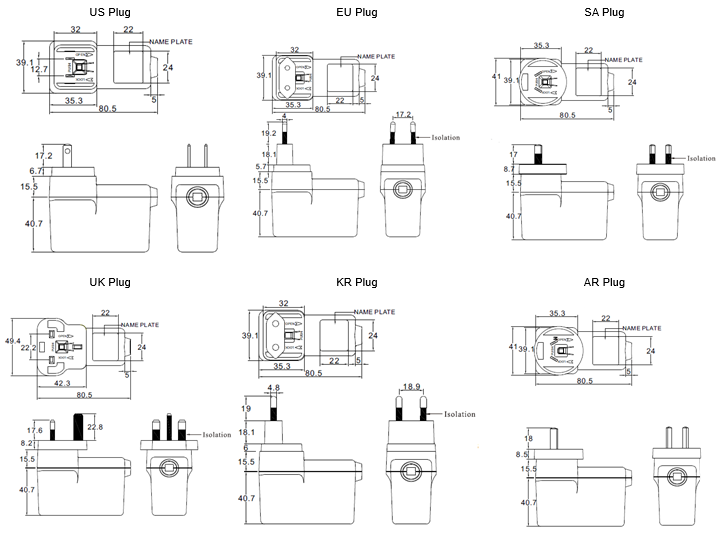

| Dimensions: | US, EU, and Korean Plug: 3.17in x 1.54in x 2.21in 2-Pin Australian and Argentina Plug: 3.17in x 1.61in x 2.21in UK Plug: 3.17in x 1.94in x 2.21in |
| Notes & safety | |
| Notes: | 1. “X” in model number represents plug type. “X” can either be “U” for American plug, “E” for EU plug, “SA” for 2-Pin Australian plug, “BS” for UK plug, “KR” for Korean plug, or “AR” for Argentina plug. 2. Avg. Efficiency: averages the efficiency at 25, 50, 75, and 100% of max. rated output current. 3. Standard Output Cables: 5~5.9V: UL2468, 16AWG, 1M 6~8V: UL2468, 20AWG, 4FT 8~11: UL2468, 16AWG, 1M 11~13: UL2468, 18AWG, 1M 13~58V: UL2468, 22AWG, 5FT 4. This product is Listed to applicable standards and requirements by UL. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL: ES60601-1, CSA: C22.2 NO. 60601-1, CB: IEC 60601-1, EN: EN60601-1 |
| Energy Star Compliance: | DoE Level VI, CoC 5 (Except 6~8V Model) |
