WMIEM1019
The WMIEM1019 series of medical AC/DC power supplies with six interchangeable plugs offers up to 24 watts of output power in a compact package. This series consists of single output models with a wide input voltage range of 100~240VAC. Each model has over voltage, over current, and short circuit protection, is CEC Level VI (DoE) compliant, and has UL/cUL, UL60601, CB 60601, CE, and FCC safety approvals. Please contact factory for order details.
• Wide Input Voltage Range of 100-240VAC
• Meets CEC Level VI (DoE)
• Six Interchangeable Plugs Available
• RoHS Compliant
• Vertical Case with SR Output
• Over Voltage, Over Current, and Short Circuit Protection
• UL/cUL, UL60601, CB 60601, CE, and FCC Safety Approvals
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| WMIEM1019Ax | Input Voltage: 100~240 | Output Voltage: 5~8 | Output Current: 3A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 1.53" x 1.34" x 2.25" | Get a Quote |
| WMIEM1019Gx | Input Voltage: 100~240 | Output Voltage: 5~8 | Output Current: 3A | Output Power (W): 18 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 1.53" x 1.34" x 2.25" | Get a Quote |
| WMIEM1019Bx | Input Voltage: 100~240 | Output Voltage: 9~13 | Output Current: 2A | Output Power (W): 20 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 1.53" x 1.34" x 2.25" | Get a Quote |
| WMIEM1019Cx | Input Voltage: 100~240 | Output Voltage: 14~19 | Output Current: 1.42A | Output Power (W): 20 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 1.53" x 1.34" x 2.25" | Get a Quote |
| WMIEM1019Dx | Input Voltage: 100~240 | Output Voltage: 20~27 | Output Current: 1A | Output Power (W): 20 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 1.53" x 1.34" x 2.25" | Get a Quote |
| WMIEM1019Ex | Input Voltage: 100~240 | Output Voltage: 28~35 | Output Current: 0.71A | Output Power (W): 20 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 1.53" x 1.34" x 2.25" | Get a Quote |
| WMIEM1019Fx | Input Voltage: 100~240 | Output Voltage: 36~48 | Output Current: 0.55A | Output Power (W): 20 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 1.53" x 1.34" x 2.25" | Get a Quote |
| WMIEM1019Hx | Input Voltage: 100~240 | Output Voltage: 9~13 | Output Current: 2A | Output Power (W): 24 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 1.53" x 1.34" x 2.25" | Get a Quote |
| WMIEM1019Jx | Input Voltage: 100~240 | Output Voltage: 14~19 | Output Current: 1.71A | Output Power (W): 24 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 1.53" x 1.34" x 2.25" | Get a Quote |
| WMIEM1019Kx | Input Voltage: 100~240 | Output Voltage: 20~27 | Output Current: 1.2A | Output Power (W): 24 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 1.53" x 1.34" x 2.25" | Get a Quote |
| WMIEM1019Mx | Input Voltage: 100~240 | Output Voltage: 28~35 | Output Current: 0.85A | Output Power (W): 24 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 1.53" x 1.34" x 2.25" | Get a Quote |
| WMIEM1019Nx | Input Voltage: 100~240 | Output Voltage: 36~48 | Output Current: 0.66A | Output Power (W): 24 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 1.53" x 1.34" x 2.25" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 100~240 |
| Input Frequency: | 50~60Hz |
| Output | |
| Output Voltage: | 5~8, 9~13, 14~19, 20~27, 28~35, 36~48 |
| Output Current: | 0.55A, 0.66A, 0.71A, 0.85A, 1A, 1.2A, 1.42A, 1.71A, 2A, 3A |
| Output Power (Watts): | 15, 18, 20, 24 |
| Short Circuit Protection: | Automatic Recovery |
| Over Voltage Protection: | Automatic Recovery |
| General | |
| Environmental | |
| Operating Temperature: | 0 to 40ºC |
| Storage Temperature: | -20 to 85ºC |
| Physical | |
| Weight: | 5.29oz (150g) |

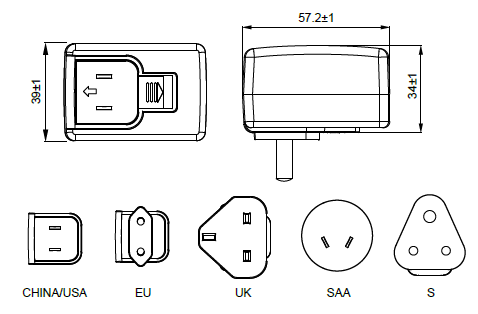

| Dimensions: | 1.53in x 1.34in x 2.25in (39mm x 34mm x 57.2mm) |
| Notes & safety | |
| Notes: | 1. “X” in model number indicates plug type. “X” can be “U” for USA plug, “C” for China plug, “E” for EU plug, “K” for UK plug, “A” for SAA plug, or “S” for South African plug. 2. Ripple & Noise is measured using 20MHz bandwidth limited oscilloscope and terminated each output with a 0.1uF ceramic capacitor & parallel with 47uF aluminum capacitor at full load and nominal line. 3. This product is Listed to applicable standards and requirements by UL. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL/cUL, UL60601, CB 60601, CE, FCC |
| RoHS Compliance: | Yes |
| Energy Star Compliance: | Level VI |
