WMIEM1012

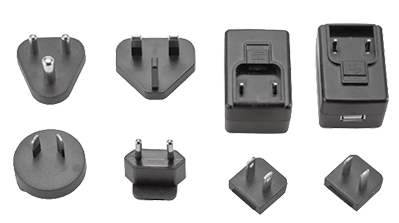

The WMIEM1012 series of AC/DC power supplies with interchangeable plugs offers up to 12 watts of output power in a 2.25” x 1.54” x 1.34” vertical package. This series consists of single output models with input voltage range of 100-240VAC and several different options. Six different plug types are available: USA, China, EU, UK, SAA, or South African and either a USB or Strain Relief output type is available. This series has over voltage, over current, and short circuit protection as well as UL/cUL, UL60601, CB 6601, CE, and FCC safety approvals.
X: “U” for US Plug, “E” for EU Plug, “K” for UK Plug, “C” for China Plug, “A” for SAA Plug, or “S” for South Africa Plug
Y: “USB” for USB Output, or “SR” for SR Output
WMIEM1012B-KSR = 9~11VDC Output with UK Plug and SR Output
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| WMIEM1012A-xy | Input Voltage: 100~240 | Output Voltage: 5~8 | Output Current: 2.4A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.25" x 1.54" x 1.34" | Get a Quote |
| WMIEM1012B-xy | Input Voltage: 100~240 | Output Voltage: 9~11 | Output Current: 1.33A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.25" x 1.54" x 1.34" | Get a Quote |
| WMIEM1012C-xy | Input Voltage: 100~240 | Output Voltage: 12~17 | Output Current: 1.0A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.25" x 1.54" x 1.34" | Get a Quote |
| WMIEM1012D-xy | Input Voltage: 100~240 | Output Voltage: 18~24 | Output Current: 0.66A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.25" x 1.54" x 1.34" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 100~240 |
| Input Frequency: | 50-60Hz |
| Output | |
| Output Voltage: | 5~8V, 9~11V, 12~17V, 18~24V |
| Output Current: | 0.66A, 1A, 1.33A, 2.4A |
| Output Power (Watts): | 12 |
| Short Circuit Protection: | Automatic Recovery |
| Over Voltage Protection: | Automatic Recovery |
| General | |
| Environmental | |
| Operating Temperature: | 0 to 40ºC |
| Storage Temperature: | -20 to 85ºC |
| Physical | |
| Weight: | 2.47oz (70g) |

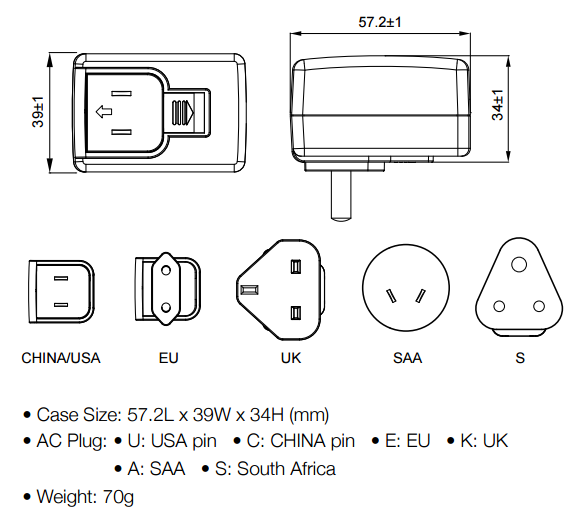

| Dimensions: | 2.25in x 1.54in x 1.34in (57.2mm x 39mm x 34mm) |
| Notes & safety | |
| Notes: | 1. “X” in model number indicates plug type. “X” can either be “U” for US plug, “E” for EU plug, “K” for UK plug, “C” for China plug, “A” for SAA plug, or “S” for South Africa plug. “Y” in model number indicates output type. “Y” can either be “USB” for USB output, or “SR” for SR output. Example: WMIEM1012A-KUSB would be a model with UK plug and USB output. 2. Line Regulation is defined by changing ±10% of input voltage from nominal line at rated load. 3. Ripple & Noise is measured by using 20MHz bandwidth limited oscilloscope and terminated each output with a 0.1uF ceramic capacitor & parallel with 47uF aluminum capacitor at full load and nominal line. 4. This product is Listed to applicable standards and requirements by UL. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL/cUL, UL60601, CB 60601, CE, FCC |
| Energy Star Compliance: | Level VI |
