WMIEA1062
The WMIEA1062 series of AC/DC wall mount with interchangeable plugs offers 60 watts of output power in a 4.45” x 1.87” x 1.22” package. This series consists of single output models with a wide input voltage range of 100~240VAC and LED indication. Five interchangeable plugs are available for this series: US/China, EU, UK, SAA, and South African plugs. Each model in this series has over voltage, short circuit, over current, and over temperature protection, is RoHS and Level VI compliant, and has UL/cUL, CB, CE, FCC and CCC safety approvals. Please contact factory for order details.
X: “U” for USA Plug, “C” for China Plug, “E” for EU Plug, “K” for UK Plug, “A” for SAA Plug, or “S” for South African Plug
WMIEA106215K = 15VDC Output with UK Plug
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| WMIEA10625x | Input Voltage: 100~240 | Output Voltage: 5 | Output Current: 3A | Output Power (W): 60 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 4.45" x 1.87" x 1.22" | Get a Quote |
| WMIEA10629x | Input Voltage: 100~240 | Output Voltage: 9 | Output Current: 3A | Output Power (W): 60 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 4.45" x 1.87" x 1.22" | Get a Quote |
| WMIEA106215x | Input Voltage: 100~240 | Output Voltage: 15 | Output Current: 3A | Output Power (W): 60 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 4.45" x 1.87" x 1.22" | Get a Quote |
| WMIEA106220x | Input Voltage: 100~240 | Output Voltage: 20 | Output Current: 3A | Output Power (W): 60 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 4.45" x 1.87" x 1.22" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 100~240 |
| Input Frequency: | 50~60Hz |
| Output | |
| Output Voltage: | 5, 9, 15, 20 |
| Output Current: | 3A |
| Output Power (Watts): | 60 |
| Short Circuit Protection: | Automatic Recovery |
| Over Voltage Protection: | Automatic Recovery |
| Thermal Protection: | Option |
| General | |
| Environmental | |
| Operating Temperature: | 0 to 40ºC |
| Storage Temperature: | -20 to +85ºC |
| Physical | |
| Weight: | 10.58oz (300g) |

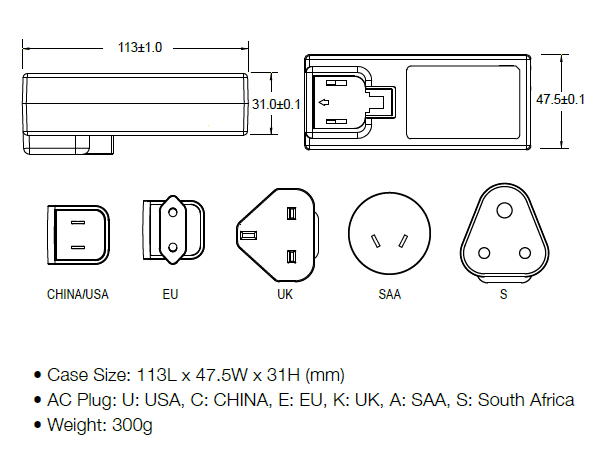

| Dimensions: | 4.45in x 1.87in x 1.22in (113mm x 47.5mm x 31mm) |
| Notes & safety | |
| Notes: | 1. “X” in model number represents the plug type. “X” can either be “U” for USA plug, “C” for China plug, “E” for EU plug, “K” for UK plug, “A” for SAA plug, or “S” for South African plug. 2. Ripple & Noise is measured by using 20MHz bandwidth limited oscilloscope and terminated each output with a 0.1uF ceramic capacitor & parallel with 47uF aluminum capacitor at full load and nominal line. 3. Line regulation is defined by changing ±10% of input voltage from nominal line at rated load. 4. Certificates listed are for reference only. Please contact factory for more details. 5. This product is Listed to applicable standards and requirements by UL. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL/cUL, CB, CE, FCC, and CCC |
| RoHS Compliance: | Yes |
