WMIEA1019
The WMIEA1019 series of interchangeable wall mount power supplies offers up to 20 watts of output power in a compact 2.25″ x 1.33″ x 1.53″ package. This series consists of single output models with output voltages ranging from 5V to 48V and wide input voltage range of 100VAC to 240VDC. Each model in this series is RoHS compliant and meets CEC Level V, VI efficiency. Each model is also protected against short circuit, over voltage, over current, and over temperature conditions and meets IEC60950 safety approval. Six interchangeable plug types are available for the WMIEA1019 series: USA plug, China plug, EU plug, UK plug, SAA plug, and South Africa plug. Optional output cables are also available. Please call factory for order details.
X: “UC” for USA/China Plug, “E” for EU Plug, “K” for UK Plug, “A” for SAA Plug, “S” for South Africa Plug, or “5” for All Plugs
WMIEA1019CS = 14~19VDC Output with South African Plug
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| WMIEA1019Ax | Input Voltage: 100~240 | Output Voltage: 5~8 | Output Current: 3A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.25" x 1.33" x 1.53" | Get a Quote |
| WMIEA1019Bx | Input Voltage: 100~240 | Output Voltage: 9~13 | Output Current: 2A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.25" x 1.33" x 1.53" | Get a Quote |
| WMIEA1019Cx | Input Voltage: 100~240 | Output Voltage: 14~19 | Output Current: 1.42A | Output Power (W): 20 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.25" x 1.33" x 1.53" | Get a Quote |
| WMIEA1019Dx | Input Voltage: 100~240 | Output Voltage: 20~27 | Output Current: 1A | Output Power (W): 20 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.25" x 1.33" x 1.53" | Get a Quote |
| WMIEA1019Ex | Input Voltage: 100~240 | Output Voltage: 28~35 | Output Current: 0.71A | Output Power (W): 20 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.25" x 1.33" x 1.53" | Get a Quote |
| WMIEA1019Fx | Input Voltage: 100~240 | Output Voltage: 36~48 | Output Current: 0.55A | Output Power (W): 20 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.25" x 1.33" x 1.53" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 100~240 |
| Output | |
| Output Voltage: | 5~8, 9~13, 14~19, 20~27, 28~35, 36~48 |
| Output Current: | 3A, 2A, 1.42A, 1A, 0.71A, 0.55A |
| Output Power (Watts): | 15, 20 |
| Short Circuit Protection: | Automatic Recovery |
| Over Voltage Protection: | Automatic Recovery |
| Thermal Protection: | Latch Mode |
| General | |
| Environmental | |
| Operating Temperature: | 0 to 40°C |
| Storage Temperature: | -20 to 85°C |
| Physical | |
| Weight: | 5.29oz. |

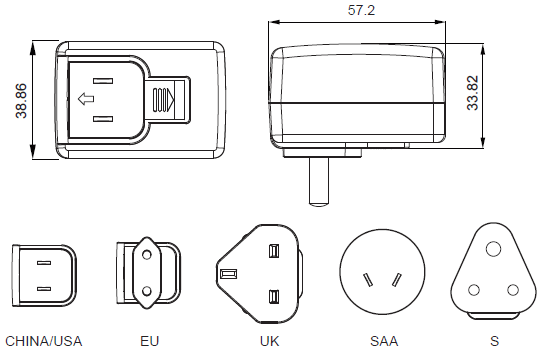

| Dimensions: | 2.25in x 1.33in x 1.53in (57.2mm x 33.82in x 38.86in) |
| Notes & safety | |
| Notes: | (1) “x” in model number represents the AC Plug Type. “x” can either be “UC” for USA/China plug, “E” for EU plug, “K” for UK plug, “A” for SAA plug, “S” for South Africa plug, or “5” for all plugs. (2) Specify necessary output voltage. Ex: 12V (3) Ripple & Noise is measured by using 20MHz bandwidth limited oscilloscope and terminated each output with a 0.1µF ceramic capacitor & parallel with 47µF aluminum capacitor at full load and nominal line. (4) Line regulation is defined by changing ±10% of input voltage from nominal line at rated load. (5) Certificates listed are for reference only. Please contact factory for details. (6) This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL/cUL, CB, CE, FCC, CCC |
| RoHS Compliance: | Yes |
| Energy Star Compliance: | Level VI |
