WMICP65

The WMICP65 series of AC/DC wall mount with interchangeable plug power supplies offers up to 65 watts of output power in a 4.62” x 1.98” x 1.32” package. This series consists of single output models with a wide input voltage range of 90~264VAC and either a US, EU, UK or Australian plug. Each model in this series has high efficiency, is RoHS compliant, and has over current and short circuit protection. This series has UL, CE, CB, and FCC safety approvals.

• 90~264VAC Input Voltage Range • High Efficiency • Level VI Compliant (besides 6A & 7A models) • US, EU, UK, and Australian Plugs Available • Over Current and Short Circuit Protection • RoHS Compliant • DC Cable=1m • UL, FCC, CE, CB, PSE and RCM Approvals
Part Number Setup:
X: "U” for US Plug, “E” for EU Plug, “K” for UK Plug, or “S” for Australian Plug
Example:
WMICP65-24K = 24V Output with UK Plug
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case Size
WMICP65-05X ~ WMICP65-239X Input Voltage: 90~264 Output Voltage: 5~23.9 Output Current: 7A Output Power (W): 60 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Size: 4.62" x 1.98" x 1.32" Get a Quote
WMICP65-24X ~ WMICP65-48X Input Voltage: 90~264 Output Voltage: 24~48 Output Current: 2700mA Output Power (W): 65 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Size: 4.62" x 1.98" x 1.32" Get a Quote
Specification Value
Input
Input Voltage (Nominal): 100~240
Input Voltage Range: 90~264
Input Frequency: 47~63
Output
Output Voltage: 5~23.9, 24~48
Output Current: 7A, 2700mA
Output Power (Watts): 60, 65
Short Circuit Protection: Yes
General
Efficiency: 88% Minimum
Environmental
Operating Temperature: 0 to 40ºC
Storage Temperature: -20 to 80ºC
Physical
Weight: Main Unit: 8.47oz (240g)
US/Australian Plug: 0.35oz (10g)
EU: 0.78oz (22g)
UK: 0.99oz (28g)

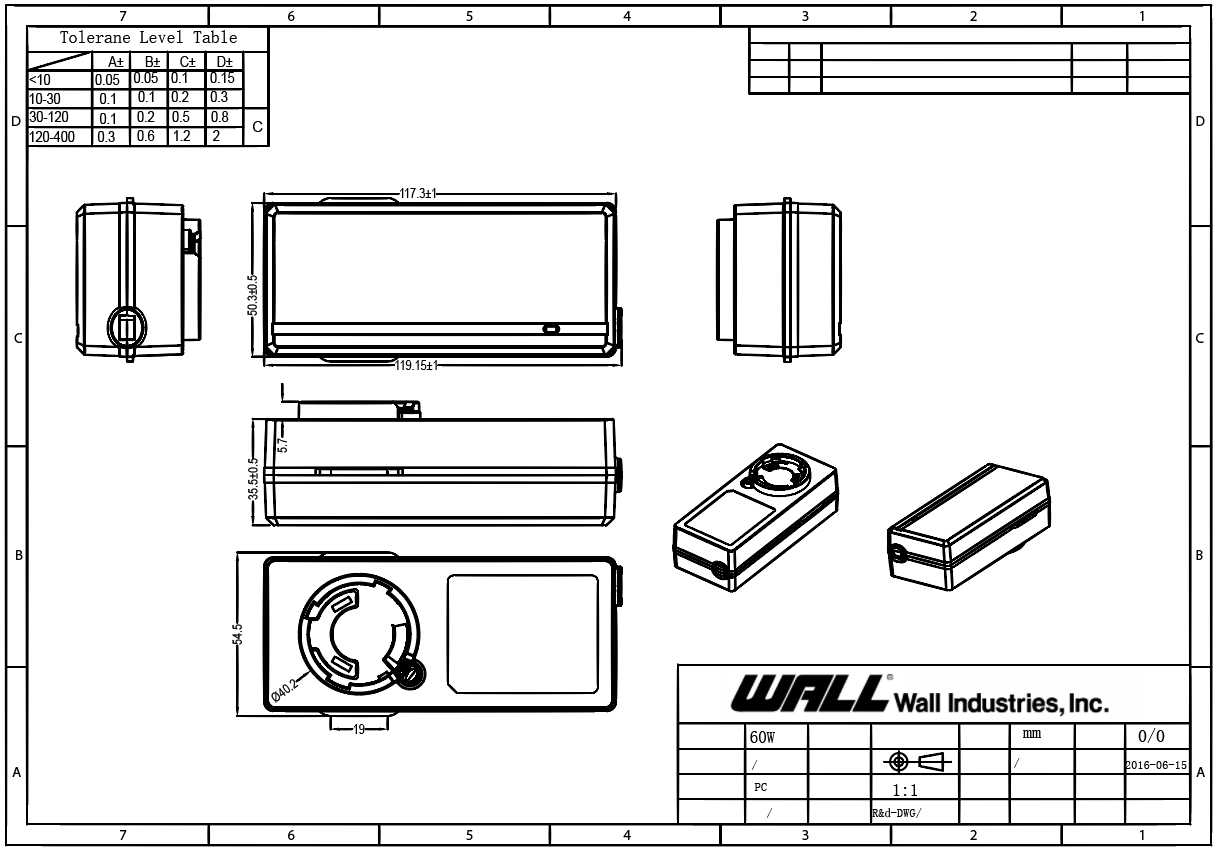

Dimensions: 4.62in x 1.98in x 1.32in (117.3mm x 50.3mm x 33.5mm)
Notes & safety
Notes: 1. “X” in model number stands for plug type. “X” can either be “U” for US plug, “E” for EU plug, “K” for UK Plug, or “S” for Australian plug.
2. Please specify output voltage within range listed on Models tab.
3. 6A & 7A models CANNOT meet Level VI compliance.
4. Ripple & Noise measurement is done by 20MHz bandwidth oscilloscope and the output paralleled a 0.1uF ceramic capacitor and a 47uF electrolysis capacitor (test under the condition of rated input and rated output)
5. This product is Listed to applicable standards and requirements by UL.
*Due to advances in technology, specifications subject to change without notice.
Safety Approvals: UL, FCC, CE, CB, PSE and RCM
Energy Star Compliance: Level VI Compliant (besides 6A & 7A models)
