WMGPSU40

The WMGPSU40 series of AC DC wall mount power supplies provides up to 40 watts of output power in a compact package. This series consists of single output models with output voltages ranging from 5~48V and with an input voltage of 100~240VAC. Four different output plugs are also available for this series: US plug, EU Plug, 2-Pin Aus Plug, and UK Plug. All models are protected against short circuit, over voltage, and over current conditions and have UL60950-1, CSA C22.2, EN60950-1, IEC60950-1, and J60950 safety approvals. Models other than 7.5V are Energy Level VI compliant. Please call factory for order details.

• Universal Input Voltage Range of 100-240VAC • Output Voltages Ranging from 5~58V • High Efficiency • 5~6, 8~58V Models Meet EISA 2007/DoE (VI) & ErP/CoC (5) • Single Outputs • Optional Plug Types Available: US, EU, 2 Pin Aus, and UK • Optional Output Connectors Available • Short Circuit, Over Voltage, and Over Current Protection • UL60950-1, CSA C22.2, EN60950-1, IEC60950-1, and J60950 Safety Approvals • Low Leakage Current • CE Marked
Part Number Setup:
X: “U”for US Plug, “E” for EU Plug, “SA” for 2-Pin AUS Plug, or “BS” for UK Plug.
Example:
WMGPSU40E-1 = 5~6VDC Output Model with EU Plug
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case Size
WMGPSU40x-1 Input Voltage: 100~240 Output Voltage: 5~6 Output Current: 5~4.16A Output Power (W): 25 No. Outputs: S Case: Wall Mount Size: 2.97" x 1.26" x 1.87" Get a Quote
WMGPSU40x-1-1 Input Voltage: 100~240 Output Voltage: 6~8 Output Current: 5~3.75A Output Power (W): 30 No. Outputs: S Case: Wall Mount Size: 2.97" x 1.26" x 1.87" Get a Quote
WMGPSU40x-5 Input Voltage: 100~240 Output Voltage: 16~21 Output Current: 2.50~1.90A Output Power (W): 40 No. Outputs: S Case: Wall Mount Size: 2.97" x 1.26" x 1.87" Get a Quote
WMGPSU40x-2 Input Voltage: 100~240 Output Voltage: 8~11 Output Current: 5~3.64A Output Power (W): 40.04 No. Outputs: S Case: Wall Mount Size: 2.97" x 1.26" x 1.87" Get a Quote
WMGPSU40x-3 Input Voltage: 100~240 Output Voltage: 11~13 Output Current: 3.64~3.08A Output Power (W): 40.04 No. Outputs: S Case: Wall Mount Size: 2.97" x 1.26" x 1.87" Get a Quote
WMGPSU40x-4 Input Voltage: 100~240 Output Voltage: 13~16 Output Current: 3.08~2.50A Output Power (W): 40.04 No. Outputs: S Case: Wall Mount Size: 2.97" x 1.26" x 1.87" Get a Quote
WMGPSU40x-6 Input Voltage: 100~240 Output Voltage: 21~27 Output Current: 1.90~1.49A Output Power (W): 40.23 No. Outputs: S Case: Wall Mount Size: 2.97" x 1.26" x 1.87" Get a Quote
WMGPSU40x-7 Input Voltage: 100~240 Output Voltage: 27~33 Output Current: 1.49~1.22A Output Power (W): 40.26 No. Outputs: S Case: Wall Mount Size: 2.97" x 1.26" x 1.87" Get a Quote
WMGPSU40x-8 Input Voltage: 100~240 Output Voltage: 33~58 Output Current: 1.22~0.70 Output Power (W): 40.6 No. Outputs: S Case: Wall Mount Size: 2.97" x 1.26" x 1.87" Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 100~240
Input Frequency: 50-60Hz
Output
Output Voltage: 5~6, 6~8, 8~11, 11~13, 13~16, 16~21, 21~27, 27~33, 33~58
Output Current: 1.22~0.70A, 1.49~1.22A, 1.90~1.49A, 2.50~1.90A, 3.08~2.50A, 3.64~3.08A, 5~3.64A, 5~3.75A, 5~4.16A
Output Power (Watts): 25, 30, 40, 40.04, 40.23, 40.26, 40.6
Short Circuit Protection: Automatic Recovery
Over Voltage Protection: Protected by Zener Diode, 110-140%
General
Efficiency: Up to 88.60%
Environmental
Operating Temperature: 0 to 40°C
Storage Temperature: -40 to 85°C
Physical
Weight: 6.0~6.7oz (170~190g)

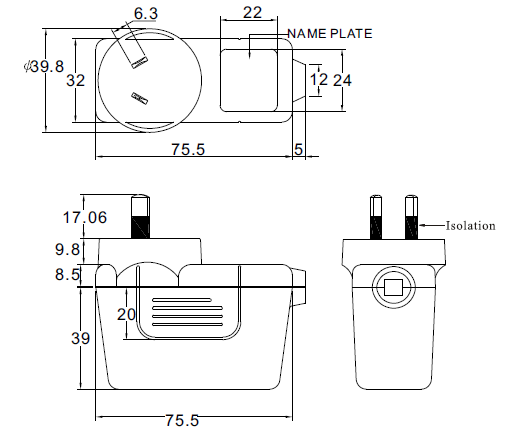

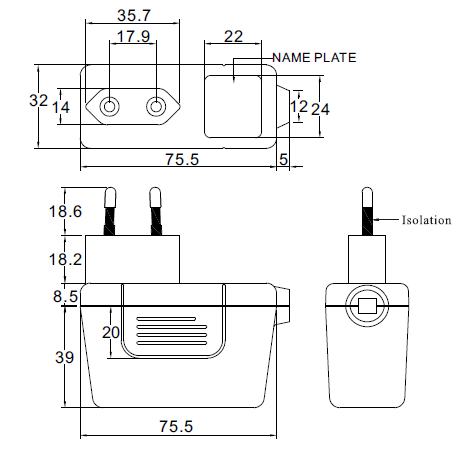

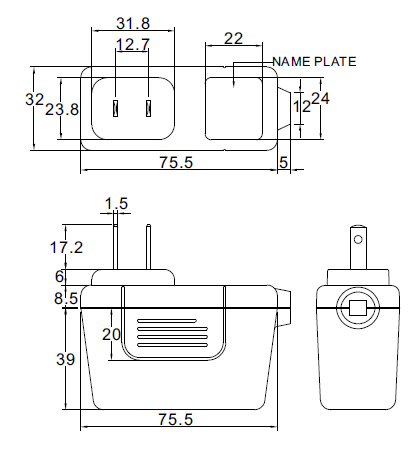

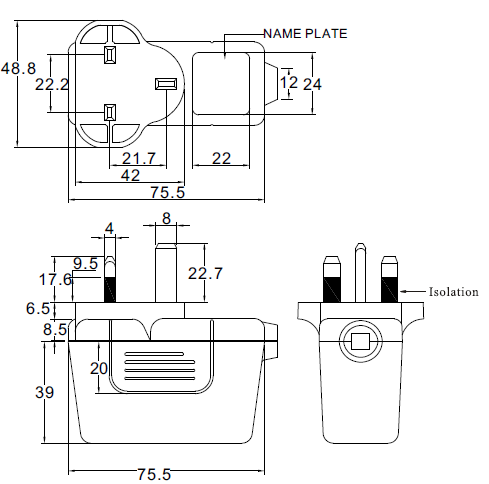

Dimensions: U Type and E Type Models: 2.97" x 1.26" x 1.87"
SA Type Models: 2.97" x 1.57" x 1.87"
BS Type Models: 2.97" x 1.92" x 1.87"
Notes & safety
Notes: (1) “x” in model number references the plug types available. “X” can either be; “U”= U Type= US Plug, “E”=E Type= EU Plug, “SA”= SA Type= 2-Pin AUS Plug, or “BS”= BS Type= UK Plug. Please call factory for order details.
(2) Average efficiency at 25, 50, 75, 100% of max. rated output current.
(3) Standard Output Cables:
5~6V: UL1571, 14AWG, 1M
6~8V: UL2468, 18AWG, 1M
8~16V: UL2468, 16AWG, 1M
16~58V: UL2468. 20AWG, 5FT
(4) Optional output connectors available.
(5) This product is Listed to applicable standards and requirements by UL.
*Due to advances in technology, specifications subject to change without notice.
Safety Approvals: UL60950-1; CSA C22.2, EN60950-1, IEC60950-1, J60950
Energy Star Compliance: Level VI
