WMGPSU15X-CC

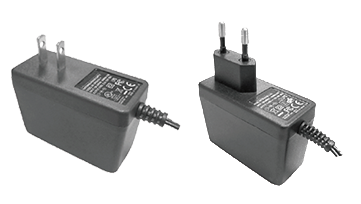

The WMGPSU15x-CC series of AC/DC wall mount power supplies offers up to 15 watts of output power in a 2.81” x 1.34” x 1.97” compact package. This series consists of single output models with a universal input voltage range of 100~240VAC as well high efficiency and reliability. Each model in this series has over voltage, over current, and short circuit protection as well as either a US or EU plug option. This series also has UL60950-1: CSA C22.2, EN60950-1, and IEC60950-1 safety approvals.
X: “U” for US plug or “E” for European plug.
WMGPSU15U-1-CC = 5~6VDC Output Voltage with US Plug
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| WMGPSU15x-1-CC | Input Voltage: 100~240 | Output Voltage: 5~6 | Output Current: 2.40A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount | Size: 2.81" x 1.34" x 1.97" | Get a Quote |
| WMGPSU15X-1-1-CC | Input Voltage: 100~240 | Output Voltage: 6~8 | Output Current: 2.00A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount | Size: 2.81" x 1.34" x 1.97" | Get a Quote |
| WMGSPU15X-2-CC | Input Voltage: 100~240 | Output Voltage: 8~11 | Output Current: 1.80A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount | Size: 2.81" x 1.34" x 1.97" | Get a Quote |
| WMGPSU15X-3-CC | Input Voltage: 100~240 | Output Voltage: 11~13 | Output Current: 1.36A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount | Size: 2.81" x 1.34" x 1.97" | Get a Quote |
| WMGPSU15X-4-CC | Input Voltage: 100~240 | Output Voltage: 13~16 | Output Current: 1.15A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount | Size: 2.81" x 1.34" x 1.97" | Get a Quote |
| WMGPSU5X-5-CC | Input Voltage: 100~240 | Output Voltage: 16~21 | Output Current: 0.94A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount | Size: 2.81" x 1.34" x 1.97" | Get a Quote |
| WMGPSU15X-6-CC | Input Voltage: 100~240 | Output Voltage: 21~27 | Output Current: 0.72A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount | Size: 2.81" x 1.34" x 1.97" | Get a Quote |
| WMGPSU15X-7-CC | Input Voltage: 100~240 | Output Voltage: 27~33 | Output Current: 0.55A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount | Size: 2.81" x 1.34" x 1.97" | Get a Quote |
| WMGPSU15X-8-CC | Input Voltage: 100~240 | Output Voltage: 33~48 | Output Current: 0.45A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount | Size: 2.81" x 1.34" x 1.97" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/240 |
| Input Voltage Range: | 100~240 |
| Input Frequency: | 50 to 60Hz |
| Output | |
| Output Voltage: | 5~6, 6~8, 8~11, 11~13, 13~16, 16~21, 21~27, 27~33, 33~48 |
| Output Current: | 0.45A, 0.55A, 0.72A |
| Output Power (Watts): | 12, 15 |
| Short Circuit Protection: | Automatic Recovery |
| Over Voltage Protection: | Protected By Zener Diode |
| General | |
| Efficiency: | Up to 80% |
| Environmental | |
| Operating Temperature: | 0 to 40ºC |
| Storage Temperature: | -40 to 85ºC |
| Physical | |
| Weight: | 2.47~5.29oz (70~150g) |
| Dimensions: | 2.81in x 1.34in x 1.97in (71.5mm x 34mm x 50mm) |
| Notes & safety | |
| Notes: | 1. “X” in model number indicates plug type. “X” can either be “U” for US plug or “E” for European plug. 2. Optional output connectors are available. 3. This product is Listed to applicable standards and requirements by UL. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL60905-1; CSA C22.2, EB60950-1, IEC60950-1 |
