WMGPSU15

The WMGPSU15 series of AC/DC of wall mount power supplies offers up to 15 watts of output power. Single outputs are available for this series with an input range of 100 to 240VAC, 50 to 60Hz. Five different plug types are available for this series: American plug type, European plug type, 3-pin and 2-pin Australian plug types, and UK plug type. This series is protected against over voltage, over current, and short circuit conditions and is Efficiency Level VI compliant (models 5V and over). This series offers high efficiency and reliability and optional output connectors are available. Please call factory for ordering details.

• Universal Input Voltage of 100~240VAC • Meets Efficiency Level VI • Single Output • Optional Output Connectors Available • Low Leakage Current • Compact Package • Over Voltage, Over Current, and Short Circuit Protection • UL60950-1, CSA C22.2, EN60950-1, and IEC60950-1 Safety Approvals • Several Different Plug Types Available
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
WMGPSU15U-1 Input Voltage: 100~240 Output Voltage: 5~6 Output Current: 2.4~2A Output Power (W): 12 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU15E-1 Input Voltage: 100~240 Output Voltage: 5~6 Output Current: 2.4~2A Output Power (W): 12 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU15S-1 Input Voltage: 100~240 Output Voltage: 5~6 Output Current: 2.4~2A Output Power (W): 12 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU15SA-1 Input Voltage: 100~240 Output Voltage: 5~6 Output Current: 2.4~2A Output Power (W): 12 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU15BS-1 Input Voltage: 100~240 Output Voltage: 5~6 Output Current: 2.4~2A Output Power (W): 12 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU15U-1-1 Input Voltage: 100~240 Output Voltage: 6~8 Output Current: 2~1.5A Output Power (W): 12 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU15E-1-1 Input Voltage: 100~240 Output Voltage: 6~8 Output Current: 2~1.5A Output Power (W): 12 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU15S-1-1 Input Voltage: 100~240 Output Voltage: 6~8 Output Current: 2~1.5A Output Power (W): 12 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU15SA-1-1 Input Voltage: 100~240 Output Voltage: 6~8 Output Current: 2~1.5A Output Power (W): 12 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU15BS-1-1 Input Voltage: 100~240 Output Voltage: 6~8 Output Current: 2~1.5A Output Power (W): 12 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU15U-2 Input Voltage: 100~240 Output Voltage: 8~11 Output Current: 1.80~1.36A Output Power (W): 15 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU15E-2 Input Voltage: 100~240 Output Voltage: 8~11 Output Current: 1.80~1.36A Output Power (W): 15 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU15S-2 Input Voltage: 100~240 Output Voltage: 8~11 Output Current: 1.80~1.36A Output Power (W): 15 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU15SA-2 Input Voltage: 100~240 Output Voltage: 8~11 Output Current: 1.80~1.36A Output Power (W): 15 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU15BS-2 Input Voltage: 100~240 Output Voltage: 8~11 Output Current: 1.80~1.36A Output Power (W): 15 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU15U-3 Input Voltage: 100~240 Output Voltage: 11~13 Output Current: 1.36~1.15A Output Power (W): 15 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU15E-3 Input Voltage: 100~240 Output Voltage: 11~13 Output Current: 1.36~1.15A Output Power (W): 15 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU15S-3 Input Voltage: 100~240 Output Voltage: 11~13 Output Current: 1.36~1.15A Output Power (W): 15 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU15SA-3 Input Voltage: 100~240 Output Voltage: 11~13 Output Current: 1.36~1.15A Output Power (W): 15 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU15BS-3 Input Voltage: 100~240 Output Voltage: 11~13 Output Current: 1.36~1.15A Output Power (W): 15 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU15U-4 Input Voltage: 100~240 Output Voltage: 13~16 Output Current: 1.15~0.94A Output Power (W): 15 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU15E-4 Input Voltage: 100~240 Output Voltage: 13~16 Output Current: 1.15~0.94A Output Power (W): 15 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU15S-4 Input Voltage: 100~240 Output Voltage: 13~16 Output Current: 1.15~0.94A Output Power (W): 15 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU15SA-4 Input Voltage: 100~240 Output Voltage: 13~16 Output Current: 1.15~0.94A Output Power (W): 15 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU15BS-4 Input Voltage: 100~240 Output Voltage: 13~16 Output Current: 1.15~0.94A Output Power (W): 15 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU15U-5 Input Voltage: 100~240 Output Voltage: 16~21 Output Current: 0.94~0.72A Output Power (W): 15 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU15E-5 Input Voltage: 100~240 Output Voltage: 16~21 Output Current: 0.94~0.72A Output Power (W): 15 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU15S-5 Input Voltage: 100~240 Output Voltage: 16~21 Output Current: 0.94~0.72A Output Power (W): 15 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU15SA-5 Input Voltage: 100~240 Output Voltage: 16~21 Output Current: 0.94~0.72A Output Power (W): 15 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU15BS-5 Input Voltage: 100~240 Output Voltage: 16~21 Output Current: 0.94~0.72A Output Power (W): 15 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU15U-6 Input Voltage: 100~240 Output Voltage: 21~27 Output Current: 0.72~0.55A Output Power (W): 15 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU15E-6 Input Voltage: 100~240 Output Voltage: 21~27 Output Current: 0.72~0.55A Output Power (W): 15 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU15S-6 Input Voltage: 100~240 Output Voltage: 21~27 Output Current: 0.72~0.55A Output Power (W): 15 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU15SA-6 Input Voltage: 100~240 Output Voltage: 21~27 Output Current: 0.72~0.55A Output Power (W): 15 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU15BS-6 Input Voltage: 100~240 Output Voltage: 21~27 Output Current: 0.72~0.55A Output Power (W): 15 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU15U-7 Input Voltage: 100~240 Output Voltage: 27~33 Output Current: 0.55~0.45A Output Power (W): 15 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU15E-7 Input Voltage: 100~240 Output Voltage: 27~33 Output Current: 0.55~0.45A Output Power (W): 15 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU15S-7 Input Voltage: 100~240 Output Voltage: 27~33 Output Current: 0.55~0.45A Output Power (W): 15 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU15SA-7 Input Voltage: 100~240 Output Voltage: 27~33 Output Current: 0.55~0.45A Output Power (W): 15 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU15BS-7 Input Voltage: 100~240 Output Voltage: 27~33 Output Current: 0.55~0.45A Output Power (W): 15 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU15U-8 Input Voltage: 100~240 Output Voltage: 33~48 Output Current: 0.45~0.31A Output Power (W): 15 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU15E-8 Input Voltage: 100~240 Output Voltage: 33~48 Output Current: 0.45~0.31A Output Power (W): 15 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU15S-8 Input Voltage: 100~240 Output Voltage: 33~48 Output Current: 0.45~0.31A Output Power (W): 15 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU15SA-8 Input Voltage: 100~240 Output Voltage: 33~48 Output Current: 0.45~0.31A Output Power (W): 15 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU15BS-8 Input Voltage: 100~240 Output Voltage: 33~48 Output Current: 0.45~0.31A Output Power (W): 15 No. Outputs: S Case: Wall Mount Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 100~240
Input Frequency: 50~60Hz
Output
Output Voltage: 5~6, 6~8, 8~11, 11~13, 13~16, 16~21, 21~27, 27~33, 33~48
Output Current: 2.4~2A, 2~1.5A, 1.80~1.36, 1.36~1.15A, 1.15~0.94A, 0.94~0.72A, 0.72~0.55A, 0.55~0.45A, 0.45~0.31A
Output Power (Watts): 12, 15
Short Circuit Protection: Automatic Recovery
Over Voltage Protection: Protected by Zener Diode, 110-140%
General
Efficiency: Up to 84.13%
Environmental
Operating Temperature: 0 to 40°C
Storage Temperature: -40 to 85°C
Physical
Weight: 2.47~3.53oz (70~100g)

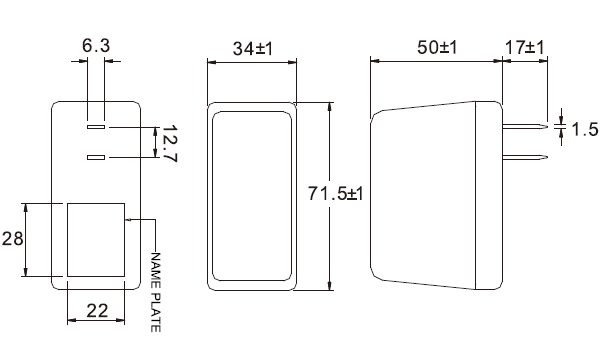

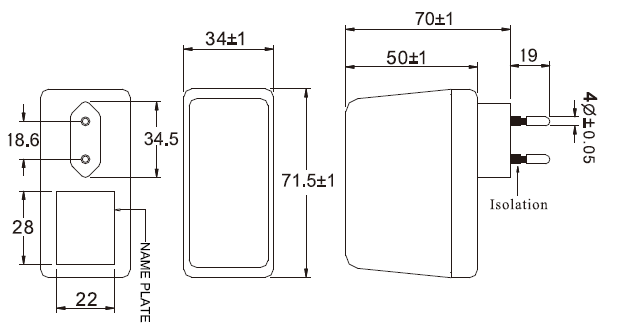

Dimensions: U Type and E Type Models: 2.81" x 1.34" x 1.97"

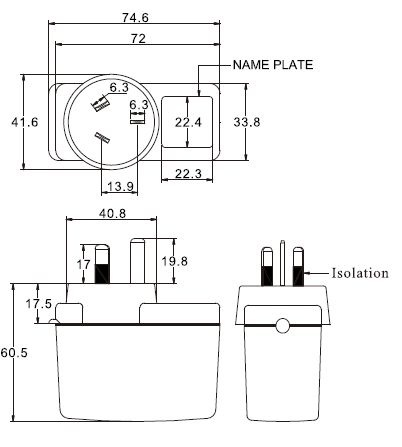

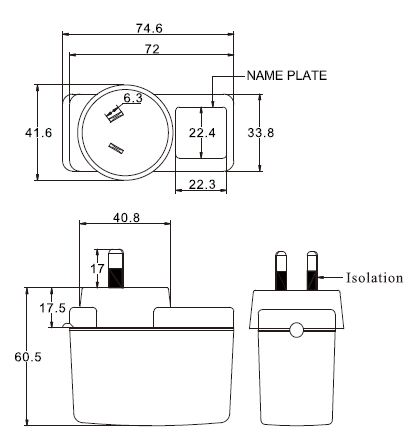

S Type and SA Type Models: 2.94" x 1.64" x 1.69"

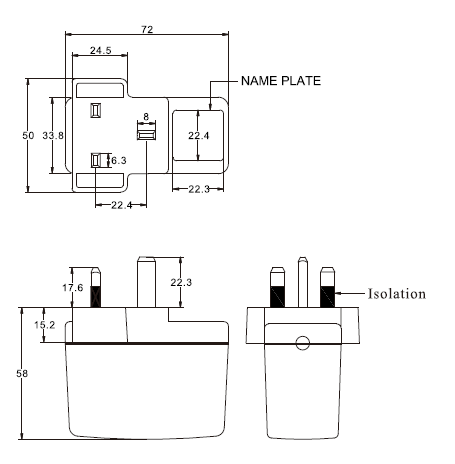

BS Type Model: 2.83" x 1.97" x 1.69"
Notes & safety
Notes: (1) “x” in model name indicates the plug type. “U”= U type=American Plug, “E”= E Type=European plug, “S”= S Type= 3-Pin Australian plug, “SA”= SA Type= 2-Pin Australian type, and “BS”= UK type= UK Plug.
(2) Average efficiency: Averages the efficiency at 25, 50, 75, and 100% if max. rated output current.
(3) Recovering to 1% of final value within 500uS after a 25% step load change.
(4) Standard Output Cable:
5~13V: UL1185, 18AWG, 4FT
13~48V: UL1185, 20AWG, 6FT
Safety Approvals: UL60950-1; CSA C22.2, EN60950-1, IEC60950-1
Energy Star Compliance: Level VI
